Alloy Steel Gr 5 Forged Fittings Manufacturer Supplier & Exporter in Abu Dhabi, UAE

Alloy Steel Forged Fittings Price in UAE, Alloy Steel Forged Fittings Manufacturer in Dubai, UAE.

Dedicated to excellence, our company proudly presents an extensive selection of Alloy Steel Gr 5 Forged Fittings carefully sourced from renowned suppliers distinguished for their expertise in crafting high-quality alloy steel components. These fittings serve as indispensable elements in a wide range of applications, offering a diverse array of sizes, configurations, and specifications tailored precisely to meet the varied needs of our esteemed clientele. Embraced across industries such as petrochemicals and power generation, our premium Alloy Steel Gr 5 Forged Fittings are esteemed for their exceptional durability and reliability. Crafted with precision using advanced alloy blends, these fittings undergo rigorous forging processes to ensure superior strength and performance, guaranteeing steadfast functionality even in the most challenging operational conditions.

Alloy Steel Gr 5 Forged Fittings Specifications

Specifications : ASTM A182 / ASME SA182

Dimensions : ANSI/ASME B16.11 & BS3799, etc.

Size : 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded)

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.

Mechanical Properties of Alloy Steel Gr 5 Forged Fittings

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min
Alloy Steel Gr 5	275	485	20

Alloy Steel Gr 5 Forged Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo
Alloy Steel Gr 5	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65

Chrome Moly UNS K41545 Forged Elbow Exporter In UAE, ASTM A182 Alloy Steel Gr 5 Forged Fittings Manufacturer In Dubai, UAE.

Top Alloy Steel Gr 5 Forged Fittings Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These Alloy Steel Gr 5 Forged Fittings as per DIN, ISO, JIS or ANSI Standard.

Get the best price from Alloy Steel Gr 5 Forged Fittings manufacturers & stockist in UAE, check Alloy Steel Gr 5 Forged Fitings price per kg in Dubai

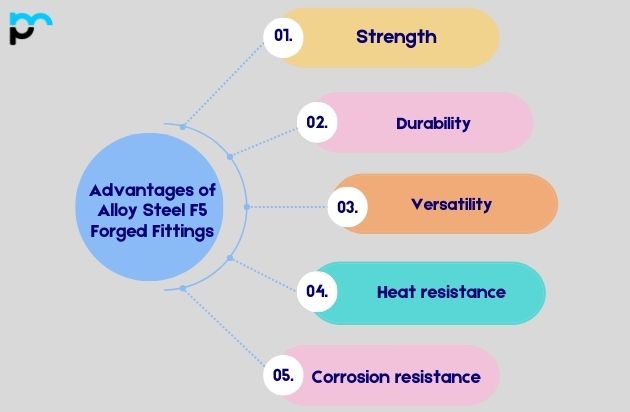

Advantages of Alloy Steel Gr 5 Forged Fittings

High strength: Alloy steel Gr 5 lattice fittings have excellent strength characteristics, making them suitable for applications where high-pressure and high-temperature conditions are common. They can withstand heavy loads and stresses without wear or failure.
Durability: Due to their durability and corrosion-resistant construction, alloy steel Gr 5 mesh fittings are extremely durable and have a longer service life than other materials. This durability results in lower maintenance costs and lead times.
Versatility: Alloy steel Gr 5 lattice fittings are versatile and can be used in various applications. They come in various shapes and sizes, making them suitable for various piping systems and needs.
Heat resistance: Fittings made of alloy steel Gr 5 can retain their mechanical properties at high temperatures, making them suitable for use in industries such as oil and gas, petrochemical and power generation, where temperatures are high abundantly
Corrosion resistance: Alloy steel Gr 5 contains elements such as chromium, which enhances its corrosion resistance. This makes it ideal for use in marine environments or chemical plants where corrosion is a concern.

Types of Alloy Steel Gr 5 Forged Fittings

ASTM A182 Alloy Steel Gr 5 Forged Fittings Price In UAE, Alloy Steel 5Cr-1/2Mo Forged Pipe Cap Supplier in Dubai, UAE.

Alloy Steel Gr 5 Forged Fittings Uses

Application Industry

Alloy Steel Gr 5 Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Automotive Industry

Construction Sector

Aerospace Applications

Oil and Gas Industry

Oil and Gas Industry: These fittings are widely used in the oil and gas industry in applications such as pipelines, refineries, petrochemical plants, etc. They offer high strength and corrosion resistance, making them suitable for handling harsh environmental conditions and corrosive fluids.
Automotive: In the automotive industry, these materials are used to make products such as exhaust pipes, engine parts and transmission parts. The product’s strength and durability contribute to vehicle systems’ performance and reliability.
Aerospace: Alloy steel Gr 5 lattice fittings find applications in the aerospace industry to manufacture aircraft components and hydraulic systems. Their high strength wei, weight, and fatigue resistance make them suitable for aerospace applications.
Chemical Controls: Chemical plants use these products to deal with corrosive chemicals and acids. The alloy system provides corrosion resistance, ensuring the integrity and safety of piping systems.
Power applications: Alloy steel Gr 5 forged fittings are used in electrical equipment for steam lines, boiler fittings and turbine components. Their ability to withstand high temperatures and pressures makes them ideal for such harsh environments.

How to Choose the Right Alloy Steel Gr 5 Forged Fittings

Materials: Understand the properties of alloy steel Gr 5, including its strength, corrosion resistance and heat resistance. Alloy steel Gr 5 is known for its excellent corrosion resistance and high tensile strength, making it suitable for high-pressure and high-temperature applications.
Standards Compliance: Ensure alloy steel Gr 5 mesh fittings comply with relevant industry standards such as ASTM, ASME, ANSI, and API. Compliance with the standards ensures the quality and reliability of the inputs.
Size and number: Consider the size and number of mesh fittings required for your piping system. Make sure the fittings are easily available in the sizes and configurations required in your system.
Application Requirements: List the specific requirements of your application, including pressure levels, temperature range, and environmental conditions. Check that alloy steel Gr 5 mesh fittings meet or exceed these requirements.

Are Alloy Steel Gr 5 Forged Fittings Susceptible to galvanic corrosion?

Alloy steel Gr 5 forged fittings may be susceptible to galvanic corrosion when in contact with dissimilar metals in electrolyte environments. Proper insulation or selection of compatible materials can mitigate this risk, ensuring long-term integrity and performance of the fittings in diverse applications.

FAQ (Frequently Asked Questions)

Can Alloy steel Gr 5 Forged Fittings be recycled after use?

Yes, alloy steel F5 forged fittings can be recycled after use. The fittings are typically melted down and reprocessed to create new alloy steel products, contributing to the circular economy and reducing the need for raw materials extraction, making it an environmentally sustainable option for construction and industrial applications.

Are alloy steel Gr 5 Forged Fittings susceptible to corrosion?

Alloy steel F5 forged fittings are generally resistant to corrosion, especially in high-temperature and high-pressure environments. However, they may still corrode under certain conditions, such as exposure to aggressive chemicals or corrosive atmospheres. Proper maintenance and material selection can mitigate corrosion risks, ensuring long-term performance.

How do I select the right alloy steel Gr 5 Forged Fittings for my application?

Select alloy steel F5 forged fittings by considering factors such as application requirements, material properties, size, standards compliance, manufacturing quality, corrosion resistance, pressure rating, temperature resistance, compatibility, and budget. Ensure fittings meet specific needs and adhere to industry standards for optimal performance and reliability.
