Home > Carbon Steel > Carbon Steel Stud Bolts
| Specifications | : | ASTM A 307 ASME SA 307 / ASTM A 563 ASME SA 563 |
| Standard | : | DIN, ASTM, BS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Type | : | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |
| Element | Carbon, max | Manganese, max | Phosphorus, max | Sulfur, max |
| Grade A | 0.29 % | 1.20 % | 0.04 % | 0.15 % |
| Grade B | 0.29 % | 1.20 % | 0.04 % | 0.05 % |
| Grade | Tensile, ksi | Yield, min, ksi | Elong %, min |
|---|---|---|---|
| A | 60 min | — | 18 |
| B | 60 – 100 | — | 18 |
| C* | 58 – 80 | 36 | 23 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Carbon Steel Stud Bolts as per DIN, ISO, JIS or ANSI Standard.

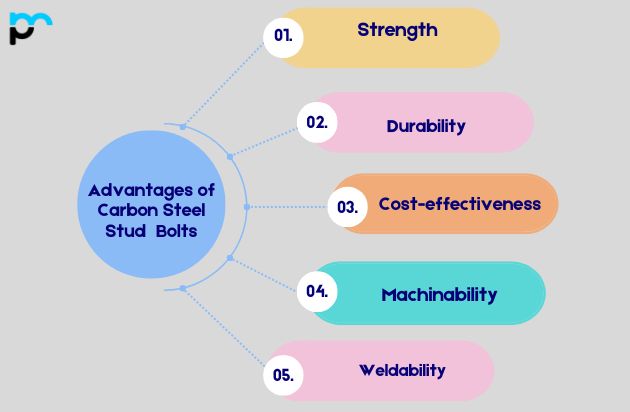

Strength: Carbon steel stud bolts provide high tensile strength, making them suitable for heavy-duty applications where strong connections are necessary.
Durability: Carbon steel is known for its durability and ability to withstand harsh environments, including exposure to moisture, chemicals, and high temperatures, without significant degradation.
Cost-effectiveness: Carbon steel is generally more affordable than other materials like stainless steel or exotic alloys, making carbon steel stud bolts a cost-effective option for many projects.
Machinability: Carbon steel is relatively easy to machine, allowing for precise manufacturing of stud bolts to meet specific requirements and tolerances.
Weldability: Carbon steel stud bolts can be welded easily, enabling them to be integrated seamlessly into welded assemblies, providing additional structural integrity.
Carbon Steel Stud Bolts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Construction: Carbon steel stud bolts are extensively used in construction for joining structural components such as steel beams, columns, and trusses. They provide reliable connections that are crucial for ensuring the integrity and stability of buildings and infrastructure.
Oil and Gas Industry: In the oil and gas sector, carbon steel stud bolts are utilized in pipelines, refineries, petrochemical plants, and offshore platforms. They are essential for assembling flanges, valves, and other equipment, providing secure joints that can withstand high pressure and temperature conditions.
Power Generation: Carbon steel stud bolts play a vital role in power generation facilities, including thermal power plants, nuclear power plants, and renewable energy installations. They are used for fastening turbine components, boiler structures, and piping systems, ensuring safe and reliable operation.
Understand the Application Requirements: Start by thoroughly understanding the application where the stud bolts will be used. Consider factors such as load capacity, environmental conditions (temperature, humidity, corrosion potential), vibration levels, and any regulatory standards or specifications that must be met.
Determine Bolt Size and Type: Identify the required bolt size, length, thread size, and thread pitch based on the application’s demands and the components being connected. Choose between full thread or partial thread bolts depending on the joint design and load distribution requirements.
Select Bolt Grade: Carbon steel stud bolts are available in various grades, each offering different levels of strength and hardness. Common grades include ASTM A193 Grade B7, ASTM A307, and ASTM A449. Choose a grade that provides sufficient strength for the intended application while considering factors like tensile strength, yield strength, and impact resistance.
