Home > Copper Nickel > Copper Nickel 90/10 Pipe Fittings
Specifications : ASTM B122, B171, B466, B467
Standard : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size : 1/2″ to 24″ NB to 24″NB in Sch 10S, 40S, 80S, 160s, XXS
SCH :SCH 10, SCH20, SCH30, SCH40
Type : Seamless / Welded / Fabricated
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Copper Nickel 90/10 Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

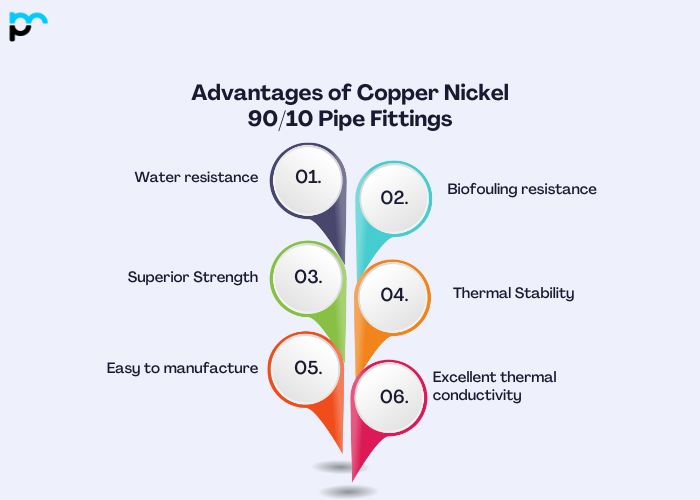

Water resistance: Copper Nickel 90/10 contains a significant amount of copper, which gives it excellent corrosion resistance in a variety of environments, including seawater. This makes it ideal for marine applications where corrosion is a concern. . .
Biofouling resistance: The resistance of a composite to biofouling (surface accumulation of microorganisms, algae, and other aquatic organisms) is particularly useful in marine environments, reduces maintenance requirements, and extends the life of inserts.
Superior Strength: Copper Nickel retains excellent mechanical properties even at temperatures of 90/10, ensuring structural integrity and reliability under extreme conditions.
Thermal Stability: The alloy exhibits excellent thermal stability, making it suitable for both high and low-temperature applications without compromising performance or durability
Easy to manufacture: Copper Nickel 90/10 is extremely easy to manufacture, weld and fabricate, enabling cost-effective manufacturing and custom designs to meet specific project requirements.
Copper Nickel 90/10 Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Marine applications: Copper-nickel 90/10 inserts are highly resistant to seawater corrosion, making them ideal for marine environments. They are commonly used in shipbuilding, offshore platforms, and desalination plants.
Heat exchanger: The excellent thermal conductivity of 90/10 copper nickel makes it suitable for heat exchangers. These materials are used in HVAC systems, refrigeration units and industrial heat exchangers.
Oil and Gas Industry: In the oil and gas industry, copper-nickel 90/10 fittings are used in pipelines, offshore rigs and processing facilities where corrosion resistance and wear are essential
Desalination Mechanisms: Copper Nickel 90/10 products are widely used in desalination mechanisms for tank systems, heat exchangers, and other critical applications due to their resistance to seawater
Power Generation: It is also used in power plants for condenser and heat exchanger tubes and in pipelines for conventional nuclear power plants
Chemical performance: Copper Nickel 90/10 fittings are resistant to a variety of chemical corrosion, making them suitable for use in the chemical industry for piping systems, valves and fittings
Compatibility: Copper Nickel 90/10 is a versatile alloy known for its excellent resistance to marine corrosion and bio-odor. Ensure the fittings you choose are made of 90/10 copper-nickel to match your piping system.
Operating conditions: Consider the temperature, pressure, and environmental conditions to which the fitting will be exposed. Copper nickel 90/10 has excellent mechanical properties and can withstand various temperatures and pressures. Still, it is important to choose materials that are appropriate for your specific operating conditions.
Size and thickness: Choose fittings that match the thickness and thickness of your piping system. Copper nickel 90/10 pipe fittings are available in various sizes and configurations, such as elbows, tees, reducers, couplings, and flanges. Make sure the fittings you choose match your system’s pipe size and configuration.
Corrosion Resistance: One of the main advantages of Copper Nickel 90/10 is its exceptional corrosion resistance, especially in marine environments. Ensure that fittings are made of high-quality copper nickel 90/10 alloy for long-term corrosion resistance and minimal maintenance.
Pressure: Check the pressure of the fittings to ensure that they can withstand the maximum pressure expected in your system without failure or leakage. Copper nickel 90/10 inserts generally have good pressure retention, but verifying that they meet your specific needs is important.
