ER308l Welding Wire Manufacturer Supplier & Exporter in Dubai, UAE

ER308l Welding Wire in Abu Dhabi, ER308l Filler Welding Wire Stockist, ER308l Inert Gas Welding Wire in Dubai, UAE.

ER308L Welding Wire is a versatile filler metal specifically designed for welding austenitic stainless steel, such as 304L. Known for its excellent corrosion resistance and low carbon content, ER308L ensures strong and durable welds with minimal risk of intergranular corrosion. It is widely used in applications requiring welding accuracy and quality, including food processing, pharmaceutical, and construction applications, where cleanliness and aesthetic integrity are important.

ER308l Welding Wire Chemical Composition

Standard：

AWS A 5.9

YB/T5092

Chemical Composition %

Grade

ER308l

≤0.08

1.0 – 2.5

0.3 – 0.65

19.5 – 22

9 – 11

≤0.03

≤0.75

ER308l Welding Wire Welding Wire Specifications

Type	Spool (MIG)				Tube (TIG)
Specification ( MM )	0.8、0.9、1.0、1.2、1.6、2.0				1.6、2.0、2.4、3.2、4.0、5.0
Package	S100/1kg S200/5kg S270,S300/15kg-20kg				5kg/box 10kg/box length :1000MM
Mechanical Properties	Tensile Strength Mpa				Elongation after fracture A（%）
	≥ 550				≥ 35
Diameter（MM）	0.8	1.0	1.2	1.6		2.0	2.5	3.2
Current（A）	70 ~ 150	100 ~ 200	140 ~ 220	50 ~ 100		100 ~ 200	200 ~ 300	300 ~ 400

ER308l Welding Wire in Abu Dhabi, Supplier of ER308l Welding Wire, ER308l Inert Gas Welding Wire in Dubai, UAE.

Top ER308l Welding Wire Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These ER308l Welding Wire as per DIN, ISO, JIS or ANSI Standard.

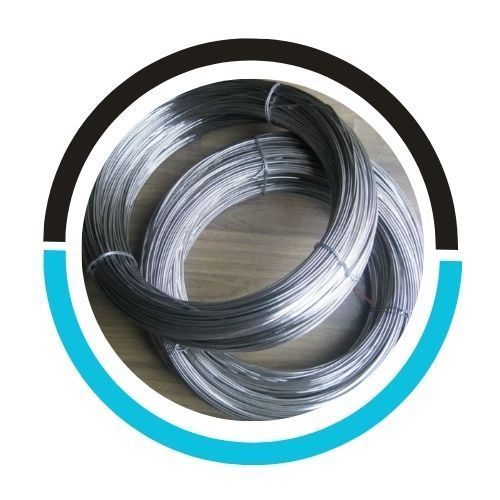

High Temperature ER308l Welding Wire in ABU Dhabi, ER308l Inert Gas Welding Wire Manufacturer & Stockist in Dubai, UAE.

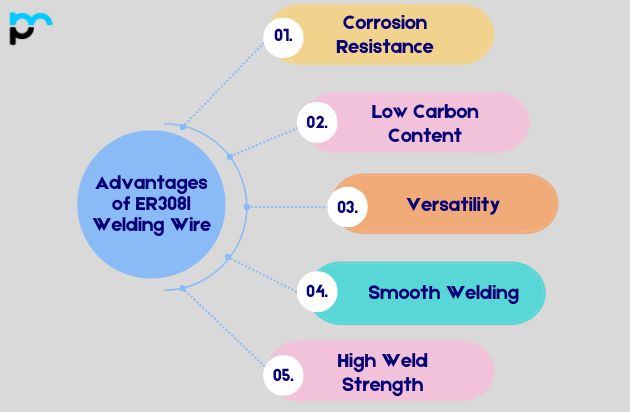

Advantages of ER308l Welding Wire

Corrosion Resistance: Provides excellent resistance to corrosion, especially in oxidizing environments, ensuring durable welds.
Low Carbon Content: Minimizes the risk of carbide precipitation and subsequent intergranular corrosion.
Versatility: Suitable for welding a variety of austenitic stainless steels, offering flexibility in application.
Smooth Welding: Ensures smooth and clean welds with minimal spatter, improving weld quality and appearance.
High Weld Strength: Delivers strong welds with good mechanical properties, maintaining structural integrity in diverse industrial settings.

Types of ER308l Welding Wire

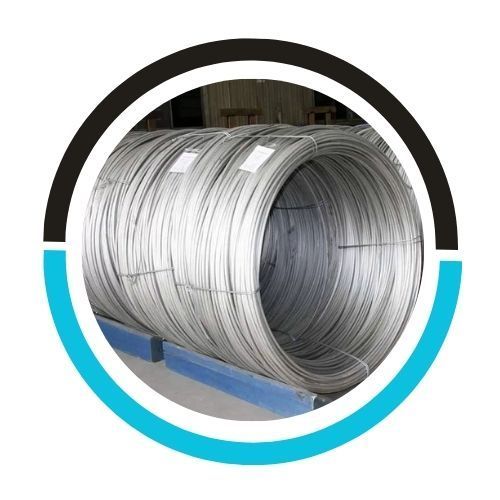

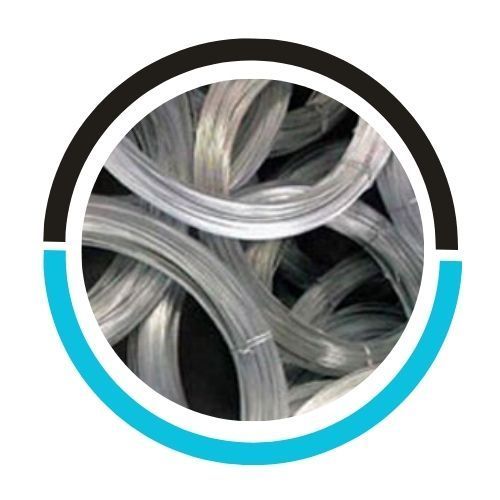

AWS Class ER308l Consumable Welding Wire, AWS Class ER308l Wire Exporter in Dubai, UAE.

Application Industry

ER308l Welding Wire applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Automotive Industry

Construction Sector

Aerospace Applications

Oil and Gas Industry

Are ER308l Welding Wire Susceptible to Galvanic Corrosion?

ER308L welding wire, being an austenitic stainless steel filler metal, generally exhibits good resistance to galvanic corrosion when paired with similar or compatible metals. However, like all metals, it can be susceptible to galvanic corrosion if used with dissimilar metals in the presence of an electrolyte. Proper material selection and design considerations are crucial to mitigate the risk of galvanic corrosion in welding applications.
