| Specifications | ASTM B574 / ASTM SB574 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 3000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy Bar | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy Bar | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Hastelloy Bar as per DIN, ISO, JIS or ANSI Standard.

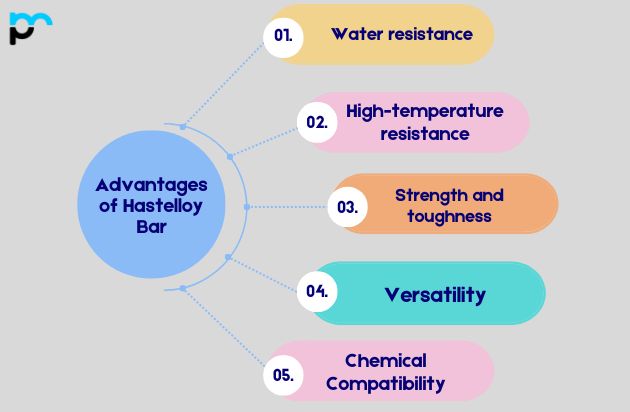

Water resistance: The fast alloy is known for its exceptional corrosion resistance in various environments under acidic, alkaline and salty conditions. This makes Hastelloy bars ideal for applications in medicine, pollution control and the marine environments we are surrounded by.
High-temperature resistance: Hastelloy Bars can withstand high temperatures and maintain their mechanical properties even at high temperatures. This makes them suitable for hot industrial applications such as aerospace, gas turbine engines and heat exchangers.
Strength and toughness: Hastelloy alloy exhibits superior strength and toughness, making Hastelloy bars strong and capable of withstanding heavy loads and mechanical stresses where structural integrity is critical, such as in space and automotive industries; this property is important.
Versatility: Hastelloy bars are easily machined, welded and produced in various sizes, incorporating design features. This flexibility makes them suitable for various roles in different industries.
Chemical Compatibility: Hastelloy compounds are compatible with various chemicals, including acids, bases and oxidizing agents. This broad chemical compatibility makes Hastelloy fibres suitable for complex medical applications where exposure to corrosive agents is common.
Hastelloy Bar applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical applications: Hastelloy Bars are widely used in chemical applications for valves, pumps, pipeline systems, reactors and other components where corrosive chemicals are used
Oil and Gas: Hastelloy strips are used for downhole tubing, piping, fittings and other equipment in areas where hydrogen sulfide and other corrosive substances are present in oil and gas extraction processing
Aerospace: Hastelloy bars are used in aerospace applications for components subject to high temperatures and environmental corrosion, such as turbine blades, combustion chambers and exhaust systems
Marine Engineering: Hastelloy strips are used in marine engineering for components such as marine pipelines, heat exchangers and marine engine components due to their resistance to saltwater
Chemical applications: In the pharmaceutical industry, Hastelloy strips find applications in reactors, containers, storage tanks and other equipment where they resist corrosion from aggressive chemicals used in the industry
Power generation: Hastelloy bars are used in power generation for applications such as gas turbine components, heat exchangers and boiler systems that require corrosion resistance and high-temperature operation
Pulp and Paper Industry: Hastelloy strips are used in the pulp and paper industry to manufacture equipment such as digesters, bleach towers, and piping systems, which handle corrosive chemicals involved in paper production
Food and Beverage: Hastelloy strips can be used for equipment such as storage containers mixer piping systems in contact with acidic or caustic materials in food processing and beverage manufacturing
Identify your application requirements: Understand the environment in which the Hastelloy bar will be used. Consider temperature, pressure, corrosion resistance, and mechanical stress.
See Experts: If you are still determining the right type of Hastelloy bar for your application, consult with engineers or materials specialists with experience working with Hastelloy alloys. They can provide valuable insights and recommendations based on your specific needs.
Identify Hastelloy alloys: Hastelloy alloys come in various types, each designed for a specific application. Typical grades include Hastelloy C276, Hastelloy C22, Hastelloy B2
Consider shapes and sizes: Hastelloy bars come in various shapes and sizes, including round, rectangular, rectangular and rectangular. Consider the appropriate dimensions for your application, considering factors such as load-carrying capacity and machine capacity.
Check mechanical properties: Depending on your application, you may need to consider mechanical properties such as tensile strength, yield strength, and elongation. Select a Hastelloy bar with mechanical properties that meet the requirements of your application.
Check corrosion resistance: One of the major advantages of Hastelloy alloys is their exceptional corrosion resistance in harsh environments. Consider the specific corrosives of your application and choose a Hastelloy grade that provides the necessary resistance.
Review certifications and standards: Verify that the Hastelloy bar meets relevant industry standards and certifications, such as ASTM specifications
Yes, Hastelloy Bars are recyclable. Hastelloy is highly recyclable due to its composition, mainly nickel, chromium, and molybdenum. The recycling of Hastelloy bars helps conserve natural resources, reduce energy consumption, and reduce the environmental impact by reusing the material in the future in various applications.
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.625 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.625 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
