Inconel 617 Stud Bolts Manufacturer & Supplier in Dubai, UAE

ASTM B166 Nicrofer® 617 Stud Bolts Price In UAE, ASTM B168 Inconel 617 Bolts Supplier In UAE, Inconel 617® Hex Bolts Dealer In Dubai, Alloy 617 Industrial Bolts Stockists Manufacturer In Dubai, UAE.

Table of Contents

Inconel 617 Stud Bolts stand as stalwart threaded rods forged from the formidable Inconel 617 alloy, celebrated for its remarkable resilience against elevated temperatures and corrosive atmospheres. These fasteners serve as vital components in applications necessitating steadfast connections, including gas turbine engines, petrochemical processing, and high-temperature furnace constructions. Primarily comprised of nickel-chromium-cobalt-molybdenum alloy, Inconel 617 stud bolts exhibit exceptional resistance to both thermal degradation and chemical corrosion, making them indispensable in environments subject to extreme thermal cycling and aggressive chemical agents. Whether in aerospace propulsion or industrial refining, Inconel 617 stud bolts deliver unmatched reliability and longevity, ensuring steadfast performance even amid the most demanding operational environments.

Inconel 617 Stud Bolts Specifications

Standard ASTM B168, B166 / ASME SB168, SB166

Dimensions ANSI B18.2.1, DIN 931,DIN 933, ISO 4014, ISO 4017,BS 1768, BS1768, IFI 115

Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads

Type Cold Forged, Hot Forged, Bar Stock Machined, Bar Stock Milling

Size M02 to M160

Length 3 mm to 200 mm

Mechanical Properties of Copper Inconel 617 Bolts

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.1 g/cm31411 °C (2571 °F)Psi – 80,000 , MPa – 550Psi – 30,000 , MPa – 20530 %

Inconel 617 Stud Bolts Chemical Composition

CMnSSiCrMoNiCuTiAlBCoFe
0.05-0.151.0 Max0.015 Max1.0 Max20.0-24.08.0-10.044.5 Min0.5 Max0.6 Max0.8-1.50.006 Max10.0-15.03.0 Max

Top Inconel 617 Stud Bolts Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Inconel 617 Stud Bolts as per DIN, ISO, JIS or ANSI Standard.

Inconel 617 Stud Bolts Price In UAE, UNS N06617 Stud Bolts Exporter In Dubai, UAE.

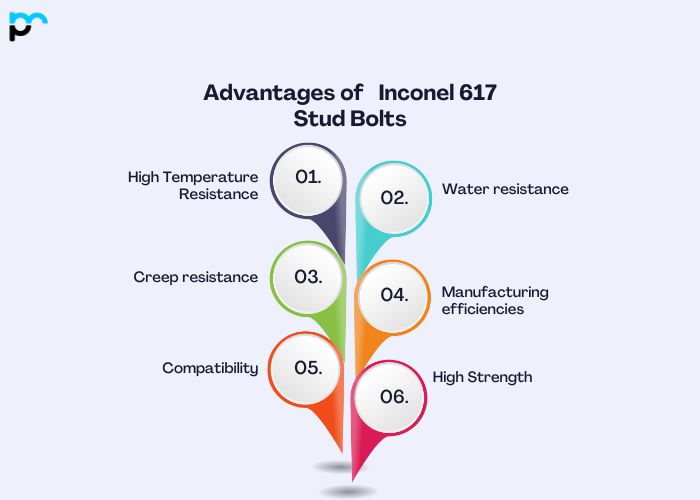

Advantages of Inconel 617 Stud Bolts

  • High Temperature Resistance: Inconel 617 has superior corrosion resistance and oxidation resistance, making it suitable for use in high-temperature environments, such as gas turbines, jet engines and nuclear reactors

  • Water resistance: It shows exceptional resistance to corrosion and oxidation in a variety of harsh environments, including acidic and alkaline conditions, making it ideal for use in chemical industry and marine applications

  • Creep resistance: Inconel 617 maintains its mechanical properties even at elevated temperatures for long periods, and resists deformation under load, which is important for materials subjected to high stresses for long periods

  • Manufacturing efficiencies: Despite its high strength and low thermal corrosion resistance, Inconel 617 is relatively easy to manufacture, allowing stud bolts and hardened components to be manufactured using a variety of manufacturing processes such as forging and machining so

  • Compatibility: Compatible with a wide range of metals and alloys, allowing it to be used in a variety of industrial applications where compatibility with other materials is required

  • High Strength: Inconel 617 provides superior tensile and yield strength, ensuring structural integrity and reliability under demanding operating conditions.

Types of Inconel Stud Bolts

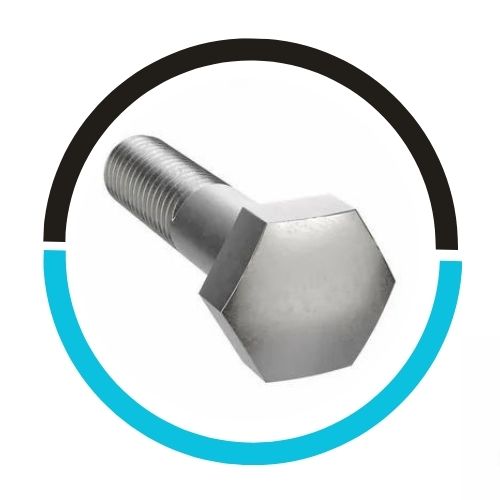

Inconel 617 Stud Bolt

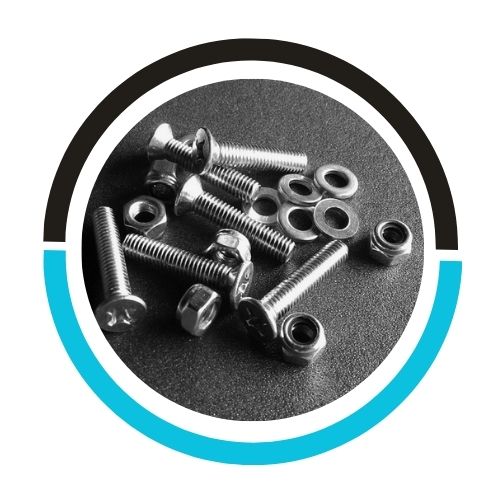

Inconel Alloy 617 StudBolt

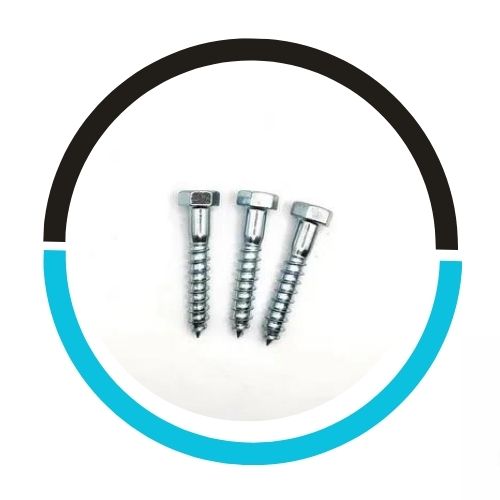

Alloy 617 Hex Head Bolts

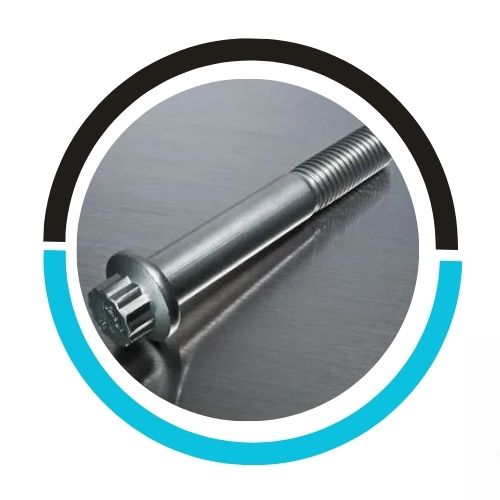

Inconel Alloy 617 Threaded Rod

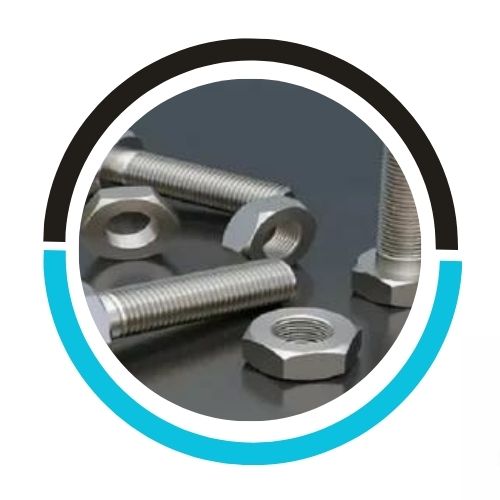

Inconel 617 Socket Cap Screw

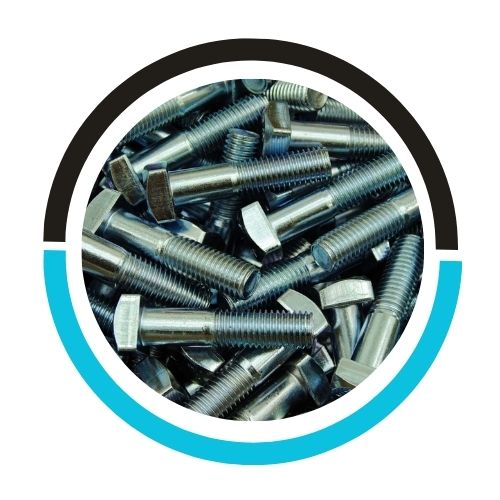

Inconel Alloy 617 Tie Bar

617 Inconel Stud Bolts Price In UAE, Inconel 617 Structural Stud Bolt Suppliers In Dubai, Nickel Alloy UNS N06617 Square Stud Bolts Manufacturer In UAE.

Inconel 617 Stud Bolts Uses

Application Industry

Inconel 617 Stud Bolts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Marine Applications

Chemical Processing

Piping Systems

Heat Exchangers

  • Aerospace Applications: Inconel 617 stud bolts are used in the aerospace industry, especially in components with high temperatures and hot environments, such as gas turbine engines, exhaust systems and rocket propulsion systems.

  • Power Generation: Used in power plants, especially in parts such as boiler tubes, steam turbines, heat exchangers, etc., where they have to withstand high temperatures, pressures and chemical complexes edge of hot decay

  • Petrochemical Industry: Inconel 617 stud bolts find applications in the petrochemical industry for reactors, furnaces, piping systems and other equipment subjected to high temperatures and harsh chemicals.

  • Chemical: Used in chemical industries for products such as reaction vessels, distillation columns and valves, where corrosion resistance from acids, alkalis and other corrosive agents is required

  • Heating Equipment: Inconel 617 stud bolts are used for heating furnaces, where they can maintain their mechanical properties and resistance to corrosion at high temperatures for long periods

How to Choose the Right Inconel 617 Stud Bolts

  • Understand operational requirements: Determine operating conditions such as temperature, pressure, atmospheric corrosion, vibration, and load requirements. Inconel 617 is known for its excellent high-temperature strength and resistance to oxidation and carburization, making it suitable for high-temperature applications such as gas turbine components, heat treatments, and industrial furnaces. Suitable.

  • Material Compatibility: Ensure that the Inconel 617 is compatible with the materials in your application. For improper metal contact, consider processes such as galvanic corrosion.

  • Size and Dimensions: Select the correct size and number of stud bolts based on design requirements, including diameter, length, thread pitch, and thread length. Ensure that selected studs meet the solution’s required strength and load-bearing capacity.

  • Thread type: Based on your application requirements and compatibility with mating components, select the appropriate thread type (UNC, UNF, metric, etc.).

  • Corrosion Resistance: Determine the amount of corrosion resistance required for your application. Inconel 617 provides excellent corrosion and oxidation resistance in high-temperature environments, but it is important to ensure that it meets your application’s specific corrosion resistance requirements.

Are Inconel 617 Stud Bolts recyclable?

Yes, Inconel 617 stud bolts are recyclable. Inconel alloys, including 617, are composed mainly of nickel, chromium, and iron, which are all recyclable materials. Recycling these alloys reduces the need for new raw materials and helps conserve resources while minimizing environmental impact.

FAQ (Frequently Asked Questions)

Can Inconel 617 stud bolts be welded?

Yes, Inconel 617 stud bolts can be welded using conventional welding techniques such as gas tungsten arc welding (GTAW/TIG), gas metal arc welding (GMAW/MIG), and shielded metal arc welding (SMAW). However, special precautions are necessary due to the alloy’s high-temperature strength and susceptibility to hot cracking.

What are the considerations for installing Inconel 617 Stud Bolts?

When installing Inconel 617 stud bolts, consider the high-temperature operating environment, ensuring proper torque values, alignment, and thread engagement. Use lubricants compatible with high-temperature alloys to prevent galling. Inspect for corrosion and ensure compatibility with mating components for optimal performance and longevity.

Are Inconel 617 stud bolts suitable for hygienic and sanitary applications?

Inconel 617 stud bolts are not typically suitable for hygienic and sanitary applications due to their high-temperature strength and resistance to corrosion in harsh environments. Stainless steel or other corrosion-resistant alloys are preferred for applications requiring hygiene and sanitation standards.
