Inconel 718 Pipe Fittings

Home > Inconel > Inconel 718 Pipe Fittings

Inconel 718 Pipe Fittings Manufacturers & Suppliers in Dubai, UAE.

Inconel 718 Pipe Fittings Suppliers In UAE, Inconel 718 Butt Weld Fittings Exporter In UAE, Inconel 718 Forged Fittings Best Price In Dubai, UAE.

Table of Contents

Embark on a journey of rare excellence with our exceptional selection of Inconel 718 Pipe Fittings, carefully custom-built to elevate your industrial ventures to unprecedented levels. Step into a realm of superior quality and dependability as you explore our carefully tailored fittings, designed to meet the diverse requirements of modern industries. Our product range showcases meticulously engineered solutions that not only meet but exceed the most rigorous standards for durability and resistance to corrosion. As a trusted supplier, we are dedicated to surpassing your expectations by providing customizable options, competitive pricing, and swift delivery. Whether for aerospace, chemical processing, or high-temperature applications, our Inconel 718 Pipe Fittings serve as a testament to our unwavering commitment to perfection, ensuring unmatched performance and reliability for your projects. Rely on our expertise to bolster your endeavors with steadfast solutions that redefine excellence and innovation.

Inconel 718 Pipe Fittings Specifications

ASTM SpecificationAMS 5590, AMS 5589
International SpecificationWERKSTOFF Nr 2.4668 , UNS N07718
Size of Seamless PipeWall thickness.: 0.05- 20 milimeter, 4 – 219 milimeter
Size of Welded Pipe5.0 to 1219.02 milimeter
size of  EFW Pipe5.0 to 1219.02 milimeter
Seamless Tube Size3.35 milimeter To 101.6 milimeter OD
 Welded Tube Size6.35 milimeter To 152 milimeter OD
Bwg & Swg18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg.
Tubing wall thickness0.020″ –0.220″, (custom wall thicknesses available)
Pipe ScheduleSCH20, XS, STD, XXS, SCH60, SCH140, SCH80, SCH80, SCH5, SCH40S, SCH40, SCH120, SCH10S, SCH10, SCH30, SCH160

Mechanical Properties of Inconel 718 Pipe Fittings

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Inconel 7188.2  g/cm31350 °C (2460 °F)Psi – 1,35,000, MPa – 930Psi – 75,000, MPa – 48245 %

Inconel 718 Pipe Fittings Chemical Composition

Inconel 7180.08 max0.35 max0.35 max0.015 max0.015 max50 – 5517 – 210.006 max2.8 – 3.31.0 max0.2 – 0.80.65 – 1.154.75 – 5.50.3 max

Top Inconel 718 Pipe Fittings Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Inconel 718 Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

ASTM B366 Alloy 718 Pipe Fittings Supplier In UAE, 718 Inconel Butt Weld Pipe Fittings Exporter In UAE, Inconel Alloy 718 Butt Weld Fittings Manufacturer In Dubai, UAE.

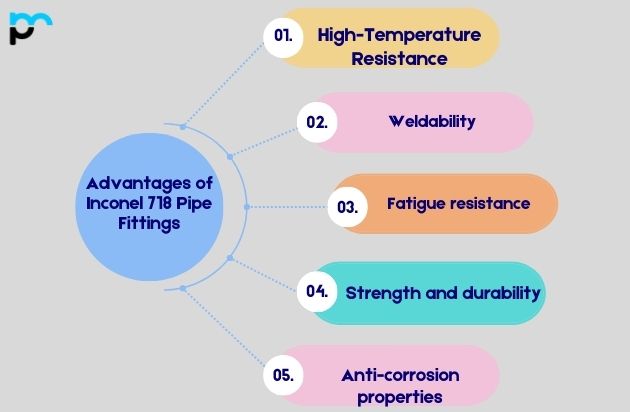

Advantages of Inconel 718 Pipe Fittings

Advantages of Inconel 718 Pipe Fittings
  • High-Temperature Resistance: Inconel 718 exhibits excellent resistance to high temperatures, making it suitable for applications where piping is exposed to extreme temperature conditions, such as in aerospace and gas turbine engines

  • Weldability: Inconel 718 can be welded using conventional methods, making manufacturing and installing rugged pipes easy. This weldability also facilitates customization and ensures tight seals, reducing the risk of leakage.

  • Fatigue resistance: Inconel 718 fatigue resistance can withstand cyclic loading and thermal cycling without premature failure. This property is important in piping systems of industrial machinery, where the fitting exerts a common stress.

  • Strength and durability: Inconel 718 has superior tensile and yield strength, providing excellent mechanical properties. This strength and durability make it suitable for high-pressure and high-pressure applications, making it a reliable operator in harsh environments.

  • Anti-corrosion properties: These materials are highly resistant to corrosion and oxidation, and even in harsh environments such as medicinal plants and marine environments, these anti-corrosion properties provide wear in extended life and reduced maintenance costs.

Types of Inconel 718 Pipe Fittings

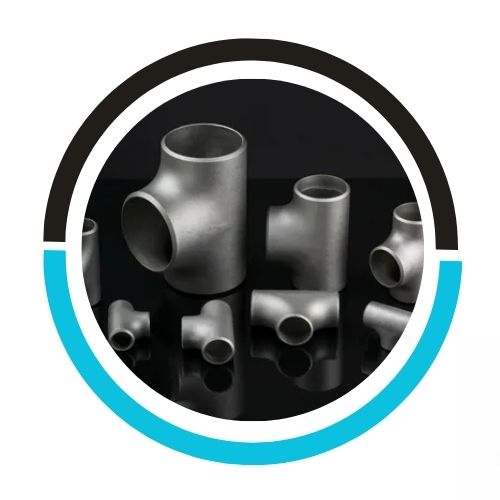

Inconel 718 Pipe Fittings in UAE
Inconel 718 Pipe Fittings

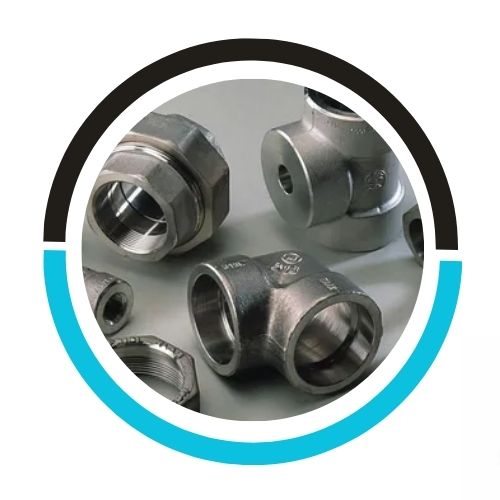

Inconel 718 Elbow in UAE
Inconel 718 Elbow

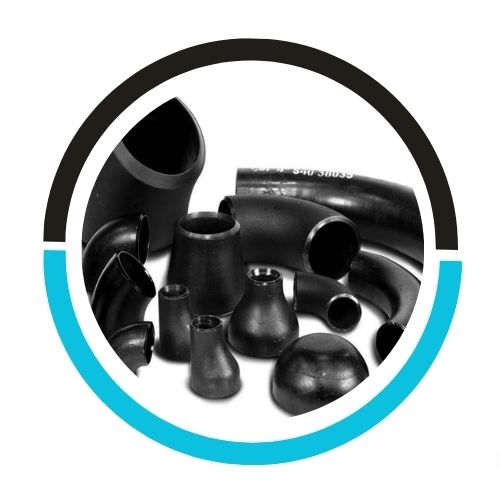

Inconel 718 Tee in UAE
Inconel 718 Tee

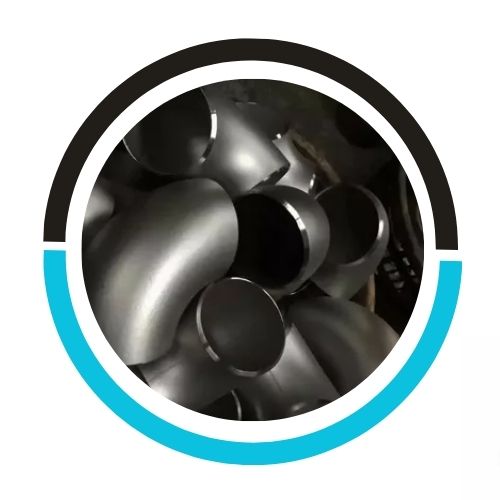

Inconel 718 Reducers in UAE
Inconel 718 Reducers

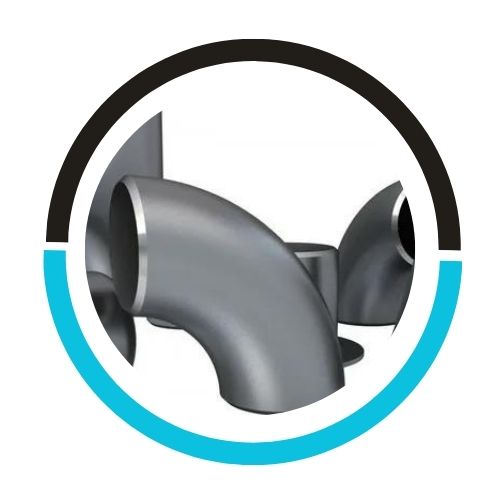

Inconel Alloy 718 Welded Pipe Fittings in UAE
Inconel Alloy 718 Welded Pipe Fittings

UNS N07718 Pipe Fittings Price In UAE, Nickel Alloy 718 Pipe Fittings Exporter In Dubai, Alloy 718 Industrial Pipe Fittings At Best Price In Dubai, UAE.

Inconel 718 Pipe Fittings Uses

Application Industry

Inconel 718 Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Automotive Industry

Petro Chemical Industry

Power Generation Industry

  • Aerospace Applications: Inconel 718 pipe fittings are widely used in aerospace applications due to their high strength, corrosion resistance and ability to withstand the extreme temperatures encountered in aircraft engines, gas turbines and exhaust systems

  • Marine Applications: Inconel 718 pipe fittings are used in marine applications such as offshore drilling, seawater desalination, and seawater installations where salt resistance is required, water corrosion and high-pressure

  • Power applications: Inconel 718 pipe fittings find applications in electrical equipment, particularly in applications such as heat exchangers, steam boilers, and turbine exhaust systems, where they are exposed to high temperatures and aggressive environments

  • Chemical applications: Inconel 718 pipe fittings are used in chemical plants where solvents are used at high temperatures and pressures. They are used in piping systems to handle acids, alkaline solutions, and other corrosive substances.

  • Oil and Gas Industry: Inconel 718 pipe fittings are used in the oil and gas industry for downhole equipment, wellhead components, and other components that require corrosion resistance, high pressure and temperature as it goes upwards

How to Choose the Right Inconel 718 Pipe Fittings

  • Material Grade: Make sure pipe fittings are made of high-quality Inconel 718 alloy. Different grades of Inconel 718 can have different devices, so choose the best grade for your application’s needs.

  • Corrosion Resistance: Determine your project’s corrosion resistance requirements, especially if it involves corrosive chemicals, seawater, or other aggressive environments. Confirm that Inconel 718 pipe fittings provide the correct corrosion for the specific conditions.

  • Prevailing Temperature: Consider the temperature of your application, including both intermittent and periodic high temperatures. Ensure the selected pipelines can withstand the temperatures without compromising their mechanical properties.

  • Pressure Rating: Record the maximum operating pressure of your system and select pipe fittings with pressure ratings higher than this value to ensure efficient and reliable operation.

  • Size and thickness: Choose a pipe fitting that matches the thickness and thickness of your piping system. Consider factors such as nominal pipe size (NPS), outside diameter (OD), wall thickness, and end connections (e.g., threaded, socket welded, or butt welded).

Are Inconel 718 Pipe Fittings recyclable?

Yes, Inconel 718 pipe fittings are recyclable. Inconel 718 is a nickel-chromium alloy known for its high strength and corrosion resistance, making it valuable in recycling. Recycling processes involve melting and reusing the alloy, contributing to sustainability and resource conservation in various industries.

FAQ (Frequently Asked Questions)

Can Inconel 718 Pipe Fittings be welded?

Yes, Inconel 718 pipe fittings can be welded using various methods such as gas tungsten arc welding (GTAW), shielded metal arc welding (SMAW), and electron beam welding (EBW). However, due to its high nickel content and complex metallurgical properties, special precautions and expertise are required to ensure proper welding and avoid cracking.

How do I ensure proper installation and maintenance of Inconel 718 Pipe Fittings?

Ensure proper installation and maintenance of Inconel 718 pipe fittings by following manufacturer guidelines, using compatible materials, and employing trained personnel for installation. Regular inspections, monitoring for corrosion, and implementing appropriate maintenance procedures, such as cleaning and lubrication, are crucial for ensuring longevity and optimal performance.

Can Inconel 718 Pipe Fittings be used for potable water applications?

Inconel 718 pipe fittings are not typically recommended for potable water applications due to potential concerns about nickel leaching and regulatory standards. Stainless steel or other materials approved for potable water use are preferred to ensure safety and compliance with drinking water quality regulations.
