Inconel 718 Sheets and Plates

Home > Inconel > Inconel 718 Sheets and Plates

Inconel 718 Sheets and Plates Manufacturer, Exporter & Supplier in Dubai, UAE

ASTM B670 Alloy 718 Plates Price In UAE, Inconel UNS N07718 Sheets Supplier In UAE, Inconel 718 Plates Manufacturer & Supplier In Dubai, UAE.

Inconel 718 Sheets and Plates represent the epitome of excellence in metallurgy, custom-built from the renowned nickel-based super alloy, Inconel 718. Renowned for its exceptional resistance to corrosion, oxidation, and extreme temperatures, this alloy stands as a pinnacle of reliability in the most demanding environments. Widely wrap across aerospace, automotive, and oil and gas industries, Inconel 718 Sheets and Plates ensure excellent performance and durability, making them essential for critical applications where strength and longevity are paramount.

Inconel 718 Sheets and Plates Specifications

Standards: ASTM, ASME and API

Specialize : Shim Sheet, Perforated Sheet, B. Q. Profile.

Size: 0.5 MM TO 200 MM WIDTH & 2500 MM TO 12500 MM LENGTH

Thickness: 1000 MM TO 2500 MM

Specifications : ASTM B670 / SB670

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Inconel 718 Sheets and Plates Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	–	50.00 – 55.00	17.00 – 21.00

Inconel 718 Plates Suppliers In UAE, 718 Inconel Sheets Price In Dubai, Inconel 718 Plates Exporter In UAE.

Inconel 718 Sheets and Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 482	45 %

Top Inconel 718 Sheets and Plates Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These Inconel 718 Sheets and Plates as per DIN, ISO, JIS or ANSI Standard.

Inconel 718 Sheet Thickness Price In UAE, Inconel 718 Sheet Suppliers In UAE, Inconel 718 Hot Rolled Plates Manufacturer In UAE,

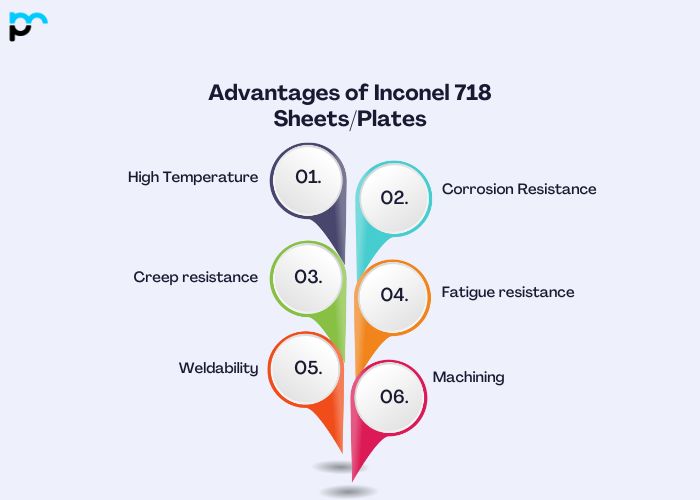

Advantages of Inconel 718 Sheets and Plates

High Temperature: Inconel 718 maintains its strength and integrity even at elevated temperatures, making it suitable for harsh applications such as aerospace and gas turbine engines
Corrosion Resistance: Exhibits outstanding resistance to corrosion, oxidation, chloride ion stress and corrosion cracking, making it ideal for use in harsh chemical and marine environments
Creep resistance: The alloy exhibits excellent resistance to creep deformation, allowing it to withstand high temperatures over long periods without significant thickness changes
Fatigue resistance: Inconel 718 has excellent fatigue resistance, which is important for materials subjected to cyclic loads in aerospace and automotive applications
Weldability: While Inconel 718 is a high-strength alloy, conventional welding techniques can easily be used for ease of manufacture and maintenance
Machining: While it can be difficult to machine, especially under harsh conditions, Inconel 718 can be machined with the right methods and tools, resulting in great flexibility in manufacturing in

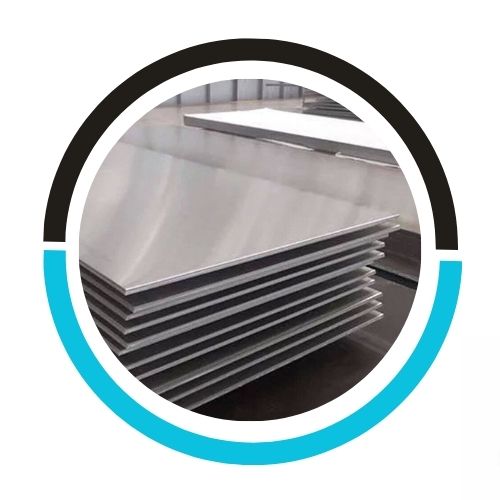

Types of Inconel Sheets and Plates

718 Inconel Shim Sheets Price In UAE, Incoloy 718 Plates Supplier In Dubai, UAE.

Inconel 718 Sheets and Plates Uses

Application Industry

Inconel 718 Sheets and Plates and plates are integral to many industrial applications and are renowned for their exceptional performance in demanding environments. Widely utilized in aerospace, chemical processing, marine engineering, and gas turbine components, these superalloys exhibit remarkable resistance to corrosion, oxidation, and high temperatures. Inconel sheets and plates provide unparalleled strength and toughness even at elevated temperatures, ensuring reliability and longevity in critical applications.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

Aerospace Products: Inconel 718 sheets and plates are widely used in the aerospace industry, including aircraft engine components such as turbine blades, turbine discs, and combustion chambers. Their high strength and corrosion resistance make them ideal for exposure to extreme conditions in the air and space environment.
Gas Turbines: Inconel 718 is used in gas turbine components such as turbine rotors and seals, where it provides excellent oxidation and corrosion resistance at high temperatures, as well as mechanical strength under high-pressure
Chemical Applications: Inconel 718 is used in chemical equipment, including reactors, vessels and pipeline systems, where resistance to chemical corrosion and high temperatures is critical to maintain operational integrity and longevity.
Nuclear reactors: Inconel 718 is used in nuclear reactor applications, providing excellent resistance to stress corrosion cracking and radiation damage, especially for materials with high radiation levels, corrosive atmospheres and high temperatures.
Oil and Gas Industry: Inconel 718 sheets and plates are used in oil and gas exploration and manufacturing equipment, such as downhole equipment, wellhead components and valves, where they stand up to extreme conditions, including high-pressure, corrosive and high-temperature edges

How to Choose the Right Inconel 718 Sheets and Plates

Understand Your Application Requirements:
- Determine the operating conditions such as temperature, pressure, corrosive environment, and mechanical stresses.
- Identify the specific properties required such as high temperature strength, corrosion resistance, oxidation resistance, or wear resistance.
Material Specifications:
- Check the material specifications and standards required for your application. Inconel 718 typically conforms to specifications such as ASTM B670 for sheets and ASTM B637 for plates.
Size and Dimensions:
- Determine the required size, thickness, and dimensions of the sheets or plates based on your project requirements.
Surface Finish:
- Decide on the required surface finish depending on the application. Some applications may require a smooth surface finish, while others may tolerate rougher finishes.
Quality and Certification:
- Ensure that the supplier provides quality certifications and documentation, such as material test reports (MTRs) and certificates of compliance, to guarantee the quality and authenticity of the material.

Are Inconel 718 Sheets and Plates suitable for hygienic and sanitary applications?

Inconel 718 Sheets and Plates may not be ideal for hygienic and sanitary applications due to their susceptibility to corrosion in certain environments. While they offer high strength and temperature resistance, their potential for contamination and difficulty in cleaning may pose challenges in maintaining strict hygiene standards.

Inconel DIN 2.4668 Chequered Plates Price In UAE, Alloy 718 Plates Exporter In Dubai, Inconel Alloy 718 Sheets Dealer In Dubai, UAE.

FAQ (Frequently Asked Questions)

Are Inconel 718 Sheets and Plates susceptible to galvanic corrosion?

Inconel 718 Sheets and Plates are resistant to galvanic corrosion due to their composition primarily of nickel and chromium, which form a protective oxide layer. However, in certain aggressive environments or coupled with dissimilar metals, galvanic corrosion may occur, though it’s generally less severe compared to other materials.

Are Inconel 718 Sheets and Plates suitable for cryogenic applications?

Inconel 718 Sheets and Plates are suitable for cryogenic applications due to their excellent mechanical properties at low temperatures. They maintain strength, ductility, and resistance to thermal cycling, making them ideal for cryogenic environments such as aerospace, where materials must endure extreme temperature variations without compromising performance.

Can Inconel 718 Sheet Plates be used for underground applications?

Inconel 718 Sheets and Plates can be used for underground applications due to their corrosion resistance and high strength. They withstand harsh underground conditions, including moisture, soil chemicals, and pressure variations. Their durability and resistance to corrosion make them suitable for pipelines, well casings, and other underground infrastructure in various industries.
