Inconel Coils Manufacturer and Supplier in Dubai, UAE

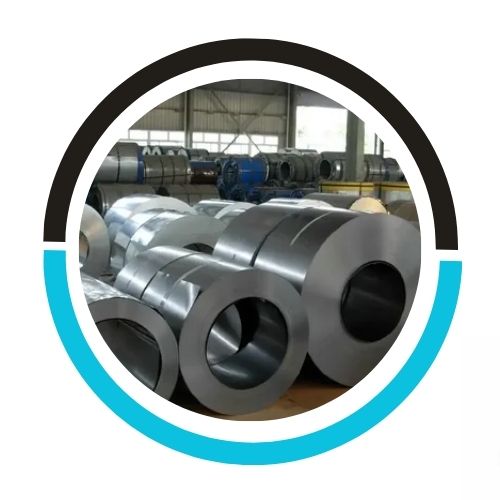

ASTM B168 Inconel 600 Coils, Inconel Alloy 600 Coils, Alloy 600 Coil, UNS N06600 Coils, Inconel 600 Perforated Coils, Inconel 600 CR Coils, Inconel 2.4816 Coils, Inconel 600 HR Coils Manufacturer And Supplier In Dubai UAE

Table of Contents

Inconel Coils stand out as top-tier heating and cooling components renowned for their resilience in tough industrial settings. Crafted from nickel, chromium, and iron, these alloys boast impressive resistance to high temperatures, oxidation, and corrosive atmospheres. Widely embraced in aerospace, chemical processing, and nuclear industries, Inconel coils shine in environments where durability is non-negotiable. Their robust nature ensures they hold up under extreme conditions, making them a go-to choice for applications demanding a reliable and enduring coil solution.

Inconel Coils Specifications

Specifications

ASTM / ASME SB 168

Size

1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm

Thickness

0.1mm to 12 mm Thk

Form

Coilss, Foils, Rolls, Plain Coils, Shim Coils, Strip, Flats, Blank (Circle), Ring (Flange)

Finish

Hot rolled Coils (HR), Cold rolled Coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Hardness

Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Mechanical Properties of Inconel Coils

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Inconel 6008.47 g/cm31413 °C (2580 °F)Psi – 95,000 , MPa – 655Psi – 45,000 , MPa – 31040 %

Inconel Coils Chemical Composition

GradeCMnSiSCuFeNiCr
Inconel 6000.15 max1.00 max0.50 max0.015max0.50 max6.00 – 10.0072.00 min14.00 – 17.00

Inconel Coils, ASME SB 168 600 Inconel Coils, Inconel Alloy Coils Stockist in Dubai, UAE

Top Inconel Coils Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Available Inconel Coils Grades

  • Inconel 600
  • Inconel 625
  • Inconel 718
  • Inconel 800
  • Inconel 825

Contact us to get a quick quote for your requirement.

We offer These Inconel Coils as per DIN, ISO, JIS or ANSI Standard.

ASTM B168 Inconel 600 Coils, Inconel Alloy 600 Coils, Alloy 600 Coil in Abu Dhabi, UNS N06600 Coils, Inconel 600 Perforated Coils Manufacturer And Supplier In Dubai UAE

Advantages of Inconel Coils

  1. High Temperature Resistance: Inconel coils can withstand extreme temperatures, making them suitable for use in applications where heat resistance is crucial.
  2. Corrosion Resistance: These coils exhibit exceptional corrosion resistance, making them ideal for harsh environments such as chemical processing plants and marine applications.
  3. Excellent Mechanical Properties: Inconel coils offer excellent mechanical strength and toughness, ensuring durability and reliability in demanding industrial settings.
  4. Versatility: Available in various grades tailored to specific needs, Inconel coils find application in a wide range of industries, including aerospace, automotive, and power generation.
  5. Longevity: Thanks to their robust construction and resistance to degradation, Inconel coils have a longer service life compared to conventional materials, reducing maintenance costs and downtime.
  6. Precision Engineering: Inconel coils can be manufactured to precise specifications, ensuring consistency and reliability in performance.
  7. Compatibility: These coils are compatible with a wide range of chemicals and gases, making them suitable for use in diverse industrial processes.
  8. Safety: Inconel coils’ resistance to oxidation and corrosion minimizes the risk of equipment failure, enhancing overall safety in industrial operations.
  9. Cost-effectiveness: While initially more expensive than some alternatives, the long-term durability and performance of Inconel coils often result in cost savings over time due to reduced maintenance and replacement needs.

Types of Inconel Coils

Inconel Coils
Inconel Coils
Inconel Coils
Inconel Coils

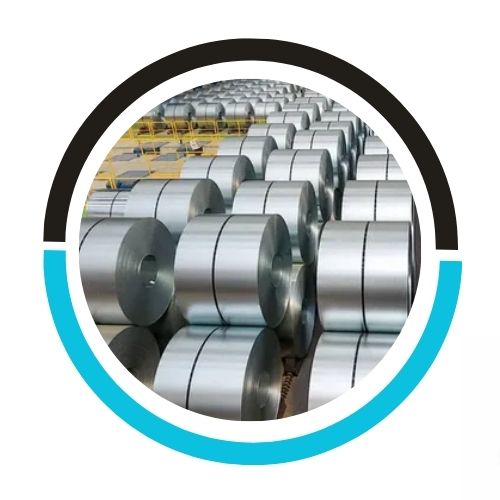

718 Inconel Round Coils

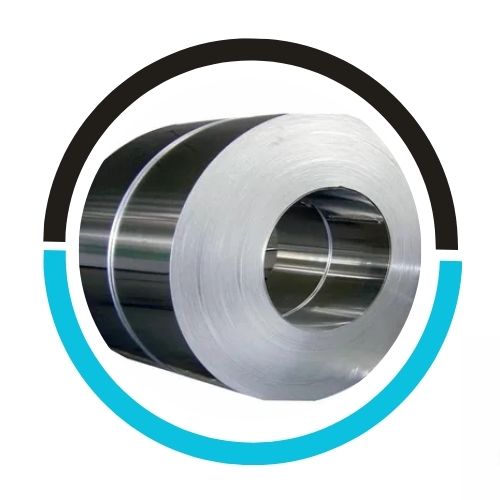

Inconel Bright Coils
Monel Cold Rolled Coils

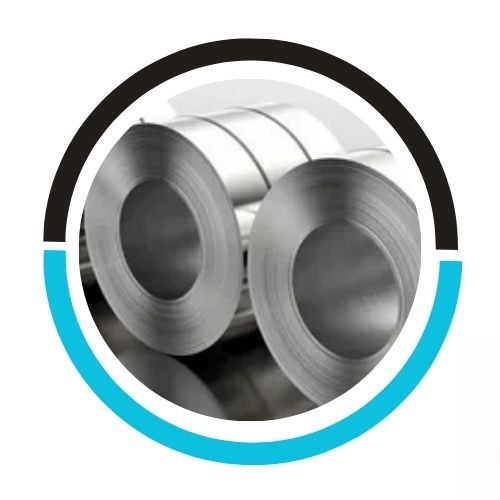

Inconel 601 Coils

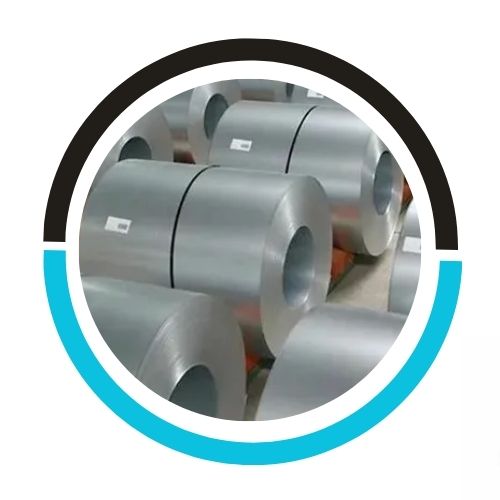

Inconel 617 Round Coils

Inconel Coil 625 Round Bars, Inconel 718 Coil Supplier in UAE, ASTM B564 Coil Manufacturer in Dubai

Inconel Coils Uses

Application Industry

Inconel Coils applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aerospace Industry

Petro Chemical Industry

Power Generation Industry

  1. Aerospace Industry: Inconel coils are utilized in aircraft engines, gas turbines, exhaust systems, and other critical components where high-temperature resistance and strength are required.
  2. Chemical Processing: Inconel coils find extensive use in chemical processing plants for reactors, heat exchangers, piping systems, and other equipment exposed to corrosive chemicals and high temperatures.
  3. Petrochemical Industry: Inconel coils are employed in oil refineries and petrochemical plants for applications such as heat exchangers, catalyst support grids, and furnace components due to their resistance to oxidation and corrosion.
  4. Power Generation: Inconel coils are used in power plants for boiler components, turbine exhaust systems, and heat recovery steam generators (HRSG) due to their ability to withstand high temperatures and corrosive environments.
  5. Nuclear Industry: Inconel coils are utilized in nuclear reactors for reactor vessel internals, control rod components, and steam generator tubes due to their resistance to radiation, high temperatures, and corrosion.
  6. Marine Engineering: Inconel coils find applications in marine environments for ship exhaust systems, desalination plants, and offshore drilling equipment due to their resistance to seawater corrosion and high temperatures.
  7. Heat Treatment: Inconel coils are used in heat treatment furnaces for annealing, hardening, and tempering processes in industries such as automotive, aerospace, and tool manufacturing.

How to Choose the Right Inconel Coils

  1. Identify Application Requirements: Determine the specific requirements of your application, including temperature range, corrosion resistance, mechanical strength, and compatibility with chemicals or gases.
  2. Consult Material Databases: Refer to material databases or consult with materials engineers to identify the appropriate Inconel alloy grade that meets your application’s requirements.
  3. Consider Temperature Resistance: Select an Inconel coil grade with the appropriate temperature resistance for your application’s operating conditions, ensuring it can withstand the expected temperature range without compromising performance.
  4. Evaluate Corrosion Resistance: Choose an Inconel alloy with the necessary corrosion resistance to withstand the environment it will be exposed to, whether it’s acidic, alkaline, seawater, or high-pressure steam.
  5. Assess Mechanical Properties: Consider the mechanical properties required for your application, such as tensile strength, yield strength, and ductility, and select an Inconel grade that offers the desired balance of mechanical properties.
  6. Review Industry Standards: Check if there are any industry standards or specifications relevant to your application, and ensure the selected Inconel coil meets those requirements for quality and performance.

Can Inconel Coils be Welded?

Yes, Inconel coils can be welded using various welding techniques such as gas tungsten arc welding (GTAW), shielded metal arc welding (SMAW), and plasma arc welding (PAW). However, due to the high nickel content and unique properties of Inconel alloys, special precautions and techniques are often required to achieve high-quality welds. Proper cleaning, preheating, and selection of suitable filler materials are essential to minimize the risk of weld defects such as cracking and porosity. Additionally, post-weld heat treatment may be necessary to restore the material’s properties and ensure the integrity of the weld joint. Overall, with the right expertise and procedures, Inconel coils can be successfully welded to meet the requirements of various industrial applications.

FAQ (Frequently Asked Questions)

What applications are suitable for Inconel Coils?

Inconel coils find suitability across a broad spectrum of demanding industrial applications due to their exceptional properties. They are extensively used in aerospace for engine components and aircraft structures, in chemical processing for reactors and heat exchangers, in power generation for turbine components, and in marine engineering for offshore equipment. Additionally, they serve in high-temperature applications like heat treatment furnaces, nuclear reactors, and automotive exhaust systems. Their corrosion resistance, high-temperature strength, and reliability make them indispensable in critical environments where performance and durability are paramount.

Several welding techniques are recommended for joining Inconel coils, including gas tungsten arc welding (GTAW), shielded metal arc welding (SMAW), and plasma arc welding (PAW). These techniques offer precise control over the welding process, ensuring high-quality welds with minimal risk of defects. Additionally, techniques such as friction welding and electron beam welding can also be effective for joining Inconel coils, particularly in specialized applications requiring high precision and minimal heat input. However, regardless of the welding technique chosen, proper cleaning, preheating, and selection of suitable filler materials are essential to ensure the integrity and performance of the weld joint.

Are there any special considerations for machining or fabrication of Inconel Coils?

Yes, machining and fabrication of Inconel coils require special considerations due to the material’s unique properties. Inconel alloys are known for their high strength, hardness, and resistance to heat and corrosion, making them challenging to machine. Specialized cutting tools and techniques, such as carbide or ceramic inserts and low cutting speeds, are often necessary to achieve satisfactory results without premature tool wear or workpiece deformation. Additionally, adequate cooling and lubrication during machining are essential to prevent overheating and maintain dimensional accuracy. Fabrication processes such as bending and forming may also require elevated temperatures and specialized equipment to avoid cracking or work hardening. Overall, careful planning, expertise, and adherence to best practices are crucial for successful machining and fabrication of Inconel coils.
