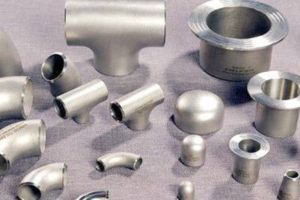

Monel Forged Fittings are highly regarded for their corrosion resistance and strength, making them a preferred choice in marine, chemical processing, and oil and gas industries. custom-built from a nickel-copper alloy, Monel exhibits exceptional durability against seawater, acids, and alkalis corrosion, making it basic for offshore structures and chemical processing equipment. These fittings come in diverse shapes and sizes, offering versatility in design and construction and ensuring longevity and reliability even in challenging environments.
| Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Grade | C | MN | SI | Cu | S | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 0.024 max | 2.50 max | 63.00 min |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Monel Forged Fittings as per DIN, ISO, JIS or ANSI Standard.
Monel Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, Monel forged fittings are recyclable. Monel is a nickel-copper alloy known for its recyclability and sustainability. When Monel forged fittings reach the end of their service life or become obsolete, they can be recycled by melting them down and reprocessing the material to produce new Monel products or components. Recycling Monel helps conserve natural resources, reduces energy consumption, and minimizes waste sent to landfills, making it an environmentally sustainable choice for various industries and applications.
Yes, Monel forged fittings are generally compatible with various piping materials commonly used in industrial and commercial applications. They can be used with stainless steel, carbon steel, alloy steel, copper, PVC (Polyvinyl Chloride), and HDPE (High-Density Polyethylene) pipes. However, precautions should be taken to ensure compatibility and prevent issues such as galvanic corrosion. Transition fittings or adapters may be necessary to achieve secure and leak-free connections between Monel forged fittings and other piping materials.
Considerations for installing Monel forged fittings include ensuring compatibility with the piping material and application to prevent issues like galvanic corrosion. Follow proper installation techniques, including torque specifications and sealing methods, to maintain leak-free connections and system integrity. Additionally, consider environmental factors such as temperature fluctuations and chemical exposure to prolong the fittings’ longevity and performance. Adhering to industry standards and manufacturer recommendations ensures safe and effective installation practices.
Yes, Super Monel forged fittings can be used for potable water applications due to their excellent corrosion resistance and durability. Super Monel alloys, such as Monel K500, offer enhanced strength and resistance to corrosion, making them suitable for use in drinking water systems. However, it’s essential to ensure that the specific grade of Super Monel used is certified and compliant with relevant standards for potable water contact, such as NSF/ANSI Standard 61. Proper installation and maintenance practices should also be followed to prevent contamination and ensure the safety of the water supply.
