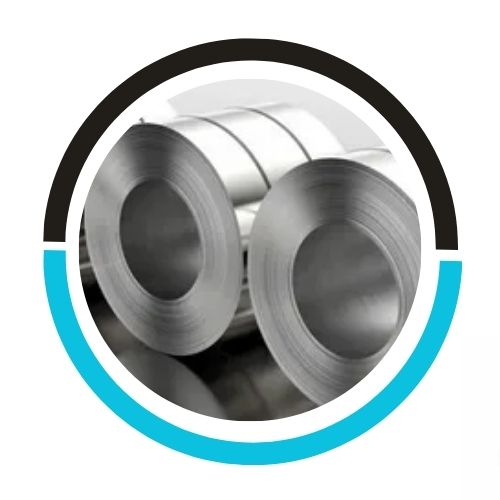

Monel K500 Coils represent another pinnacle of carefully engineering, custom-built from Monel K500, a high-strength precipitation-hardened nickel-copper alloy. Renowned for its exceptional resistance to corrosion, Monel K500 stands as a formidable choice for demanding environments, including marine and chemical processing industries. These coils are tailored to withstand the rigors of aggressive atmospheres, showcasing resilience to stress corrosion cracking and erosion. Widely utilized across sectors such as aerospace, oil and gas, and marine engineering, Monel K500 Coils excel in critical applications like pump components, valve stems, and fasteners, where durability and longevity are imperative.
Standard | ASTM B127 / ASME SB127 |
---|---|
Thickness | 0.2mm – 5.0mm |
Width | 3.2mm – 1500mm |
Length | AS PER CUSTOMER’S REQUIREMENT |
Test Certificate | Yes |
Coils Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
Form | Coil / Strip |
Make | Jindal, Bahru, Posco Korea, Posco Thainox, Columbus, Acerinox, Aperam, Tisco, Nisshin, Nippon And Many More Mills. |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Monel k500 Coils as per DIN, ISO, JIS or ANSI Standard.

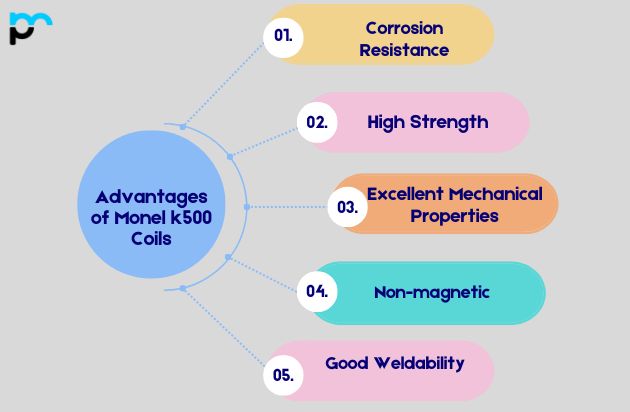

Corrosion Resistance: Monel K500 exhibits exceptional resistance to corrosion in a range of environments, including seawater, acids, alkalis, and other harsh chemicals. This corrosion resistance makes it ideal for use in marine and chemical processing industries.
High Strength: Monel K500 is significantly stronger than traditional nickel-copper alloys, such as Monel 400. Its high strength allows it to withstand high-stress environments and makes it suitable for applications where structural integrity is crucial.
Excellent Mechanical Properties: Monel K500 maintains its mechanical properties at both high and low temperatures, offering consistent performance across a wide range of operating conditions.
Non-magnetic: Monel K500 is non-magnetic, making it suitable for applications where magnetic interference is a concern, such as in electronic and medical devices.
Good Weldability: Monel K500 can be easily welded using conventional methods, allowing for the fabrication of complex structures and assemblies.
Monel k500 Coils applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Marine Industry: Monel K500 coils are widely used in the marine industry for applications such as propeller shafts, pump shafts, seawater valves, and marine instrumentation due to their exceptional corrosion resistance to seawater and marine environments.
Oil and Gas Industry: In the oil and gas sector, Monel K500 coils are utilized for downhole equipment, pump shafts, valves, and tubing in environments containing corrosive fluids, hydrogen sulfide, and high-pressure conditions.
Chemical Processing: Monel K500 coils are employed in chemical processing plants for equipment such as pumps, valves, heat exchangers, and piping systems where resistance to corrosive chemicals and high temperatures is essential.
Aerospace: In the aerospace industry, Monel K500 coils are used for aircraft components such as fasteners, springs, and landing gear parts due to their high strength-to-weight ratio, corrosion resistance, and ability to withstand high-stress environments.
Corrosion Resistance Requirements: Determine the corrosive environment in which the coils will be operating. Monel K500 offers excellent corrosion resistance to a wide range of corrosive media, including seawater, acids, and alkalis. Ensure that the chosen coils have the necessary corrosion resistance for your application.
Strength and Mechanical Properties: Evaluate the mechanical properties required for your application, including strength, hardness, and toughness. Monel K500 provides higher strength compared to Monel 400, making it suitable for applications where increased strength is necessary. Consider the required mechanical properties to ensure the coils can withstand the intended operating conditions.
Size and Dimensions: Specify the size, thickness, width, and length requirements of the coils based on your application’s design and dimensional specifications. Ensure that the chosen coils are available in the required sizes and dimensions to meet your needs.
Temperature and Pressure Conditions: Consider the temperature and pressure conditions that the coils will be exposed to in your application. Monel K500 maintains its mechanical properties at both high and low temperatures, making it suitable for a wide range of temperature conditions. Ensure that the chosen coils can withstand the temperature and pressure requirements of your application.
Yes, Monel K500 coils can be recycled after use. Nickel-based alloys like Monel are highly recyclable materials. Recycling helps conserve natural resources, reduce energy consumption, and minimize environmental impact by reclaiming and reusing the valuable metal content in the coils.
To maintain Monel K500 coils, regularly clean them with mild soap and water to remove dirt and debris. Avoid harsh chemicals or abrasive cleaners that can damage the surface. Inspect for corrosion or damage periodically and address any issues promptly to ensure prolonged performance and longevity.
Monel K500 coils may not be optimal for hygienic and sanitary applications due to their susceptibility to corrosion in certain environments. While Monel alloys offer good mechanical properties, their resistance to corrosion may not meet the stringent requirements of such applications, where stainless steel is often preferred.
Monel K500 coils are not ideal for underground applications due to their susceptibility to corrosion in soil environments. Corrosion resistance is crucial underground; hence, materials like stainless steel or corrosion-resistant alloys are preferred over Monel for prolonged service life and structural integrity.
