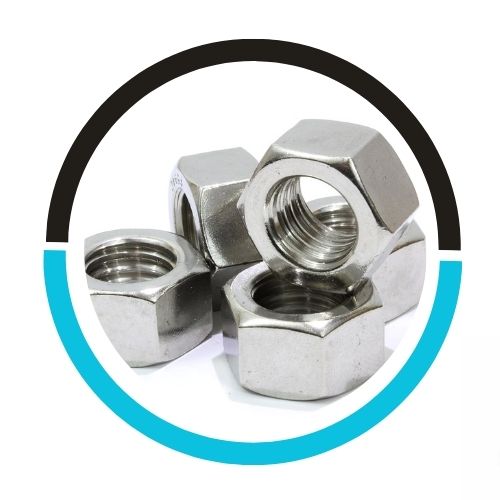

Monel K500 Nuts

Home > Monel> Monel K500 Nuts

Monel K500 Nuts Manufacturer & Supplier in Dubai, UAE

ASTM B865-04 Monel Nuts Price List in Sharjah, Monel K500 Nuts , Monel Alloy High Tensile Nuts, K500 Monel Nuts Supplier in Dubai, UAE.

Table of Contents

Monel K500 Nuts are fasteners made from Monel K500, a nickel-copper alloy renowned for its excellent corrosion resistance, high strength, and durability. These nuts are specifically designed to provide secure fastening in demanding environments where resistance to corrosion, erosion, and stress corrosion cracking is essential. Monel K500 nuts find applications in marine, chemical processing, and oil and gas industries, as well as in aerospace and automotive sectors where reliability and longevity are critical.

Monel K500 Nuts Specifications

SpecificationsASTM F 467 ASME SF 467
StandardIS, ASTM, BS and all International Standards
Length3 mm to 200 mm
SizeM3 – M56 | 3/6″ to 2″ | Custom Sizes
Screw TypeMonel K500 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts TypesMonel K500 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc.
Washer TypesMonel K500 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs TypesMonel K500 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut TypesMonel K500 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.

Mechanical Properties of Monel K500 Nuts

PropertiesMetricImperial
Tensile strength(annealed)517-620 MPa75-90 ksi
Yield strength172-345 MPa25-50 ksi
Modulus of elasticity179 GPa26000 ksi
Poisson’s ratio0.320.32

Monel K500 Nuts Chemical Composition

ElementContent (%)
Nickel, Ni63.0-70.0
Silicon, Si.50 max
Carbon, C.25 max
Sulphur, S.01 max
Copper, Cu
Iron, Fe2.0 max
Manganese, Mn1.5 max

Top Monel K500 Nuts Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Monel K500 Nuts as per DIN, ISO, JIS or ANSI Standard.

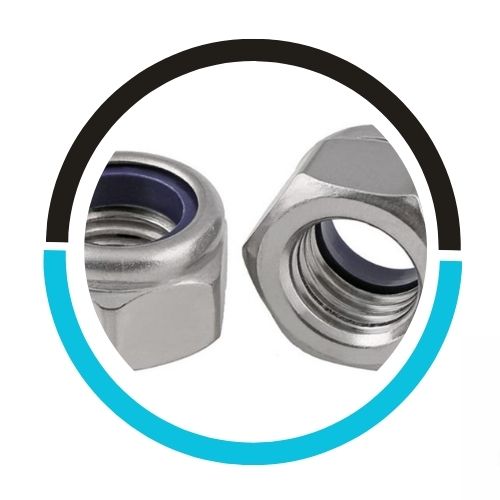

Alloy K500 Nuts, Monel Alloy K500 Anchor Nuts, Monel Alloy K500 Flat Nuts Supplier & Exporter in UAE.

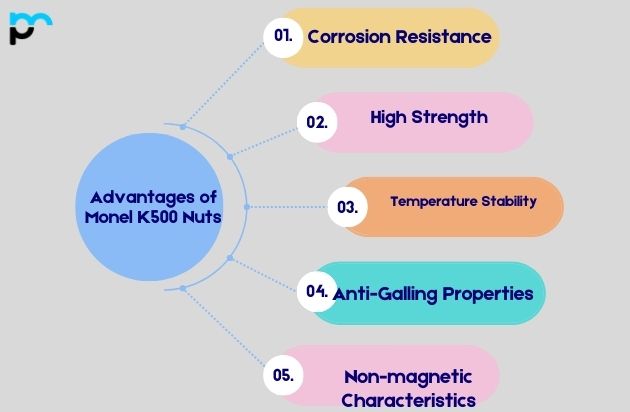

Advantages of Monel K500 Nuts

  • Corrosion ResistanceMonel K500 nuts exhibit exceptional resistance to corrosion, making them ideal for use in marine environments and applications involving exposure to harsh chemicals.
  • High StrengthThese nuts boast high tensile strength and excellent mechanical properties, providing reliable fastening solutions even in demanding conditions.
  • Temperature StabilityMonel K500 nuts maintain their structural integrity at elevated temperatures, ensuring stability and durability in high-temperature applications.
  • Anti-Galling PropertiesWith their unique composition, Monel K500 nuts offer excellent anti-galling properties, reducing the risk of seizing or thread damage during installation and removal.
  • Non-magnetic CharacteristicsMonel K500 nuts are non-magnetic, making them suitable for applications where magnetic interference is a concern, such as in electronic equipment or sensitive machinery.

Types of Monel K500 Nuts

Monel Alloy self locking nuts

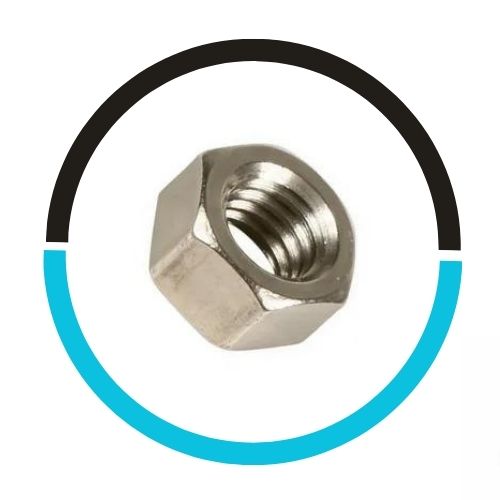

Monel Alloy 400 Hex Nuts

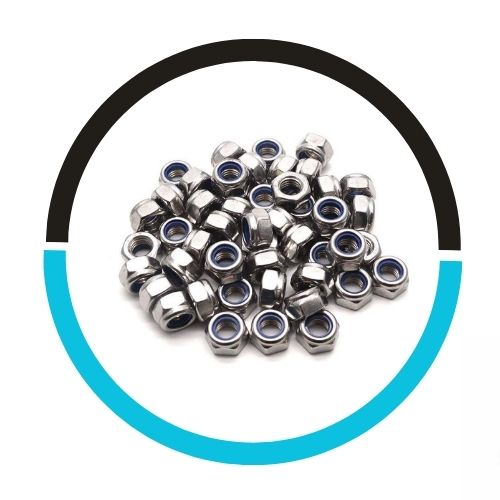

Monel Alloy 400 Heavy Hex Nuts
SS
Monel Alloy 400 Nylon Insert Nut
MONEL 400 HEAVY HEX NUTS

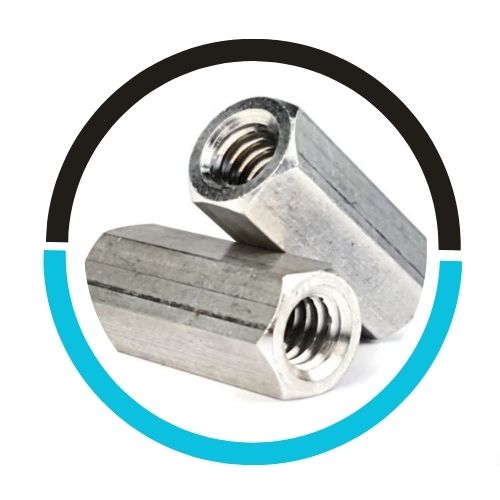

Monel 400 Coupler Nuts

Monel Nuts, Monel Alloy K500 Nuts, UNS N05500 Nuts, UNS N05500 Nuts Price List in UAE.

Monel K500 Nuts Uses

Application Industry

Monel K500 Nuts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

  • Marine ApplicationsMonel K500 nuts are extensively used in marine environments due to their exceptional corrosion resistance, making them suitable for fastening components in shipbuilding, offshore platforms, and marine equipment.
  • Oil and Gas IndustryIn the oil and gas sector, Monel K500 nuts find applications in equipment subjected to corrosive fluids, high pressures, and extreme temperatures, ensuring reliable fastening in critical infrastructure such as pipelines, valves, and pumps.
  • Aerospace EngineeringMonel K500 nuts are utilized in aerospace applications where lightweight, high-strength fasteners are required, such as in aircraft engines, structural components, and satellite systems, ensuring secure connections in demanding aerospace environments.
  • Chemical ProcessingMonel K500 nuts are favored in chemical processing plants for their resistance to corrosive chemicals and environments, providing reliable fastening solutions in equipment such as reactors, heat exchangers, and storage tanks.
  • Power GenerationMonel K500 nuts play a crucial role in power generation facilities, including nuclear power plants, where they are used in equipment exposed to high temperatures, radiation, and corrosive media, ensuring secure fastening in critical components.

How to Choose the Right Monel K500 Nuts

  • Consider the Application EnvironmentAssess the specific environmental conditions where the Monel K500 nuts will be used, such as exposure to corrosive chemicals, high temperatures, or marine environments, to ensure compatibility with the application requirements.
  • Determine the Fastening RequirementsIdentify the load-bearing requirements, including tension, shear, and torque, to select Monel K500 nuts with the appropriate strength and thread size to withstand the expected forces and ensure reliable fastening.
  • Verify Material SpecificationsConfirm that the Monel K500 nuts meet relevant material specifications, such as ASTM B865 or UNS N05500, to ensure quality and compliance with industry standards for corrosion resistance, mechanical properties, and chemical composition.
  • Choose the Right Nut TypeSelect the appropriate nut type based on the application requirements, such as hex nuts, lock nuts, flange nuts, or jam nuts, considering factors such as ease of installation, resistance to loosening, and compatibility with mating components.
  • Determine Thread Type and SizeIdentify the thread type (e.g., UNC, UNF, or metric) and thread size (e.g., diameter and pitch) required for the Monel K500 nuts to ensure proper fit and engagement with mating bolts or threaded components.

Are Monel K500 Nuts Recyclable?

Yes, Monel K500 nuts are recyclable. Monel is a nickel-copper alloy known for its recyclability and sustainability. Recycling processes can recover and reuse the materials in Monel K500 nuts without compromising their mechanical properties. This recyclability contributes to environmental stewardship by reducing the demand for new raw materials and minimizing waste in various industrial applications.

FAQ (Frequently Asked Questions)

Can Monel K500 Nuts be used for structural applications?

Monel K500 nuts can be utilized for certain structural applications, particularly in environments where corrosion resistance and high strength are paramount, such as marine and offshore structures. However, specific structural requirements and adherence to building codes must be considered. Consulting with structural engineers is essential to ensure compliance with industry standards and safety regulations for structural integrity.

Are Monel K500 Nuts suitable for cryogenic applications?

Monel K500 nuts are generally not recommended for cryogenic applications due to their susceptibility to embrittlement at extremely low temperatures. While Monel alloys exhibit good mechanical properties at room temperature and elevated temperatures, they may become brittle and lose their ductility when subjected to cryogenic conditions. For cryogenic applications, materials like stainless steel or certain nickel-based alloys with better cryogenic performance are typically preferred to ensure reliable performance and safety.

Does Monel K500 Nuts require corrosion protection coatings?

Monel K500 nuts possess inherent corrosion resistance, primarily due to their composition of nickel, copper, and small additions of aluminum and titanium. In many environments, Monel K500 nuts can withstand corrosion without the need for additional coatings. However, in highly corrosive or aggressive environments, such as marine or chemical processing applications, applying corrosion protection coatings like nickel or chrome plating may enhance their resistance and prolong their lifespan. The necessity of corrosion protection coatings depends on the specific application and the level of corrosion exposure.
