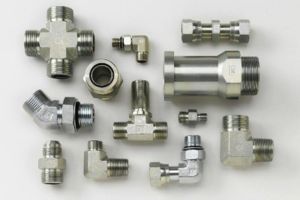

Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Monel Tube Fittings Manufacturer & Supplier In Dubai, UAE.

Monel Tube Fittings Price in UAE, Monel Instrumention Fittings, Monel Tube Fittings in Sharjah.

Table of Contents

Upgrade your equipment with our state-of-the-art Monel Tube Fittings, designed for high performance. These materials excel in the harshest conditions due to their excellent durability and resistance to corrosion and oxidation. Enhance your operations with effortless automation, backed by our fast delivery and expert know-how, to ensure reliable, affordable solutions.

Monel Tube Fittings Specifications

ASME B1.1 Materials Standard & Specification
ALLOY 400/ K500
Straight fittings and tube adapters Elbows, crosses, and tees
ASTM B574 /ASME SB 574 ASTM B564/ 564M  / ASME SB 564/ 564M
PSI Pressure Ratings
  • High Pressure Tube Fittings
  • Low Pressure Tube Fittings
  • 3000 PSI
  • 6000 PSI
  • 10000 PSI
  • 15000 PSI
  • 20000 PSI
  • 400 Bar
Pipe Threads
  • NPT (ASME B1.20.1, MILL-P-71058)
  • ISO Parallel – BSPP (BS 2779, ISO 228, JIS B 0202)
  • ISO Tapered – BSPT (BS 21, ISO 7, JIS B 0203)
  • ISO / BSP (Gauge) (ISO 228, BS 2779)
  • Unified (SAE) (ASME B 1.1)
Monel 400 Tube Fittings Other Trade name
  • Monel UNS 4400 Double Ferrule Fittings
  • 2.4360 Alloy 400 Double Ferrule Fittings
  • Nickel Alloy 400 Ferrule Fittings
  • Monel 400 Instrumentation Fittings
  • Alloy 400 Pneumatic Fittings
  • ASTM B564 N04400 Monel 400 Flare Fittings
  • Monel 4400 Hydraulic Fittings
  • ASME SB 564 UNS N04400 Hydraulic Hose Fittings
  • Monel Grade 400 Compression Fittings
  • 2.4360 Monel 400 Instrumentation Fittings
  • ASTM B564 UNS N04400 Compression Fittings
  • UNS N04400 Monel Push-To-Connect Fittings
  • Monel 400 Nickel JIC Fittings
  • Din 2.4360 Monel Twin Ferrule Fittings
Features
  • Easy to disconnect and retighten.
  • Available in wide configurations
  • Various Sizes
  • Best choice for instrumentations, process & control systems
  • Zero leakage even under tough working conditions
  • Gaugeable Bodies
  • Excellent gas-tight seal
  • Monel 400 Compression Fittings are fully interchangeable with Swagelok
  • Leak-proof joints capable of satisfying high pressure vacuum and vibration application
Test & Certification ECE R110, EC-79, NACE MR0175/ISO 15156 and MR0103.
We also stock & supply
  • Swagelok Fittings
  • Parker Fittings
  • DK LOK Fittings
  • Hamlet Letlok Fittings
  • DUOLOK Fittings
  • GYROLOK Fittings
  • TYLOK Fittings
  • BILOK Fittings
Port India

Monel Tube Fittings Mechanical Properties

DENSITY MELTING RANGE YIELD STRESS (0.2%OFFSET) TENSILE STRESS ELONGATION
8.8 g/cm3 1350 °C (2460 °F) Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %

Monel Tube Fittings Chemical Composition

NI C AL MN SI FE CU S
63.0 min 0.3 max 0.50 max 2.0 max 0.5 max 1.0 – 2.5 28.0 – 34.0 0.02 max

Top Monel Tube Fittings Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Monel Tube Fittings as per DIN, ISO, JIS or ANSI Standard.

Advantages of Monel Tube Fittings

Monel Tube Fittings
  • Exceptional Corrosion Resistance: Monel tube fittings are highly resistant to corrosion, especially in harsh environments such as seawater, acidic, and alkaline solutions. This makes them ideal for use in marine and chemical processing applications.
  • High Strength and Durability: Monel alloys possess excellent mechanical properties, providing high strength and durability even under extreme conditions. This ensures long-lasting performance and reduces the need for frequent replacements.
  • Excellent Thermal Stability: These fittings maintain their integrity and mechanical properties across a wide temperature range, making them suitable for high-temperature applications without compromising their structural integrity.
  • Resistance to Oxidation: Monel tube fittings exhibit superb resistance to oxidation, which helps prevent material degradation and maintains the reliability and efficiency of the system over time.
  • Versatility and Reliability: Monel tube fittings are versatile and can be used in a variety of applications, including oil and gas, petrochemical, marine, and aerospace industries. Their reliability ensures consistent performance and minimal maintenance requirements.

Types of Monel Tube Fittings

Monel Tube Fittings in UAE
Monel Tube Fittings
ASTM B564 UNS N04400 Tube Ends in UAE
ASTM B564 UNS N04400 Tube Ends
UNS N04400 Monel Tube to Tube in UAE
UNS N04400 Monel Tube to Tube
Monel Tube Welded Tube Fittings in UAE
Monel Tube Welded Tube Fittings
Monel Instrument Fittings in UAE
Monel Instrument Fittings
Alloy 400 Welded Compression Fittings in UAE
Alloy 400 Welded Compression Fittings

Application Industry

Monel Tube Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Automotive Industry

Petro Chemical Industry

Power Generation Industry

Are Monel Tube Fittings Recyclable?

Yes, Monel tube fittings are recyclable. Monel, being a high-value nickel-copper alloy, can be efficiently recycled without losing its properties. This makes it an environmentally friendly choice, as recycling reduces the need for raw material extraction and minimizes waste, contributing to sustainable industrial practices.
