Nickel Alloy 200 Flanges Manufacturer, Exporter and Supplier in Dubai, UAE

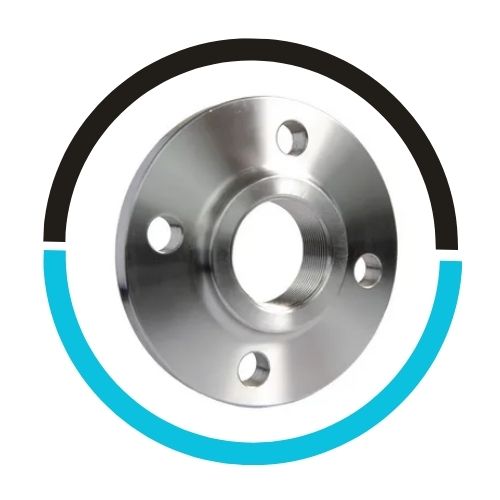

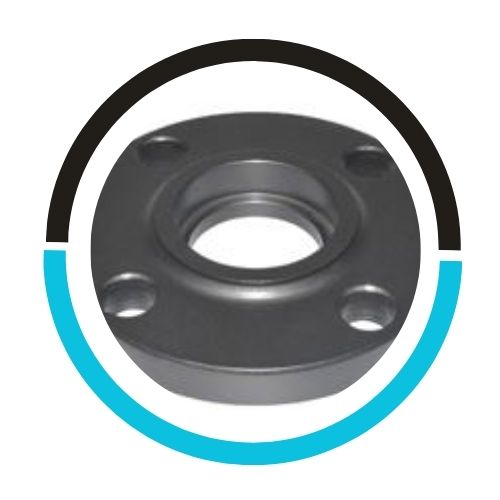

Nickel Alloy ASTM B564 200 Thraded Flanges Price In UAE, WERKSTOFF NO 2.4066 Nickel Socket Weld Flanges Stockist In Dubai, 201 Alloy Lapped Joint Flanges Exporter In UAE, ANSI B16.5 Stockist In Dubai, UAE.

Nickel Alloy 200 Flanges are integral fittings within piping systems, prized for their exceptional corrosion resistance, high-temperature strength, and impressive mechanical properties. Widely employed in diverse industries including chemical processing, petrochemical, oil and gas, power generation, aerospace, and marine sectors, these flanges ensure robust performance in corrosive environments and under elevated temperatures. Whether facing aggressive chemicals or extreme conditions, Nickel Alloy 200 Flanges stand as reliable components, providing longevity and efficiency to critical applications.

Nickel Alloy 200 Flanges Specifications

Dimensions	ASTM B564 / B182
Grades	200 (N02200), 201 (N02201), Alloy 20 (N08020).
Size	1/8″ NB TO 48″ NB.
Class	150#, 300#, 400#, 600#, 900#, 1500#, 2500#, 3000#. Also as per the National & International Standard.
Standard	SORF, SOFF, SOLJ, SWFF, WNRF, WNFF, WNRTJ, LWNRF, BLRF, BLFF, BLRTJ, SWRF, LAP Joint, Threaded, Reducing, Spectacle, Orifice & Studding Outlet are manufactured according to ANSI B 16.5, B 16.47 Series A (MSS SP-44), B 16.47 Series B (API 605), MSS SP-43, DIN 2527, DIN 2566, DIN 2576, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2642, BS 10, IS 1538 & IS 6392, etc
Types of Flanges	Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges, (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Deck Flange, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc.
Form	Slip-On Flange (SO), Blind Flange (BL), Lap Joint Flange (LF), Socketweld Flange (SW), Weld Neck Flange (WN), Long Weld Neck Flange (LWN), Ring Type Joint (RTJ), Threaded Flange, Customized Flange with Raised Face (RF), Flat Face (FF).

Nickel Alloy 200 Flanges Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Ti	S
Nickel 200	99.0 min	0.4 max	0.15 max	0.35 max	0.1 max	0.25 max	–	0.01 max

ANSI B16.47 Price In Dubai, B16.48 Flanges Exporter In UAE, BS4504 Flanges Exporter In UAE, EN-1092 NICKEL 200 FORGED FLANGES Supplier In UAE, ASTM B564 201 Alloy Plate Flange In Dubai, UAE

Nickel Alloy 200 Flanges Mechanical Properties

/tr>

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Top Nickel Alloy 200 Flanges Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These Nickel Alloy 200 Flanges as per DIN, ISO, JIS or ANSI Standard.

200 Nickel WNRF Flanges Exporter In UAE, Nickel Alloy UNS N02200 Industrial Flanges Price In Dubai, Nickel Alloy 201 RTJ Flanges Manfacturer In Dubai, UAE

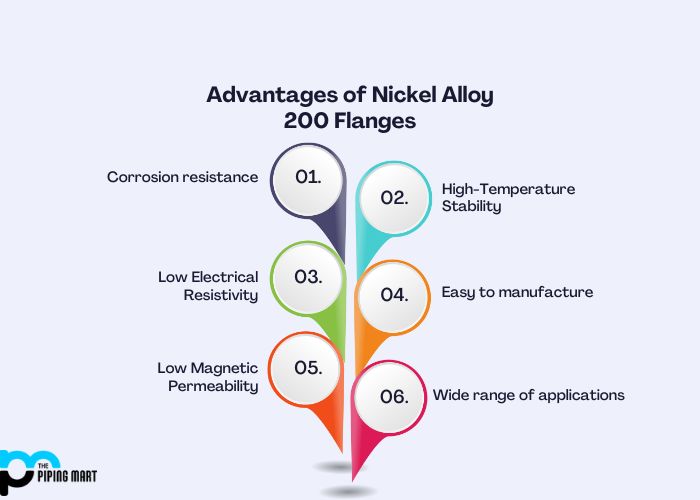

Advantages of Nickel Alloy 200 Flanges

Corrosion Resistance: Nickel alloy 200 exhibits excellent corrosion resistance, especially in alkaline environments such as those found in chemical processing, food processing, and marine applications, making this corrosion suitable for use in corrosion and chemical environments.
High thermal stability: Nickel alloys retain mechanical properties even at temperatures above 200, making them suitable for high-temperature applications where they lie at high temperatures, such as petrochemical and electrical industries; this property is important for flanges used in those applications.
Low electrical resistivity: Nickel alloy has a low electrical resistance of 200, making it useful where electrical conductivity is essential, such as in electrical engineering and electronics
Easy to manufacture: Nickel alloy 200 is easily manufactured into various shapes, including flanges, due to its excellent flexibility and elasticity. This property simplifies the fabrication process and enables the production of complex shapes with relative ease.
Low Magnetic Permeability: The nickel alloy has a low magnetic permeability of 200, making it suitable for applications where magnetic interference must be low, such as electronics and some medical devices
Wide range of applications: Due to its excellent combination of properties, nickel alloy 200 flanges find applications in various industries, including pharmaceutical, petrochemical, food processing, marine, aerospace and electronics

Types of Nickel Alloy 200 Flanges

ASME SB564M Nickel Alloy 200 Class 300 Flanges Price In UAE, Nickel DIN 2.4068 Flat Flange Supplier In Dubai, 200 Nickel Alloy EN 1092-1 Flanges Exporter In Dubai, UAE

Nickel Alloy 200 Flanges Uses

Application Industry

Nickel alloy 200 flanges are widely utilized in various industries for their exceptional corrosion resistance, high-temperature strength, and superior mechanical properties. Commonly found in chemical processing plants, petrochemical refineries, oil and gas exploration facilities, power generation plants, aerospace applications, and marine environments, these flanges connect pipes, valves, and equipment in demanding operating conditions.

Chemical Processing

Oil and Gas Exploration

Petro Chemical Industry

Power Generation Industry

Chemical applications: Nickel alloy 200 flanges are commonly used in chemical applications where corrosive chemicals are used. They provide excellent resistance to acids, alkalis and other corrosive agents.
Power performance: Nickel alloy 200 flanges in electrical equipment find applications in applications such as valves, piping systems, and heat exchangers, where they can withstand high temperatures and pressures without degradation.
Oil and Gas Industry: Flanges made of nickel alloy 200 are used in the offshore and onshore oil and gas industry due to their resistance to seawater corrosion and environmental hazards encountered in oil and due to gas production
Aerospace: Nickel alloy 200 flanges are used in aircraft and aerospace applications requiring lightweight materials with high strength and extreme heat resistance.
Marine Applications: Due to the corrosion resistance of nickel alloy 200 flanges, seawater is generally reserved for use in fixtures, pipelines, and other marine applications in the environment
Food Processing: In the food and beverage industry, where corrosion resistance is required to maintain hygiene and safety standards, nickel alloy 200 flanges are used in equipment such as tanks, piping, and machines a in the manufacturing process

How to Choose the Right Nickel Alloy 200 Flanges

Application Requirements: Understand the specific application for which you need the flange. Nickel alloys are known for their excellent corrosion resistance in 200 different areas, so if corrosion resistance is a key requirement, this alloy may be suitable.
Conditions of Use: Consider the temperature, pressure, and other environmental factors that will compromise the flanges. Nickel alloy 200 has excellent mechanical properties and can withstand high temperatures, making it suitable for high-temperature applications.
Compatibility: Ensure that Nickel Alloy 200 flanges are compatible with other components in your system, including piping, valves and fittings. Alignment issues can cause corrosion and other problems over time.
Size and Dimensions: Determine the appropriate size and dimensions of the flange. Flanges come in a variety of sizes and pressure ratings depending on the piping system they will be used in, so choose the one that best suits your needs
Standards and Specifications: Check for specific industry standards or specifications the flange must meet. This ensures that your application’s quality and performance standards are met.
Supplier Reputation: Choose a reputable supplier or manufacturer with a track record of providing high-quality Nickel Alloy 200 flanges. Review certifications and quality control procedures to ensure product quality.
Cost Considerations: While quality may be paramount, consider the cost implications of the various options. Compare prices from different suppliers and weigh factors such as quality, reliability and service support.

Are Nickel Alloy 200 Flanges susceptible to galvanic corrosion?

Nickel Alloy 200 flanges exhibit excellent resistance to galvanic corrosion due to their high nickel content, which forms a protective oxide layer. When paired with compatible materials, such as stainless steel or nickel alloys, galvanic corrosion risk is minimized, making them suitable for diverse environments.

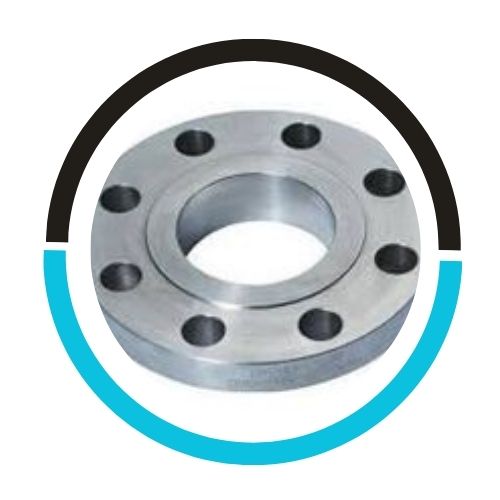

Nickel Alloy Flanges Price In Dubai, Nickel Alloy UNS N02201 Flanges Exporter In UAE, Nickel Alloy 200 Slip on Flanges Supplier In Dubai, ANSI B16.5 Nickel 200 Orifice Flanges Manufacturer In Dubai, UAE

Nickel Alloy 200 Flanges Weight Chart

Flange Weights by Pressure Class and Size
Pipe Size	150 #			300 #			600 #			900 #			1500 #			2500 #
Pipe Size	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD
1/2″	2	1	1	2	1	1	2	2	2	SEE 1500 # WEIGHTS			5	4	4	7	7	7
3/4″	2	2	2	3	3	3	4	3	3	SEE 1500 # WEIGHTS			6	5	6	8	8	8
1″	3	2	2	4	3	3	4	4	4	SEE 1500 # WEIGHTS			9	8	8	12	11	11
1 1/2″	4	3	3	7	6	6	8	7	8	SEE 1500 # WEIGHTS			13	12	13	25	22	23
2″	6	5	5	9	7	8	12	9	10	SEE 1500 # WEIGHTS			25	25	25	42	37	39
2 1/2″	8	7	7	12	10	12	18	13	15	SEE 1500 # WEIGHTS			36	36	35	52	55	56
3″	10	8	9	15	13	16	23	16	20	31	26	29	48	48	48	94	83	86
4″	15	13	17	25	22	27	42	37	41	53	53	54	73	73	73	145	125	130
5″	19	15	20	32	28	35	68	63	68	86	83	87	130	130	140	245	210	225
6″	24	19	26	42	39	50	81	80	86	110	110	115	165	165	160	380	325	345
8″	39	30	45	67	58	81	120	115	140	175	170	200	275	260	300	580	485	530
10″	52	43	70	91	81	124	190	170	230	260	245	290	455	435	510	1075	930	1025
12″	80	64	110	140	115	185	225	200	295	325	325	415	690	580	690	1525	1100	1300
14″	110	90	140	180	165	250	280	230	355	400	400	520	940	NA	975	NA	NA	NA
16″	140	98	180	250	190	295	390	330	495	495	425	600	1250	NA	1300	NA	NA	NA
18″	150	130	220	320	250	395	475	400	630	680	600	850	1625	NA	1750	NA	NA	NA
20″	180	165	285	400	315	505	590	510	810	830	730	1075	2050	NA	2225	NA	NA	NA
22″	225	185	355	465	370	640	720	590	1000	NA	NA	NA	NA	NA	NA	NA	NA	NA
24″	260	220	430	580	475	790	830	730	1250	1500	1400	2025	3325	NA	3625	NA	NA	NA

FAQ (Frequently Asked Questions)

Can Nickel Alloy 200 flanges be used for underground applications?

Nickel Alloy 200 flanges can be used for underground applications where corrosion resistance is crucial. Their excellent resistance to corrosion in various environments, including underground conditions, makes them suitable for use in pipelines, chemical processing plants, and other underground infrastructure projects, providing long-term reliability and performance.

Are Nickel 200 Alloy Flanges Weldable?

Yes, Nickel 200 Alloy flanges are weldable using various welding techniques such as gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding.

What Factors Should be Considered When Selecting Nickel Alloy 200 Flanges?

When selecting Nickel Alloy 200 flanges, consider factors such as corrosion resistance, compatibility with operating conditions, size and dimensions, adherence to standards, supplier reputation, cost-effectiveness, customization options, testing and inspection, and long-term support to ensure suitability and performance for your specific application needs.
