Shoulder Screws Manufacturer and Supplier in Dubai, UAE.

Shoulder Screws Supplier in Abu Dhabi, Shoulder Screws Exporter in Dubai, Shoulder Screws Manufacturer in Dubai, Shoulder Screws Supplier and Manufacturer in Dubai, UAE

Table of Contents

Discover our wide range of Shoulder Screws, designed to meet various industrial requirements. These screws are engineered to offer durability and excellent corrosion resistance, surpassing industry standards. We provide flexible product options, competitive pricing, and reliable delivery for your satisfaction. Whether for construction, infrastructure, or industrial projects, our Shoulder Screws ensure reliability and innovative performance, backed by our commitment to quality and expertise.

Shoulder Screws Specifications

Hexagon Socket Head Shoulder Screws Material18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Standards of Shoulder ScrewsISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Stainless Steel Shoulder Screw SizeM2 – M100
35mm
Hex Socket Head Shoulder Screw typesTapping Screws, Wood Screws, confirmat screw

Shoulder Screws Manufacturer in Dubai, Knurled Socket Shoulder Screws Supplier in Abu Dhabi, Socket Shoulder Screws Price List in Dubai, UAE

Shoulder Screws Dimensions

Socket Shoulder Screw Dimensions (Alloy Steel)                                                                                                                                  ASME B18.3-2003
Nominal Size Click on the size to shop products Shoulder Diameter (D) Head Diameter (A) Head Height (H) Chamfer or Radius (C) Hex Socket Size (J) Key Engage-ment (T) Fillet Transition Diameter (M) Head Fillet Radius (R) Shoulder Neck Diameter (K) Shoulder Neck Width (F)
Max Min Max Min Max Min Max Nom  Min  Max Min Min Max
1/4 0.2480 0.2460 0.375 0.357 0.188 0.177 0.020 1/8 0.094 0.276 0.009 0.227 0.093
5/16 0.3105 0.3085 0.438 0.419 0.219 0.209 0.026 5/32 0.117 0.345 0.012 0.289 0.093
3/8 0.3730 0.3710 0.562 0.543 0.250 0.240 0.031 3/16 0.141 0.413 0.015 0.352 0.093
1/2 0.4980 0.4960 0.750 0.729 0.312 0.302 0.040 1/4 0.188 0.550 0.020 0.477 0.093
5/8 0.6230 0.6210 0.875 0.853 0.375 0.365 0.050 5/16 0.234 0.687 0.024 0.602 0.093
3/4 0.7480 0.7460 1.000 0.977 0.500 0.490 0.069 3/8 0.281 0.826 0.030 0.727 0.093

Top Shoulder Screws Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Shoulder Screws as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Shoulder Screws Supplier in Abu Dhabi, Shoulder Screws Exporter in Dubai, Low Head Socket Shoulder Screws Manufacturer in Dubai, UAE

Advantages of Shoulder Screws

Advantages of Shoulder Screws
  • Precise Positioning: One of the primary advantages of shoulder screws is their ability to provide accurate and consistent positioning. The shoulder of the screw acts as a precise stop, allowing for reliable alignment in assemblies or machinery.
  • Load Distribution: The shoulder of the screw helps to distribute axial loads more evenly than traditional screws or bolts. This can reduce stress concentrations in the material and improve the overall strength of the joint.
  • Reduced Wear and Tear: By providing a smooth bearing surface at the shoulder, these screws can minimize wear between parts that move relative to each other. This is particularly beneficial in moving assemblies where friction and wear could be problematic.
  • Versatility: Shoulder screws are available in various materials, finishes, and configurations (such as socket head or slotted head), making them versatile for a wide range of applications across different industries.
  • Maintenance and Accessibility: When maintenance or adjustments are necessary, shoulder screws can make disassembly and reassembly easier due to their precise positioning and predictable performance.

Types of Shoulder Screws

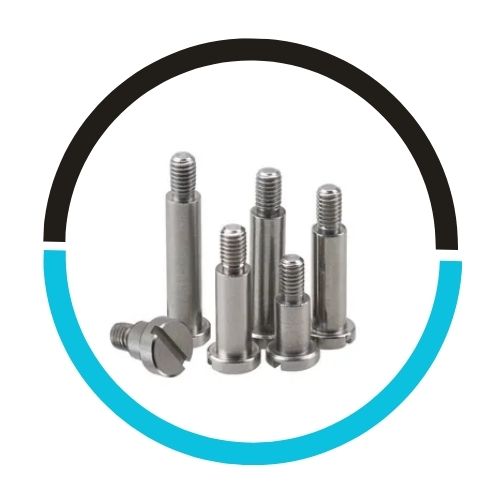

Knurled Socket Shoulder Screws in UAE
Knurled Socket Shoulder Screws
Socket Shoulder Screws in UAE
Socket Shoulder Screws

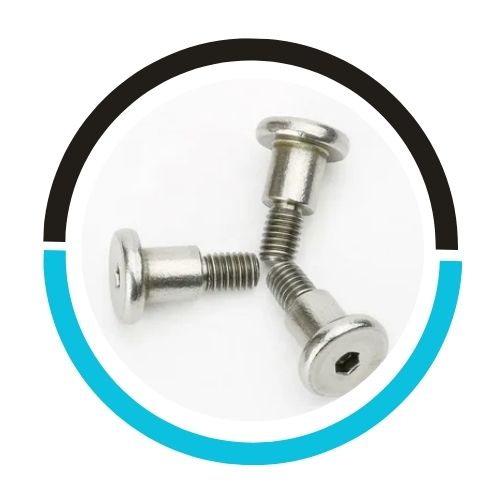

Low Head Socket Shoulder Screws in UAE
Low Head Socket Shoulder Screws
Hexalobular Shoulder Screws in UAE
Hexalobular Shoulder Screws
Low Head Slotted Shoulder Screws in UAE
Low Head Slotted Shoulder Screws

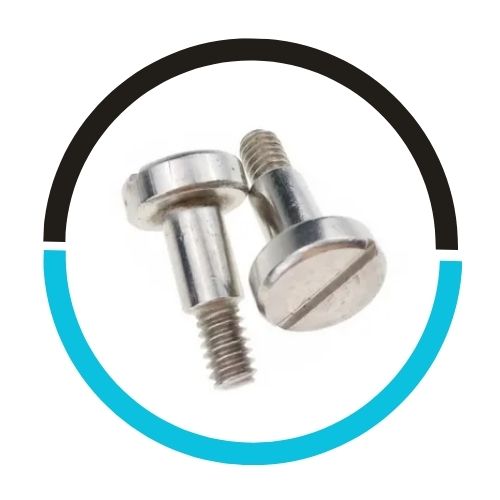

Slotted Shoulder Screws in UAE
Slotted Shoulder Screws

Shoulder Screws Uses

Application Industry

Shoulder Screws applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

Are Shoulder Screws Recyclable?

Shoulder screws, typically made of steel or stainless steel, are recyclable. These screws can be recycled through metal recycling programs, where they are melted down and reused to make new metal products. Removing non-metal components, such as plastic or rubber, is important before recycling to ensure they are properly processed. Recycling shoulder screws helps conserve resources and reduces the environmental impact associated with metal production.
