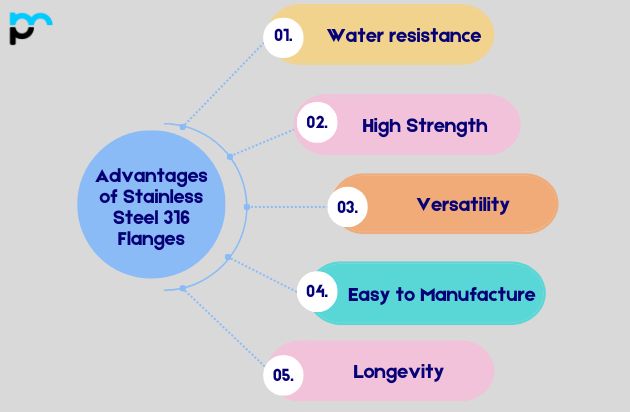

Stainless Steel 316 flanges are composed primarily of iron, chromium (16-18%), nickel (10-14%), and molybdenum (2-3%). This composition provides excellent corrosion resistance, particularly against chlorides and marine environments. They offer high tensile strength, good weldability, and resistance to oxidation at elevated temperatures. Advantages include enhanced durability, long service life, and minimal maintenance requirements, making them ideal for harsh conditions in chemical processing, marine, and high-temperature applications.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard Flange | ANSI, ASME, BS, DIN, EN etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
|---|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Stainless Steel 316 Flanges as per DIN, ISO, JIS or ANSI Standard.
Stainless Steel 316 Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes,Stainless Steel 316 flanges can be recycled after use. Stainless steel is highly recyclable, retaining its properties through multiple recycling processes, making it an environmentally friendly material choice for various applications.
