Home > Super Duplex Steel > Super Duplex Steel Pipe Fittings S32750
| Standard Specification : | Super Duplex Fittings |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Super Duplex S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex S32750 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 22.0 – 23.0 | 4.50 – 6.50 | 3.0 – 3.5 | 0.14 – 0.20 | 63.72 min. |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Super Duplex Steel Pipe Fittings S32750 as per DIN, ISO, JIS or ANSI Standard.

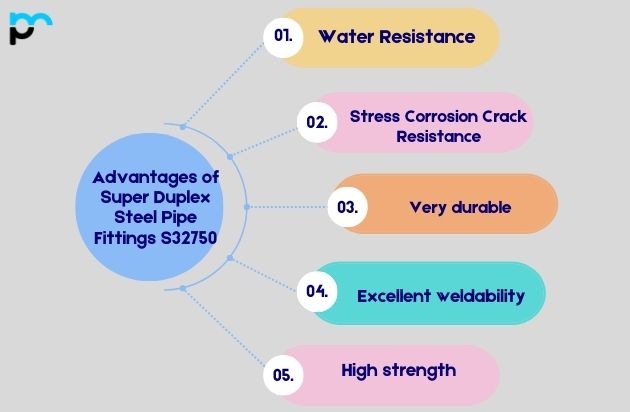

Water Resistance: The main advantage of Super Duplex Steel Pipe Fittings S32750 is exceptional corrosion resistance, especially in aggressive environments such as chloride, acid and sea water. This resistance is higher than austenite or duplex stainless steel, which is the standard for marine applications shall be modelled.
Stress Corrosion Crack Resistance: Super Duplex Steel Pipe Fitting S32750 provides superior resistance to Stress Corrosion Cracking (SCC) compared to standard austenitic stainless steel. This provides particular advantages in areas where SCC is a concern, such as in the presence of chloride ions.
Very durable: These materials are extremely durable even at low temperatures, making them suitable for cryogenic applications
Excellent weldability: Despite high strength and corrosion resistance, Super Duplex Steel Pipe Fittings S32750 maintain excellent weldability. This property simplifies construction and installation, reducing labour costs and time.
High strength: Super duplex steel pipe fittings S32750 exhibit high tensile and yield strength, allowing them to withstand high stresses and heavy loads. This characteristic makes them suitable for oil and gas, chemical processing, petrochemical and other industries.
Super Duplex Steel Pipe Fittings S32750 applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Super-duplex steel pipe fittings are widely used in offshore and onshore oil and gas exploration and production facilities Due to their resistance to corrosion from seawater, hydrogen sulfide (H2S), and other internal environments hard therefore for pipelines, risers, on subsea equipment and offshore platforms.
Power generation: Super duplex steel pipe fittings find applications in the electrical industry, especially in power plants where seawater is used for cooling. They resist high temperatures, chloride ions and other corrosive substances containing water in a cold system.
Desalination plants: Because of their resistance to chloride-induced stress corrosion, cracking and pitting, super-duplex steel pipe fittings are commonly used in desalination plants that treat seawater as fresh water. The aggressiveness of power, high temperatures, and pressures associated with desalination processes and withstand.
Chemical applications: In chemical plants where corrosive chemicals are controlled, such as petrochemical plants, refineries and pharmaceutical plants, super duplex steel pipe fittings are preferred for corrosion resistance in acid, alkalis and chloride-containing solutions
Understand your requirements: Identify the specific requirements of your program or application. Consider factors such as the type of liquid or gas being transported, pressure and temperature conditions, corrosion resistance requirements, and environmental factors.
Pressure rating: Consider the pressure rating of pipe fittings to ensure they can withstand the operating pressures of your system. Super Duplex steel pipe fittings are available in various pressure classes, so choose the right rating based on your application.
Size and Dimensions: Based on your piping system layout and flow requirements, determine the required size and dimensions of the pipe fitting. Ensure the fitting conforms to ASTM, ASME, or EN standards.
Compatibility: Make sure Super Duplex Steel Grade S32750 suits your application. Super duplex stainless steel provides excellent corrosion resistance and mechanical properties, making it suitable for harsh environmental applications such as offshore and marine applications, chemical processing and oil and gas.
