Titanium fasteners are hardware components such as bolts, screws, nuts, washers, and studs made from titanium alloy. Titanium is a lightweight, high-strength metal known for its excellent corrosion resistance, particularly in harsh environments such as saltwater, chemical processing, and aerospace applications.
Titanium Grade 2 Fasteners Material Specification | Titanium Bolts, UNS R50400 Bolts |
---|---|
Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
Titanium Grade 2 Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
Length | 3 mm to 200 mm |
Titanium Grade 2 Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
Titanium Grade 2 Fasteners Standard: | ANSI – American National Standards Institute
|
Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
SCOPE OF MANUFACTURE |
|
Titanium Grade 2 Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
Titanium Grade 2 bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
Titanium Grade 2 Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Titanium Grade 2 : Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Titanium Grade 2 , Mechanically Applied coating and some special one like DACROMET |
Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Titanium Grade 2 bolting materials Surface Coating: |
|

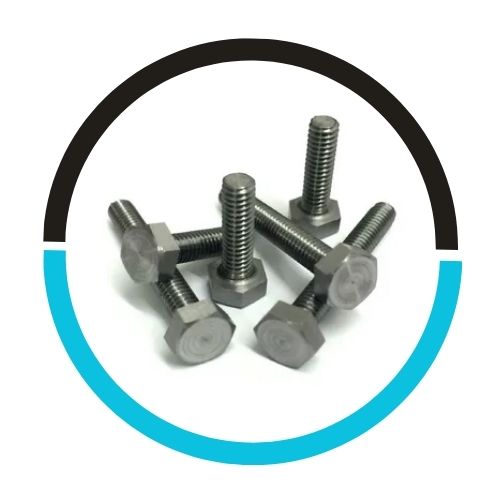

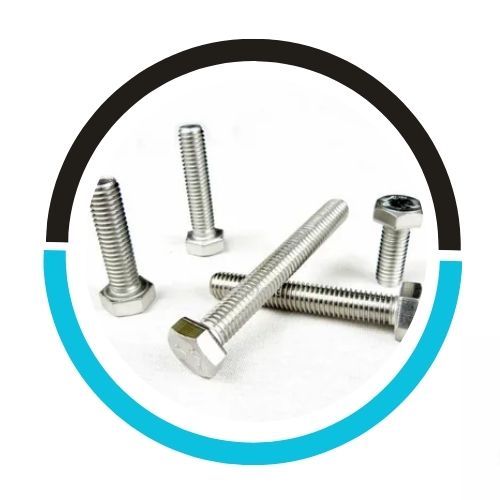

Popular Types of Titanium Grade 2 Bolts | Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
Popular Types of Titanium Grade 2 Nut | Eye, Dome, Hex Head Nut, Panel, Lock, Coupling, Square, Acorn, T, Wing etc. |

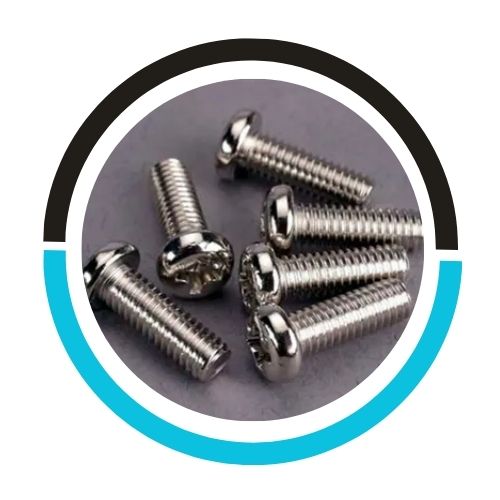

Popular Types of Titanium Grade 2 Screw | Socket Set Fasteners, Anchor Fasteners, Blind Rivet, Threaded Fasteners, Socket Head Fasteners, Machine Fasteners, Concrete Fasteners, Shoulder Fasteners, Panel Fasteners, Hex Head Cap Fasteners etc. |

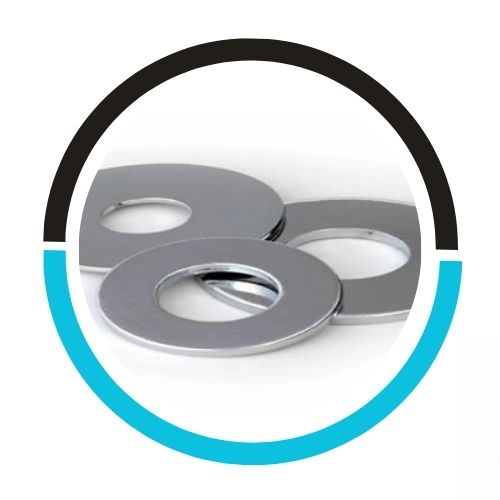

Popular Types of Titanium Grade 2 Washer | Machine Washers, Star Washers, Flat Washer, Lock Washer, Split Washer, Sealing Washer etc. |
Titanium Grade 2 Fasteners Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
Grade | C | N | O | H | Ti | Fe |
Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.40 max |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Titanium Fasteners as per DIN, ISO, JIS or ANSI Standard.

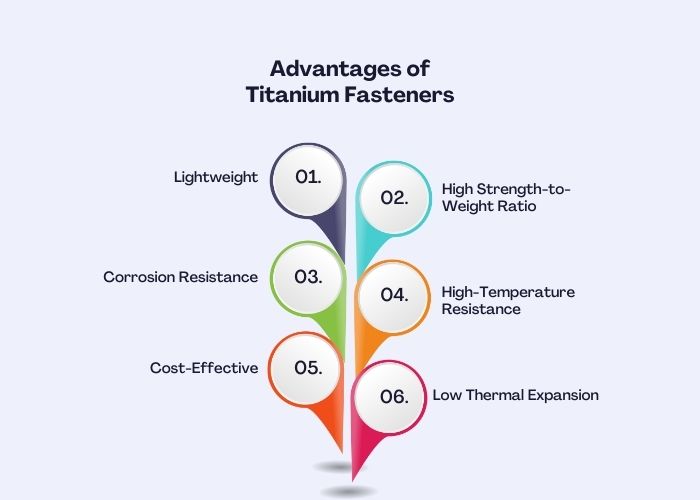

Due to their remarkable properties, titanium fasteners find extensive industrial use across various sectors. Their high strength, lightweight nature, and exceptional corrosion resistance make them indispensable in the aerospace, automotive, marine, medical, and chemical processing industries.
Titanium fasteners are typically made from commercially pure titanium or titanium alloys such as Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, and Grade 23 (Ti-6Al-4V ELI), each offering different properties suited to specific applications.
Yes, titanium fasteners can be welded using specialized techniques and equipment to maintain their corrosion resistance and mechanical properties. However, proper precautions must be taken to prevent contamination and ensure quality welds.
Titanium fasteners can be sourced from specialty fastener suppliers, metal distributors, and manufacturers specializing in titanium products. It’s important to ensure that the fasteners meet relevant industry standards and specifications for your specific application.
Yes, titanium fasteners exhibit excellent corrosion resistance, particularly in environments where stainless steel or other metals may corrode. They are resistant to corrosion from seawater, acids, alkalis, and other corrosive substances.
Titanium Grade 2 Fasteners Type |
SIZE |
GRADE |
ASME |
ISO |
ASTM |
---|---|---|---|---|---|

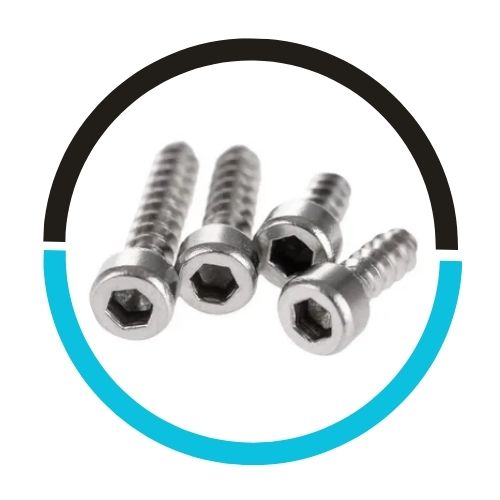

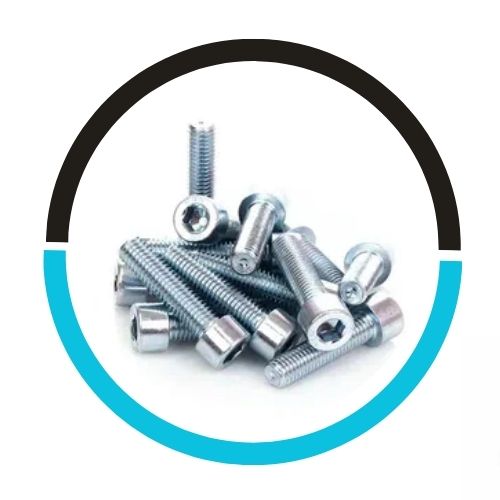

Titanium Grade 2 Socket Head Cap Fasteners |
M1.6 to M64 |
12.9 |
B18.3.1 M |
4762 |
A574M |
Titanium Grade 2 Socket Low Head Cap Fasteners |
M4 to M20 |
10.9 |
|||
Titanium Grade 2 Socket Head Shoulder Fasteners |
M6 to M24 |
012.9 |
B18.3.3M |
||
Titanium Grade 2 Countersunk Socket Head Fasteners |
M3 to M20 |
012.9 |
B18.3.5M |
10642 |
F835M |
Titanium Grade 2 Button Head Socket Fasteners |
M3 to M12 |
012.9 |
B18.3.4M |
7380 |
F835M |
Titanium Grade 2 Flange Button Head Socket Fasteners |
M3 to M10 |
012.9 |
F835M |
||
Titanium Grade 2 Knurled Point Socket Set Fasteners |
M3 to M20 |
45H |
B18.3.6M |
4029 |
F912M |
Titanium Grade 2 Flat Point Socket Set Fasteners |
M6 to M12 |
45H |
B18.3.6M |
4026 |
F912M |
Titanium Grade 2 Dog Point Socket Set Fasteners |
M3 to M20 |
45H |
B18.3.6M |
4028 |
F912M |
Titanium Grade 2 Cone Point Socket Set Fasteners |
M3 to M12 |
45H |
B18.3.6M |
4027 |
F912M |
Titanium Grade 2 Plain Point Socket Set Fasteners |
M3 to M20 |
45H |
B18.3.6M |
4029 |
F912M |
Titanium Grade 2 Taper Pressure Plug |
M8 to M22 |
– |
