Specification : ASTM B363 / ASME SB363
Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25 : Buttwelding Ends
ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range : ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size : 1/2″ – 10″
Welded Butt Weld Fittings Size : 1/2″ – 48″
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / Welded / Fabricated
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| Grade | C | N | O | H | Ti | Fe |
| Ti Gr.5 | 0.10 max | 0.05 max | 0.25 max | 0.015 max | Bal | 0.40 max |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Titanium Gr 5 Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

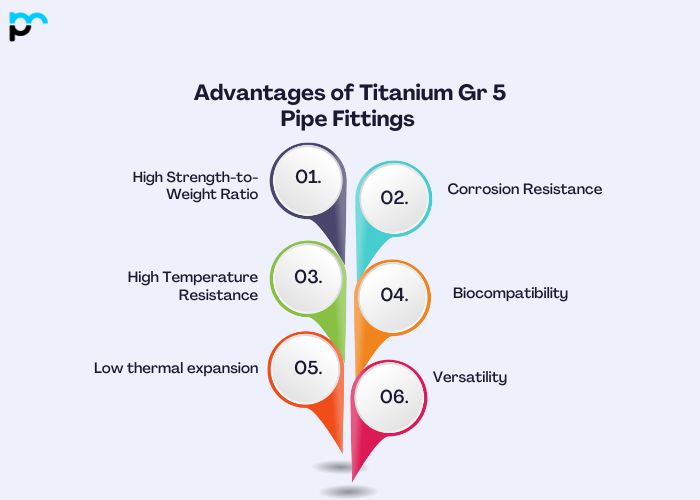

High Strength-to-Weight Ratio: Titanium Grade 5 is known for its exceptional strength-to-weight ratio, making it ideal for applications that require lightweight materials without consuming strength. This quality is particularly useful in the aerospace and automotive industries, where weight reduction is important.
Corrosion Resistance: Titanium Grade 5 demonstrates excellent corrosion resistance, especially in seawater, chemical plants, and offshore oil and gas platforms. This corrosion resistance ensures durability and reliability, reducing maintenance costs and downtime.
High Temperature Resistance: Titanium Grade 5 can withstand high temperatures, making it suitable for applications involving high temperatures, such as air filters, heat exchangers and industrial components
Biocompatibility: Titanium grade 5 is biocompatible, which means it is non-toxic and inert in the human body. This property makes it desirable for medical implants, including surgical devices, dental prostheses and dental implants.
Low thermal expansion: Titanium Grade 5 has a low coefficient of thermal expansion, meaning minimal expansion and contraction with temperature changes. This property reduces the risk of design instability in applications with heat at the bottom of each.
Titanium Gr 5 Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemicals: Titanium Grade 5 pipe fittings are widely used in the chemical industry where environmental corrosion resistance is required. These filters are highly acid or alkaline-resistant, making them ideal for drug transport and storage applications.
Aerospace and aircraft manufacturing: Titanium’s high strength and weight make it a desirable candidate for aerospace applications. Pipe made from grade 5 titanium is used in aircraft hydraulic systems, fuel lines, and other critical applications where lightweight, durable materials are required.
Marine Applications: Titanium grade 5 pipe fittings are corrosion-resistant in saltwater environments, making them suitable for marine applications. They are used in desalination plants, marine platforms, shipbuilding, and other marine structures.
Medical devices: Titanium’s biocompatibility and corrosion resistance make it an excellent material for medical implants and devices. Class 5 titanium pipe fittings can be used in medical gas delivery systems, implantable devices and surgical instruments.
Oil and Gas Industry: In the oil and gas sector dominated by harsh operating conditions, titanium grade 5 fittings are used in pipelines, offshore rigs and processing equipment due to their corrosion resistance and superior strength in these environments, so They have a great advantage.
Operating environment: Determine the conditions under which the pipelines will operate. Consider factors such as temperature, pressure, wear and tear, and the use of chemicals or seawater. Titanium Grade 5 is known for its corrosion resistance and excellent durability but ensures it is compatible with specific environmental conditions.
Size and Dimensions: Specifies the size and dimensions of pipe fittings required for your application. Consider pipe size, wall thickness, and fitting type (e.g. elbow, tee, reducer). Ensure that the fitting meets the required specifications and standards for compatibility with the existing piping system.
End connections: Consider the type of end connections required for pipe fittings, such as threaded, socket welded, butt welded, or flanged connections, to ensure compatibility with mating components and the method of installation in your piping system meet.
Pressure rating: Check the pressure of titanium grade 5 pipe fittings to ensure they can withstand the operating pressures of your system. Select fittings with appropriate pressure ratings that meet or exceed the requirements of your application to ensure safety and reliability.
Quality and certification:
Choose titanium grade 5 pipe fittings from reputable manufacturers with a track record of quality manufacturing.
Ensure the fitting conforms to relevant industry standards and specifications, such as ASTM, ASME, or ISO standards.
Examine fittings with testimonials or documentation to assure content quality and traceability.
Yes, Titanium Grade 5 pipe fittings can be recycled after use. Titanium is highly recyclable, and its properties remain intact through recycling processes. Recycling reduces waste, energy consumption, and environmental impact, making it a sustainable choice for titanium Grade 5 products, including pipe fittings.
