Home > Titanium Valve

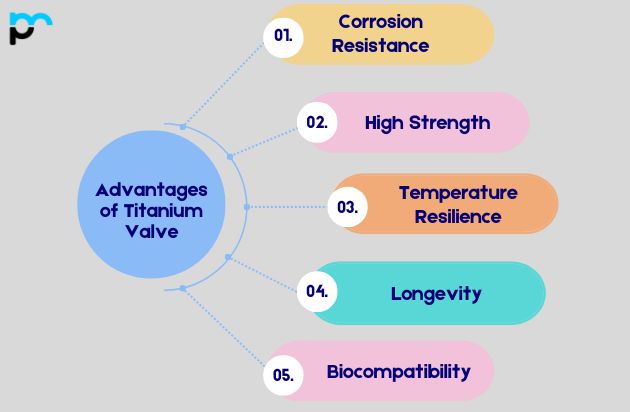

Titanium valves are known for their exceptional durability, corrosion resistance and light weight, making them ideal for demanding industrial applications. These valves excel in harsh environments, and chemical, marine, air, and space services are included. Resistant to extreme temperatures and pressures, titanium valves ensure reliability and durability. In Dubai, UAE, critical water management systems are relied upon for durability and efficiency.
| Material | Titanium |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature | -29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter | DN40-DN300 handle lever DN350-DN1200 gear box |
| Operation Temperature | -10°C~150°C |
| Grade | Ti | C | Fe | H | N | O |
| Ti Grade 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
| Grade | Ti | C | Fe | H | N | O |
| Ti Grade 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Titanium Valve as per DIN, ISO, JIS or ANSI Standard.
Titanium Valve applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
When installing a titanium valve, ensure proper alignment and secure connections to prevent leaks and ensure optimal performance. Select the appropriate valve size and pressure rating to match the system’s requirements. Verify fluid compatibility to avoid corrosion or chemical reactions. Ensure the valve is correctly oriented for the intended flow direction. Provide adequate space for maintenance and inspection to facilitate regular checks, ensuring long-term efficiency and reliability in demanding applications.
