Super Duplex Steel S32760 Forgings

Home > Super Duplex Steel > Super Duplex Steel S32760 Forgings

Super Duplex Steel S32760 Forgings Manufacturer Supplier Exporter in Abu Dhabi, UAE

Super Duplex Steel F55 Forged Fittings Price In UAE, Super Duplex Steel S32760 Forged Fittings Supplier In UAE.

Table of Contents

Our company takes pride in delivering an extensive array of Super Duplex Steel S32760 Forgings, sourced carefully from esteemed vendors known for their proficiency in crafting bespoke, high-grade super duplex steel solutions. These precision-engineered forgings serve as essential components across a myriad of industries, offering remarkable adaptability in dimensions, grades, and specifications to meet a wide spectrum of customer needs. Highly regarded in sectors including oil and gas, maritime, and chemical processing, our superior Super Duplex Steel S32760 Forgings exhibit outstanding resistance to corrosion and erosion. With their duplex microstructure, these forgings ensure unparalleled robustness and longevity, guaranteeing consistent mechanical attributes throughout the forged structure.

Super Duplex Steel S32760 Forgings Specifications

Specifications : ASTM A182 & ASME SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

Grades : S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

Mechanical Properties of Super Duplex Steel S32760 Forgings

GradesDensity (g/cm 3)Density (lb/in 3)Melting Point (°C)Melting Point (°F)
S32750 / S327607.80.28113502460

Super Duplex Steel S32760 Forgings Chemical Composition

GradeCMnSiPSCrMoNiNFe
S327500.030 max1.20 max0.80 max0.035 max0.020 max24.00 – 26.003.00 – 5.006.00 – 8.000.24 – 0.3258.095 min
S327600.05 max1.00 max1.00 max0.030 max0.010 max24.00 – 26.003.00 – 4.006.00 – 8.000.20 – 0.3057.61 min

Global Supplier of Super Duplex Steel F60 Socket Weld Fittings, ASME 16.11, MSS SP-79, 83, 95, 97 FORGED In Dubai, UAE.

Top Super Duplex Steel S32760 Forgings Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Super Duplex Steel S32760 Forgings as per DIN, ISO, JIS or ANSI Standard.

Get the best price from Super Duplex Steel S32760 Forgings manufacturers & stockist in UAE, check Super Duplex Steel Forgings price per kg in Dubai

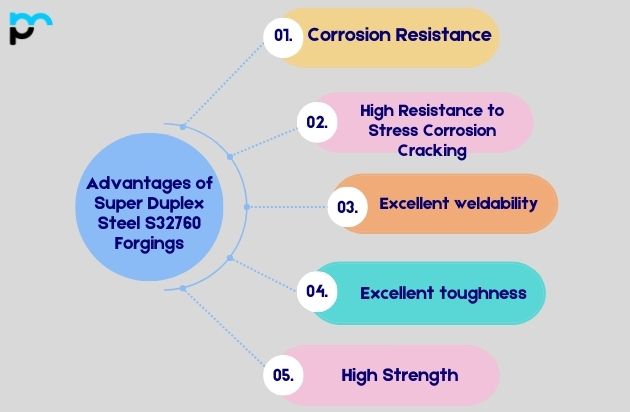

Advantages of Super Duplex Steel S32760 Forgings

  • Corrosion Resistance: One of the main advantages of Super Duplex Steel S32760 is its exceptional corrosion resistance. It offers resistance to various corrosive agents, including high-chloride atmospheres, making it suitable for harsh environments such as marine environments, chemical processing, and the oil and gas industry in various fields.

  • High Resistance to Stress Corrosion Cracking (SCC): Super Duplex Steel S32760 exhibits high resistance to stress corrosion cracking. This is especially important in applications where the material is subjected to high tensile stresses in corrosive environments.

  • Excellent weldability: Despite its high alloy content, Super Duplex Steel S32760 retains excellent weldability, making it easier to manufacture and weld. This property is important in many applications where complex designs or structures are required.

  • Excellent toughness: In addition to high strength, Super Duplex Steel S32760 exhibits excellent toughness, even at low temperatures. This makes it suitable for use in cryogenic applications where the mechanical properties of materials need to be checked under high humidity conditions.

  • High Strength: Super Duplex Steel S32760 provides superior tensile and yield strength, making it suitable for applications requiring strength and toughness. This high strength allows thinner parts to be used, reducing weight and cost while maintaining structural integrity.

Types of Super Duplex Steel Forgings

ASTM A182 Super Duplex Steel Forged 90 Degree Elbow
ASTM A182 Super Duplex Steel Forged 45 Degree Elbow
ASTM A182 Super Duplex Steel Forged Socket Weld Tee
ASTM A182 Super Duplex Steel Forged Socket Weld Half Coupling
ASTM A182 Super Duplex Steel Forged Socket Weld Full Coupling
ASTM A182 Super Duplex Steel Forged Socket Weld Cross

Stockholder of Super Duplex Steel F52 Threaded Plug Price In UAE, ASME SA182M Super Duplex Steel F53 Class 6000 Fittings Wholesaler In Dubai, UAE.

Super Duplex Steel S32760 Forgings Uses

Application Industry

Super Duplex Steel Super Duplex Steel S32760 Forgings Use Forgings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Automotive Industry

Construction Sector

Aerospace Applications

Oil and Gas Industry

  • Oil and Gas Industry: Super-duplex steel networks are widely used in the oil and gas industry, especially in offshore platforms, subsea pipelines, acid gases (containing hydrogen sulfide), seawater and other corrosive materials . . . . environmental and equipment exposures

  • Marine Applications: Super Duplex steel is widely used in marine environments for applications such as propeller shafts, marine conveyance systems, and offshore structures due to its excellent resistance to marine corrosion and trenches

  • Pulp and Paper Industry: In the pulp and paper industry, S32760 mesh is used for equipment such as digester bleach tanks piping systems that need to resist corrosion due to the presence of chemicals and high temperatures

  • Desalination plants: Super duplex steel converts seawater into potable water. Corrosion resistance to chlorides and high temperatures makes this material suitable for various applications in desalination equipment.

  • Chemical applications: Due to its resistance to various chemical corrosives, S32760 meshes have applications in various chemical industry applications, including moulds, reactors, and piping systems that handle corrosive acids, alkalis, and solvents.

How to Choose the Right Super Duplex Steel S32760 Forgings

  • Understand the application requirements: Identify the specific applications for which the web browsers will be used. Consider factors such as temperature, pressure, corrosion resistance, and mechanical requirements.

  • Quality and certification: Ensure forgings meet industry standards and certifications. Ensure material compliance with relevant specifications such as ASTM A182/A479 for forgings or ASTM A995 for castings. In addition, certifications such as NORSOK MDS D57 in the oil and gas industry can provide quality assurance.

  • Mechanical properties: Consider the mechanical properties that are important to your application, such as tensile strength and shock resistance. S32760 provides high mechanical efficiency, which is useful in power-critical system applications.

  • Corrosion Resistance: Check where forges will work. Super duplex steel S32760 is known for its corrosion resistance, especially in chloride environments, making it suitable for use in the marine, chemical and oil and gas industries.

  • Features: Super Duplex Steel S32760 provides excellent corrosion resistance, strength, and weldability. However, it is important to check if these properties match the needs of your application. For example, if special corrosion resistance is required in harsh environments, S32760 may be a good choice.

Are Super Duplex Steel S32760 Forging Susceptible to galvanic corrosion?

Super duplex steel S32760 forgings are less susceptible to galvanic corrosion compared to other materials due to their balanced composition. However, in certain aggressive environments with large potential differences, galvanic corrosion may still occur, necessitating proper material selection and corrosion prevention measures.

FAQ (Frequently Asked Questions)

Are Super Duplex Steel S32760 forgings suitable for hygienic and sanitary applications?

Yes, Super Duplex Steel S32760 forgings are suitable for hygienic and sanitary applications due to their exceptional corrosion resistance, high strength, and excellent weldability. They meet stringent requirements for cleanliness, making them ideal for industries such as food processing, pharmaceuticals, and biotechnology.



Can Super Duplex Steel S32760 forgings be recycled after use?

Yes, Super Duplex Steel S32760 forgings can be recycled after use. They are highly recyclable due to their composition, which typically includes elements like chromium, nickel, molybdenum, and nitrogen. Recycling helps conserve resources, reduces environmental impact, and supports sustainable practices in various industries.

Can Super Duplex Steel S32760 forgings be used for underground applications?

Yes, Super Duplex Steel S32760 forgings are suitable for underground applications. Their superior corrosion resistance, high strength, and resistance to chloride-induced stress corrosion cracking make them ideal for underground environments, such as pipelines, offshore structures, and deep-sea installations, where harsh conditions prevail.
