Explore our selection of Zeron 100 Bolts, designed to meet various industries’ strength and flexibility needs. Our bolts are highly regarded for their quality and long-lasting performance, meeting industry standards for tough conditions. We prioritize customer satisfaction by offering tailored solutions, competitive prices, and timely delivery. Boost your business with our reliable products, backed by our commitment to excellence.
| UNS S32760 Fg Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
|---|---|
| Zeron 100 Threaded Rod Standard: | ANSI – American National Standards Institute
|
| Zeron 100 Fasteners Material Specification | Zeron 100 Fasteners , UNS S32760 Bolts |
| S32760 Fasteners / Bolts Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| 1.4501 UNS S32760 Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length of S32760 Hex Bolt | 3 mm to 200 mm |
| Source of raw materials to manufacture 1.4501 UNS S32760 Screw | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| Zeron 100 Hex Bolt Thread | Metric Coarse |
| S32760 bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Zeron 100 Bolts finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| SCOPE |
|
| Zeron 100 Nut In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| DIN 1.4501 bolting materials Surface Coating: |
|

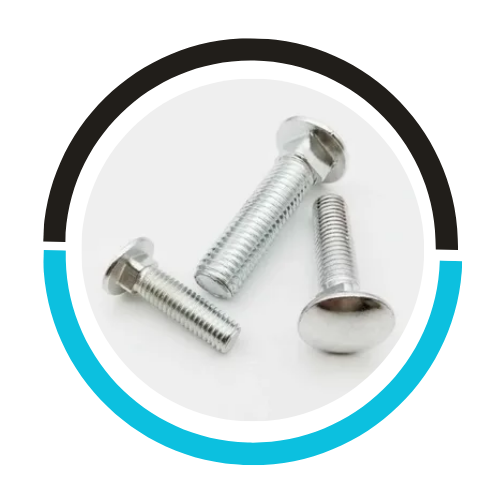

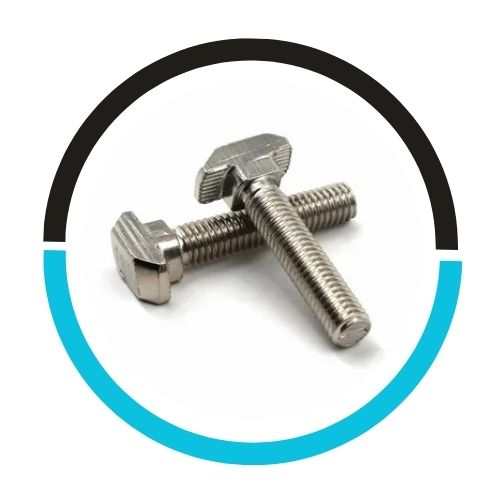

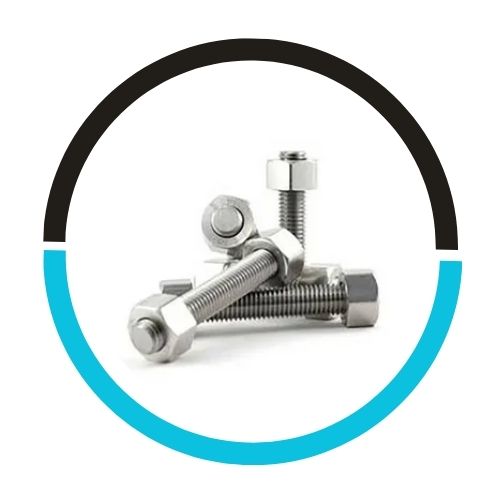

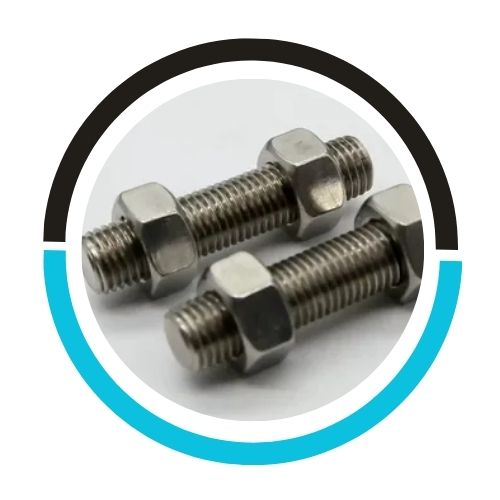

| Super Duplex UNS S32760 Bolts types | Zeron 100 Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| ASTM A479/a276 UNS S32760 Nut types | Zeron 100 Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc. |
| Zeron 100 Screws types | Zeron 100 Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc. |
| S32760 Washer types | Zeron 100 Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer in India |
| Zeron 100x Fasteners Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Ready stock available metric Zeron 100 Bolts |
|
| % | Cr | Ni | Mo | Cu | W | C | N | Mn | Si | P | S | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 24 | 6 | 3 | 0.5 | 0.5 | – | 0.2 | – | – | – | – | – |
| Max | 26 | 8 | 4 | 1 | 1 | 0.03 | 0.3 | 1 | 1 | 0.030 | 0.010 | Balance |
| Mechanical & Physical Properties | -70°C | -46°C | 21.1 °C | 93.3°C | 148.9 °C | 204.4 °C | 250 °C | 300°C |
|---|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength, MPa | – | – | 750 | 670 | 620 | 610 | 600 | 590 |
| 0.2% Yield Strength, MPa | – | – | 550 | 430 | 400 | 380 | 370 | 360 |
| Reduction of area % | – | – | – | – | – | – | – | – |
| Elongation % | – | – | 25 | – | – | – | – | – |
| Charpy Impact V-notch /J | >45 | >45 | 100 | – | – | – | – | – |
| Coefficient of Thermal Expansion /µm/m°C | – | – | – | 12.8 | – | 13.3 | – | 13.8 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | – | 11.094 | 12.384 | 13.244 | 14.018 | 14.878 | 15.652 |
| Modulus of Elasticity / GPa | – | – | 200 | 194 | – | 186 | – | 180 |
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNESS | ACROSS THE FLATS | ACROSS CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Zeron 100 Bolts as per DIN, ISO, JIS or ANSI Standard.
Zeron 100 Bolts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Selecting the right Zeron 100 bolts involves considering factors like the environment (corrosive or high temperature), load requirements, and specific application needs. It is crucial to assess compatibility with the materials being fastened and ensure proper sizing and thread pitch. Consulting with a materials expert or referring to manufacturer specifications can aid in making the appropriate selection for optimal performance and longevity.
