Home > Other Material > ASTM A193 B8 CL3 Bolts
Material | Specification | Standards | Size | Length |
ASTM A193 B8 CL3 Bolt
| IS BS ASTM | DIN, ISO, JIS, GB, IS, BS, ASTM | M 02 to M 160 | 3 mm to 200 mm |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
| B8 CL3 | Up to 2-1/2 | 125 | 105 | 16 | 50 |
| 2-5/8 – 4 | 115 | 95 | 16 | 50 | |
| 4-1/8 – 7 | 100 | 75 | 18 | 50 | |
| B8 CL3 Class 1 | All | 75 | 30 | 30 | 50 |
| B8M CL3 Class 1 | All | 75 | 30 | 30 | 50 |
| B8 CL3 Class 2 | Up to 3/4 | 125 | 100 | 12 | 35 |
| 7/8 – 1 | 115 | 80 | 15 | 35 | |
| 1-1/8 – 1-1/4 | 105 | 65 | 20 | 35 | |
| 1-3/8 – 1-1/2 | 100 | 50 | 28 | 45 | |
| B8M CL3 Class 2 | Up to 3/4 | 110 | 95 | 15 | 45 |
| 7/8 – 1 | 100 | 80 | 20 | 45 | |
| 1-1/8 – 1-1/4 | 95 | 65 | 25 | 45 | |
| 1-3/8 – 1-1/2 | 90 | 50 | 30 | 45 |
| Element | B8 CL3 | B8 CL3 | B8M CL3 |
| Carbon | 0.37 – 0.49% | 0.08% max | 0.08% max |
| Manganese | 0.65 – 1.10% | 2.00% max | 2.00% max |
| Phosphorus, max | 0.035% | 0.045% | 0.045% |
| Sulfur, max | 0.040% | 0.030% | 0.030% |
| Silicon | 0.15 – 0.35% | 1.00% max | 1.00% max |
| Chromium | 0.75 – 1.20% | 18.0 – 20.0% | 16.0 – 18.0% |
| Nickel | 8.0 – 11.0% | 10.0 – 14.0% | |
| Molybdenum | 0.15 – 0.25% | 2.00 – 3.00% |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These ASTM A193 B8 CL3 Bolts as per DIN, ISO, JIS or ANSI Standard.

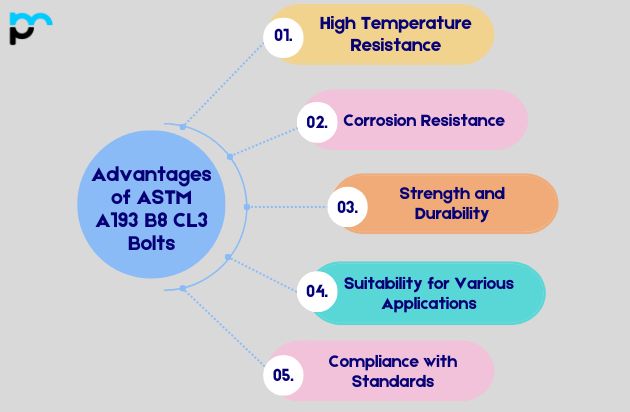

High Temperature Resistance: These bolts are made from AISI 347 stainless steel, which offers excellent resistance to high temperatures. This makes them suitable for applications where exposure to elevated temperatures is a concern.
Corrosion Resistance: AISI 347 stainless steel provides good corrosion resistance, especially in environments where oxidation and sulfidation resistance are required. This ensures longevity and reliability in harsh operating conditions.
Strength and Durability: ASTM A193 B8 Class 3 bolts are manufactured to meet specific mechanical properties, including tensile strength and hardness requirements. This ensures they can withstand high stress and loads without deformation or failure.
Suitability for Various Applications: These bolts are commonly used in industries such as oil and gas, chemical processing, and power generation, where high-pressure and high-temperature conditions are prevalent. They are also suitable for applications requiring high reliability and safety.
Compliance with Standards: ASTM A193 B8 Class 3 bolts meet rigorous standards set by ASTM International, ensuring consistency in quality, performance, and safety. Compliance with these standards provides assurance of reliability and suitability for critical applications.
ASTM A193 B8 CL3 Bolts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
