| Specification : | ASTM B 363 / ASME SB 363. |
| Dimensions : | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43. |
| Size : | ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Schedule : | SCH 10, SCH20, SCH30, SCH40 |
| Types : | Seamless / ERW / Welded / Fabricated |
| Grades : | Titanium Gr 1, Titanium Gr 2, Titanium Gr-5, Titanium Gr 7 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Titanium Pipe Fittings | Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Pipe Fittings | Ti | C | Fe | H | N | O | Al | V | |
| 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Titanium Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

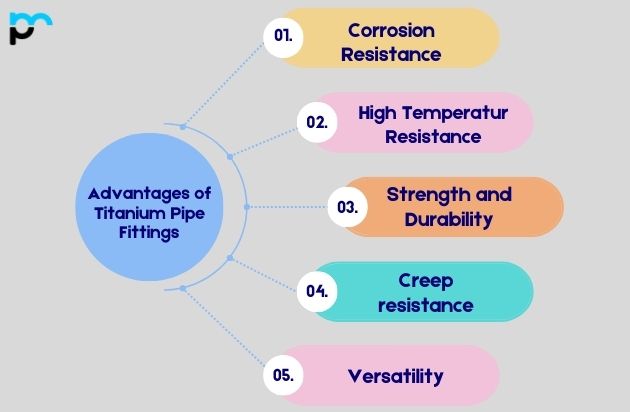

Resistance to water: Titanium exhibits exceptional corrosion, especially in aggressive environments such as seawater, acidic solutions, and chemical reactions.This resistance makes titanium pipe fittings suitable for industrial use with corrosion being a major concern.
High strength-to-weight ratio: Titanium has a high strength-to-weight ratio, making it much lighter than steel but maintaining good strength and durability where weight reduction is needed , such as in the aerospace, automotive and marine industries, these assets are useful.
High Temperature Resistance: Titanium maintains its strength and integrity at elevated temperatures, making it suitable for use in high-temperature applications, such as heat exchangers, air a exposed to air and high temperature operating equipment
Biocompatibility: Titanium is biocompatible and non-toxic, making it suitable for use in medical implants, surgical instruments and medical devices Its inert and corrosion-resistant properties in the human body aid its consumption great role in medicine.
Low-temperature expansion: Titanium exhibits low thermal expansion, reducing shape changes under temperature changes. This property is useful in applications where dimensional stability is important, such as aerospace materials and precision engineering.
Manufacturing efficiency: Titanium is easily manufactured using conventional processes such as machining, welding and fabrication. This manufacturing simplicity enables the development of complex designs and customized products according to specific application requirements.
Longevity and Durability: Titanium pipe fittings have a long service life due to their corrosion resistance, high strength and durability. They provide reliable performance and require minimal maintenance over their service life, reducing downtime and maintenance costs.
Environmental sustainability: Titanium is environmentally friendly and recyclable, contributing to sustainable practices in environmentally sensitive industries. Collision is a concern. Titanium recycling reduces energy consumption compared to mainstream processes and conserves natural resources.
Versatility: Titanium pipe fittings are versatile and can be used in industries such as aerospace, marine, chemical, medical, and automotive, where their unique combination of features provides the greatest advantage
Titanium Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Aerospace Industry: Titanium pipe fittings are extensively used in aircraft and spacecraft manufacturing for fuel lines, hydraulic systems, building materials, etc. Their lightweight yet durable nature contributes to better fuel efficiency, and they work in space applications.
Chemical applications: Titanium pipe fittings are used in the chemical industry to handle volatile chemicals and high-temperature liquids. It is used in reactors, heat exchangers, piping systems and other equipment where corrosion resistance and durability are essential.
Marine Applications: Titanium pipe fittings are ideal for marine applications due to their resistance to seawater and harsh marine environments, so they are used in shipbuilding, offshore platforms, installation of desalination plants, manufacture marine piping, heat exchangers, exhaust systems and other products
Medical Industry: Titanium pipe fittings are used in medical devices and equipment due to their biocompatibility and non-toxicity. It is used in surgical instruments, implants and medical devices where corrosion resistance, strength and compatibility with the human body are required.
Power generation: Titanium pipe fittings are used in power plants, including nuclear power, fossil fuels, and renewable energy. It is used in applications such as heat exchangers, condensers, and piping systems that require corrosion resistance and high-temperature operation
Oil and Gas Industry: Titanium pipe fittings find applications in the oil and gas sector for offshore drilling rigs, subsea pipelines and processing equipment Used in high levels of corrosion and erosion environments, it delivers long-term reliability, performance and availability.
Automotive Sector: In the automotive industry, titanium pipe fittings are used for applications such as exhaust systems, turbochargers and fuel lines. Their lightweight nature contributes to better fuel economy and efficiency in vehicles.
Identify application requirements: Understand typical operating conditions, including temperature, pressure, environmental corrosion, and water characteristics. This information will help determine the appropriate titanium levels and information requirements for pipe fittings.
Consider corrosion resistance: Titanium alloys provide excellent corrosion resistance, but resistance can vary depending on the alloy composition and environmental conditions. Consider the ocean of water, acid, or alkali exposure and choose the correct corrosion-resistant titanium grade for your application.
Check strength and durability: Titanium alloys exhibit superior strength and durability, but different compositions can provide different mechanical properties. Consider the strength requirements of your project, such as pressure levels and structural integrity, and choose a titanium pipe filter that meets these requirements.
Size and Design Requirements: Choose titanium pipe fittings of size and thickness that match the specifications of your piping system. Ensure compatibility with existing pipe sections and consider nominal pipe size (NPS), outside diameter (OD), and wall thickness.
End connections: Consider end connections to titanium pipelines, such as welded, threaded, or flanged ends, depending on installation requirements and compatibility with other pipe components. Ensure seals and connections are tested and maintained to prevent leaks or failure.
Materials Use and Compliance: Ensure titanium pipe fittings comply with relevant industry standards and specifications, such as ASTM, ASME, ANSI, and DIN standards. Ensure material certification is included with the fitting to confirm the quality and compliance of the titanium alloy used.
Construction and Installation Requirements: Evaluate the construction and installation requirements for titanium pipe, including welding techniques, machinery, and assembly methods and select materials that conform to construction practices and methods around which it is arranged.
Consider long-term maintenance: Choose titanium pipe fittings that provide long-term stability and require minimal maintenance throughout life. Factors such as corrosion resistance, material strength, and resistance to fatigue or corrosion must be considered to ensure reliable and durable performance.
Titanium pipe fittings are generally more expensive than fittings made from other materials due to the high cost of titanium and the complex manufacturing processes involved. However, their long-term durability and resistance to corrosion may justify the initial investment
