Home > Invar 36 Sheet and Plates
| Standards : | ASTM F1684 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Co | Fe | Mo | Al |
| Invar 36 | .008 max | .30 max | .15 max | .001 max | .35 max | 63.0 max | .02 max | .03 max |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Invar 36 | KSI (MPa) 63 / (430) Max | KSI (MPa)-38 / (260) Max | 30 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Invar 36 Sheet and Plates as per DIN, ISO, JIS or ANSI Standard.

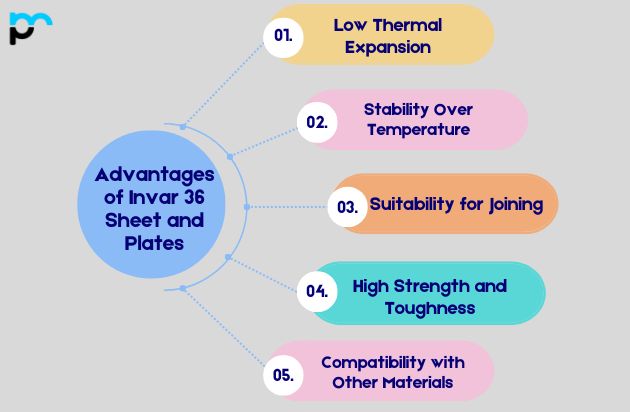

Low Thermal Expansion: One of the primary advantages of Invar 36 is its extremely low coefficient of thermal expansion. This means it expands and contracts minimally with temperature changes, making it ideal for applications where dimensional stability is critical, such as in precision instruments and scientific devices.
Stability Over Temperature: Invar 36 maintains its dimensions and shape over a wide temperature range, from cryogenic temperatures up to around 400°C (750°F). This stability is essential in environments where temperature variations could otherwise cause materials to warp or distort.
Suitability for Joining: Invar 36 can be welded using conventional methods, which enhances its versatility in manufacturing processes. This allows for the fabrication of complex shapes and structures without compromising its thermal expansion properties.
High Strength and Toughness: Invar 36 exhibits good mechanical strength and toughness, making it durable and reliable for various applications. It can withstand mechanical stress and vibrations without significant deformation.
Compatibility with Other Materials: It can be used in combination with other materials, including ceramics and other metals, due to its stable thermal properties. This makes it suitable for composite structures where different materials need to work together seamlessly.
Due to their exceptional properties, Invar 36 Sheet and Plates are essential components across many industrial sectors. Renowned for their corrosion resistance, they find widespread application in marine environments, enduring the rigours of saltwater exposure with longevity and reliability. In the construction industry, stainless steel fasteners play a pivotal role in structural assemblies, providing secure connections while maintaining structural integrity in outdoor and exposed settings.
