Home > Waspaloy Wire
| Standards : | ASTM B637, ASME SB637, ISO 9723, ISO 9724, ISO 9725, SAE AMS 5704, SAE AMS 5706, SAE AMS 5707, SAE AMS 5708, SAE AMS 5709, SAE AMS 5828, SAE MAM 5706, AECMA PrEN 2193, AECMA PrEN 2194, AECMA PrEN 2406, AECMA PrEN 2958, AECMA PrEN 2959, AECMA PrEN 2960, AECMA PrEN 3220 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Mo | C0 | Ai | Ti | B | Zr |
| Waspaloy | 0.10 max | 0.10 max | 0.15 max | 0.015 max | 0.10 max | 2.00 max | Balance | 18.00 – 21.00 | 5.00 max | 12.00 – 15.00 | 1.60 max | 3.25 max | 0.01 max | 0.08 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.296 lb/in3 (8.19 g/cm3 ) | 2425-2475°F (1330-1360°C) | 175 ksi | 120 ksi | 15% |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Waspaloy Wire as per DIN, ISO, JIS or ANSI Standard.

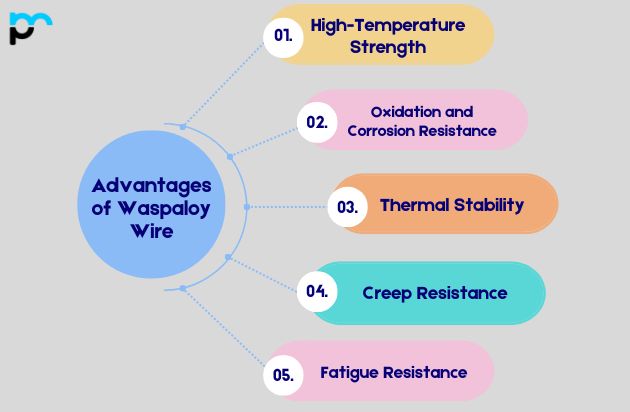

High-Temperature Strength: Waspaloy maintains its mechanical strength at elevated temperatures, often up to 1200°F (650°C) and higher. This makes it suitable for applications in aerospace and gas turbine engines.
Oxidation and Corrosion Resistance: The alloy’s composition includes elements like chromium, which enhance its resistance to oxidation and corrosion at high temperatures. This property is crucial for components exposed to harsh environments.
Thermal Stability: Waspaloy wire exhibits excellent thermal stability, retaining its mechanical properties and structural integrity under prolonged exposure to high temperatures.
Creep Resistance: The alloy offers superior creep resistance, which is the ability to resist deformation under mechanical stress over time at high temperatures. This is vital for components in engines and power generation where materials are under continuous stress.
Fatigue Resistance: Waspaloy wire has good fatigue resistance, making it suitable for applications where cyclic loading occurs. This is important in aerospace and automotive industries where materials undergo repeated stress cycles.
Due to their exceptional properties, Waspaloy Wire are essential components across many industrial sectors. Renowned for their corrosion resistance, they find widespread application in marine environments, enduring the rigours of saltwater exposure with longevity and reliability. In the construction industry, stainless steel fasteners play a pivotal role in structural assemblies, providing secure connections while maintaining structural integrity in outdoor and exposed settings.
