Home > Invar 42 Sheet and Plates
| Standards : | Per Chem Mil-I-23011C CL 7, Boeing D-33028, ASTM B753, ASTM F1684, ASTM F30 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Invar 42 | KSI (MPa) 36 / (248) | KSI (MPa) 71 / (490) | 40 % |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Invar 42 Sheet and Plates as per DIN, ISO, JIS or ANSI Standard.

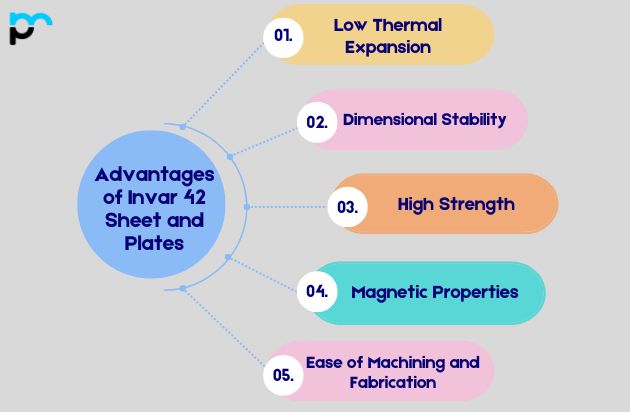

Low Thermal Expansion: One of the primary advantages of Invar 42 is its extremely low coefficient of thermal expansion (CTE). This property means that it expands and contracts very little with temperature changes, making it ideal for precision instruments and applications where dimensional stability across a range of temperatures is critical.
Dimensional Stability: Due to its low CTE, Invar 42 maintains its dimensions and shape over a wide temperature range. This stability is crucial in environments where changes in temperature could otherwise cause materials to expand or contract significantly.
High Strength: Invar 42 offers good mechanical strength and toughness, allowing it to withstand mechanical stresses and strains without deforming or failing easily. This makes it suitable for structural applications where both strength and stability are required.
Magnetic Properties: Invar 42 exhibits magnetic properties, particularly when subjected to cold working or machining processes. This property can be beneficial in applications where magnetic characteristics are needed alongside its dimensional stability.
Ease of Machining and Fabrication: Invar 42 can be machined relatively easily, although it requires tools and techniques appropriate for its specific characteristics. It can also be welded and formed using standard techniques, enhancing its versatility in manufacturing processes.
Due to their exceptional properties, Invar 42 Sheet and Plates are essential components across many industrial sectors. Renowned for their corrosion resistance, they find widespread application in marine environments, enduring the rigours of saltwater exposure with longevity and reliability. In the construction industry, stainless steel fasteners play a pivotal role in structural assemblies, providing secure connections while maintaining structural integrity in outdoor and exposed settings.
