Monel 400 Nuts

Home > Monel > Monel 400 Nuts

Monel 400 Nuts Manufacturer & Supplier in Dubai, UAE

Monel 400 Nuts, Monel 400 UNS N04000 Threaded Stud Nuts, Monel 400 Double Ended Nuts, Monel 400 Nuts Stockist in Dubai, UAE.

Table of Contents

Monel 400 Nuts are fasteners crafted from Monel 400, a nickel-copper alloy renowned for its exceptional resistance to corrosion, particularly in acidic and alkaline environments. These nuts offer high strength and durability, making them suitable for various applications, including marine equipment, chemical processing plants, and aerospace components. Monel 400 nuts provide reliable fastening solutions in challenging conditions where resistance to corrosion, erosion, and extreme temperatures is vital.

Monel 400 Nuts Specifications

Specifications ASTM F 467 ASME SF 467
Standard IS, ASTM, BS and all International Standards
Length 3 to 200 milimeter
Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Screw Type Monel 400 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types Monel 400 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc.
Washer Types Monel 400 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs Types Monel 400 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut Types Monel 400 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.

Mechanical Properties of Monel 400 Nuts

Properties Metric Imperial
Tensile strength(annealed) 517-620 MPa 75-90 ksi
Yield strength 172-345 MPa 25-50 ksi
Modulus of elasticity 179 GPa 26000 ksi
Poisson’s ratio 0.32 0.32

Monel 400 Nuts Chemical Composition

Element Content (%)
Nickel, Ni 63.00 min
Silicon, Si 0.5 max
Carbon, C 0.3 max
Sulphur, S 0.024
Copper, Cu 28-34
Iron, Fe 2.5 max
Manganese, Mn 2 max

Top Monel 400 Nuts Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer These Monel 400 Nuts as per DIN, ISO, JIS or ANSI Standard.

ASTM F467 Monel Alloy Nuts Supplier in Abu Dhabi, Monel Alloy 400 Hex Nuts, Monel N04400 Nuts, UNS N04400 Nuts, 400 Monel Nuts in Sharjah.

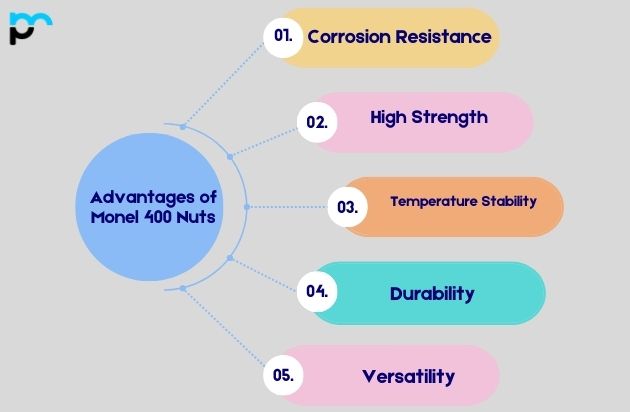

Advantages of Monel 400 Nuts

Advantages of Monel 400 Nuts
  • Corrosion Resistance: Monel 400 nuts excel in corrosive environments, resisting deterioration from acids, alkalis, and saltwater, making them ideal for marine applications.
  • High Strength: These nuts offer excellent mechanical strength, providing reliable fastening even under high-stress conditions.
  • Temperature Stability: Monel 400 nuts maintain their properties across a wide temperature range, ensuring stability in both hot and cold environments.
  • Durability: Known for their long-lasting performance, Monel 400 nuts are resistant to wear and erosion, extending the lifespan of fastening systems.
  • Versatility: Suitable for diverse industries such as chemical processing, aerospace, and oil and gas, Monel 400 nuts offer versatile fastening solutions.

Types of Monel 400 Nuts

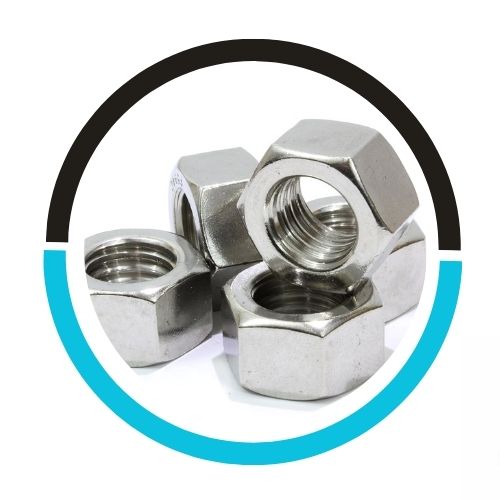

400-Monel-Alloy-self-locking-nuts-In-UAE
400 Monel Alloy self locking nuts

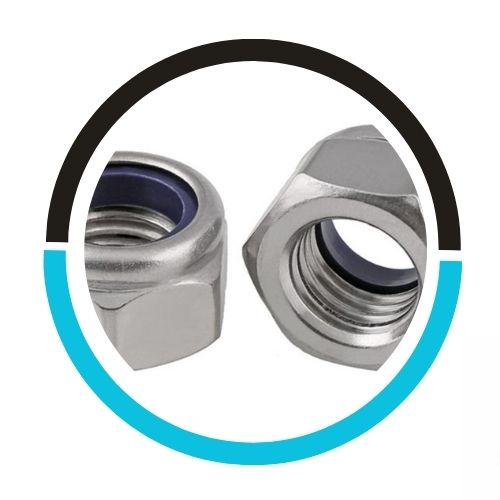

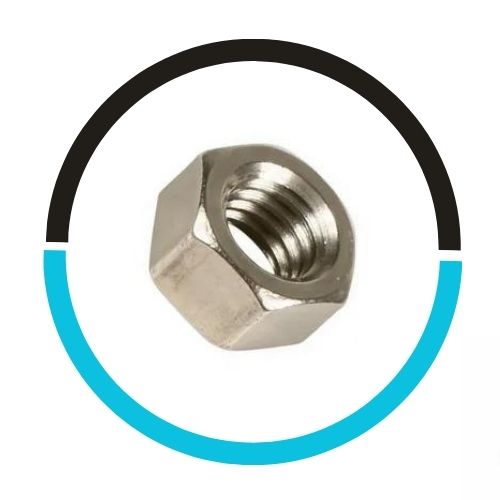

Monel Alloy 400 Hex Nuts
Monel Alloy 400 Heavy Hex Nuts

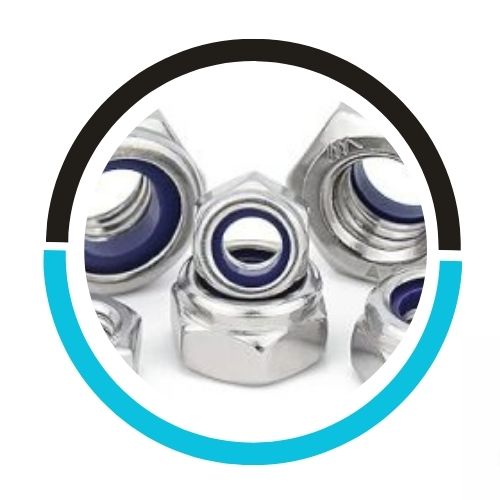

Monel-Alloy-400-Nylon-Insert-Nut-In-UAE
Monel Alloy 400 Nylon Insert Nut

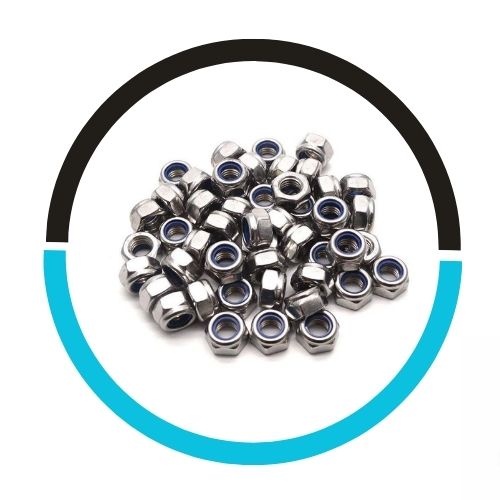

Monel-400-Heavy-Hex-Nuts-In-UAE
Monlel 400 Heavy Hex Nuts

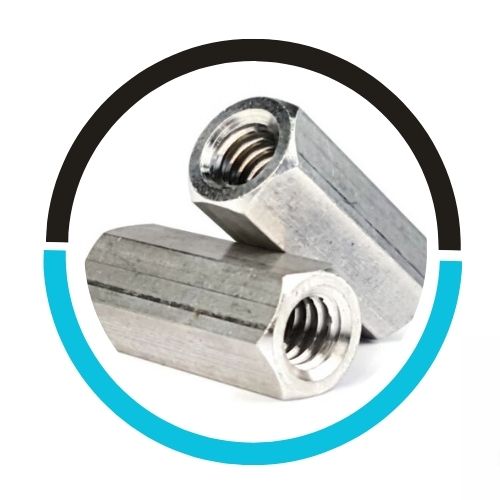

Monel-400-Coupler-Nuts-In-UAE
Monel 400 Coupler Nuts

Monel Alloy 400 High Tensile Heavy Hex Nuts in Dubai, Monel 400 2 Way Lock Nuts Price List in Dubai, Monel 400 Lock Nuts Supplier & Exporter in Sharjah.

Monel 400 Nuts Uses

Application Industry

Monel 400 Nuts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

  • Marine Applications: Monel 400 nuts are extensively used in marine environments due to their exceptional resistance to saltwater corrosion, making them ideal for shipbuilding, offshore platforms, and marine equipment.
  • Chemical Processing: These nuts are favored in chemical processing plants where resistance to corrosive chemicals and high temperatures is crucial, ensuring reliable fastening in reactors, vessels, and piping systems.
  • Aerospace Industry: Monel 400 nuts find applications in aerospace engineering, offering reliable fastening solutions for aircraft components, engines, and structural assemblies, where durability and high strength are paramount.
  • Oil and Gas Sector: In the oil and gas industry, Monel 400 nuts are utilized in drilling equipment, pipelines, and offshore platforms, providing secure fastening in harsh environments, including high-pressure and corrosive conditions.
  • Power Generation: Monel 400 nuts are employed in power plants for fastening turbines, boilers, and heat exchangers, where they withstand the corrosive effects of steam, chemicals, and high temperatures, ensuring reliable operation.

How to Choose the Right Monel 400 Nuts

  • Consider Application Requirements: Assess the specific environment and conditions in which the Monel 400 nuts will be used, such as exposure to corrosive chemicals, high temperatures, or seawater, to ensure they meet the required performance standards.
  • Size and Thread Specifications: Determine the appropriate size, thread pitch, and configuration of the Monel 400 nuts based on the corresponding bolts or studs they will be paired with, ensuring compatibility and proper fastening.
  • Strength and Load Capacity: Evaluate the mechanical strength and load-bearing capacity required for the application to select Monel 400 nuts that can withstand the expected stresses and loads without compromising integrity or safety.
  • Corrosion Resistance: Prioritize Monel 400 nuts known for their superior corrosion resistance, particularly in harsh environments such as marine, chemical processing, or offshore applications, to ensure long-term reliability and durability.
  • Certification and Standards: Choose Monel 400 nuts that comply with relevant industry standards and certifications, such as ASTM or ASME specifications, to guarantee quality, performance, and suitability for the intended application.

Are Monel 400 Nuts Recyclable?

Yes, Monel 400 nuts are recyclable. Monel 400 is a nickel-copper alloy known for its recyclability and sustainability. The recycling process involves melting down the alloy to reclaim the nickel and copper content, which can then be reused to produce new Monel 400 products, including nuts, bolts, and other fasteners. Recycling Monel 400 nuts not only conserves valuable resources but also reduces the environmental impact associated with traditional mining and production processes. Additionally, recycling Monel 400 helps to minimize waste and contributes to a more circular economy by extending the lifecycle of the material. Therefore, choosing Monel 400 nuts for applications where recyclability is a priority aligns with sustainability efforts and environmental stewardship.

FAQ (Frequently Asked Questions)

Can Monel 400 nuts be used in high-temperature applications?

Yes, Monel 400 nuts can withstand high temperatures and maintain their properties and performance across a wide temperature range, making them suitable for high-temperature applications such as in power generation and chemical processing.

What maintenance is required for Monel 400 nuts?

Monel 400 nuts require minimal maintenance due to their excellent corrosion resistance and durability. Regular inspection for signs of wear or damage is recommended, and any necessary cleaning or lubrication should be performed according to the manufacturer’s guidelines.

Can Monel 400 Nuts be used in marine environments?

Yes, Monel 400 nuts are highly resistant to corrosion from seawater, making them suitable for marine applications, such as shipbuilding and offshore platforms.
