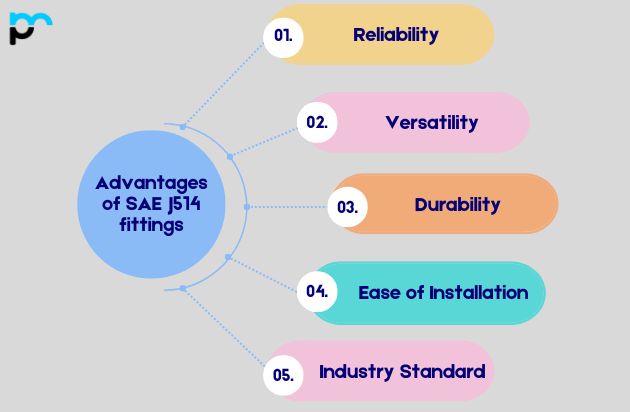

SAE J514 fittings are known for their reliability, versatility and robustness in hydraulic systems. Designed with a 37-degree flame for safe sealing, these materials absorb a variety of waters and pressures to ensure that they work hard in demanding environments and are easy to adjust and install, making them the preferred choice for efficient drainage solutions. Discover how SAE J514 fittings that enhance reliability and simplify hydraulic system maintenance and operation.
| BRAND | Pipingmart.ae |
| 37 DEGREE FLARE STANDARD | SAE J514 / ISO 8434-2 |
| MATERIAL | CS, MS, SS 304L , SS 304 ,SS 316L, SS 316 , SS 316TI ( 1.4571) , COPPER , BRASS , SUPER DUPLEX , DUPLEX , ALLOY 20, MONEL , INCONEL , 904L , HASTELLOY , TITANIUM , 6MO, ALUMNIUM |
| 37 DEGREE FLARE WORKING PRESSURE | 100 BAR TO 800 BAR |
| SIZE RANGE | 6 MM TO 42 MM, 1/8″ JIC TO 2″ JIC |
| BODY TYPE | FORGED, BAR STOCK |
| 37 DEGREE FLARE ACCESSORIES | O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT |
| O-RING & SEALS | NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE – (-60*C TO 240*) |
| 37 DEGREE FLARE SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| 37 DEGREE FLARE APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These SAE J514 Fittings as per DIN, ISO, JIS or ANSI Standard.
SAE J514 fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, SAE J514 fittings are generally recyclable. These fittings are commonly made from materials like stainless steel, carbon steel, or brass, all of which are recyclable metals. Recycling SAE J514 fittings helps conserve resources, reduce waste, and supports sustainable practices in manufacturing and engineering industries. Proper disposal and recycling methods ensure that these materials can be effectively reused or repurposed, contributing to environmental sustainability.
