Stainless Steel 410 Fasteners

HomeStainless Steel >Stainless Steel 410 Fasteners

Stainless Steel 410 Fasteners Manufacturer, Exporter and Supplier in Dubai, UAE.

Stainless Steel 410 Pocket Hole Screws Supplier In Dubai UAE, DIN 1.4104 Self-Tapping-Screw, DIN 1.4006 Star Washer Manufacturer And Supplier in Dubai UAE.

Table of Contents

Stainless Steel 410 Fasteners encompass a range of hardware essentials including bolts, screws, nuts, washers, and studs custom-built from Stainless Steel 410, a hardened and martensitic alloy renowned for its corrosion resistance and high tensile strength. Comprising primarily iron, chromium, and carbon, with additions of nickel and manganese, Stainless Steel 410 Fasteners excel in demanding environments where corrosion and abrasion are prevalent. Their robustness and durability render them indispensable in industries such as automotive, construction, and manufacturing, where reliability and longevity are paramount.

Stainless Steel 410 Fasteners Specifications

SpecificationsASTM A 193 / ASME SA 193
StandardDIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
SizeM3 – M100 | 3/6″ – 4″ | Custom Sizes
Fasteners Length3 mm – 200 mm | Custom Sizes
Nuts SizeM3 – M56 | 3/6″ to 2″ | Custom Sizes
Washers SizeM3 – M56 | 3/6″ to 2″ | Custom Sizes
DimensionsDIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads availableUNF, BSW, BSF, METRIC, UNC, or as required
Threads ConfigurationASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
FormHex, Threading, Square, Round as per Gauge Etc.
HeadHex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Neck typeHex, Square, Triangular, Oval & Knurled etc.
Surface CoatingBlack Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Manufacturing ProcessWire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing.

Stainless Steel 410 Fasteners Chemical Composition

GradeCMnSiPSCr
SS 4100.15 max1.00 max1.00 max0.04 max0.03 max11.5 – 13.5
SS 4200.15 max1.00 max1.00 max0.04 max0.03 max14.0 – 12.0
SS 4300.12 max1.25 max1.00 max0.06 max0.15 max18.0 – 16.0

DIN 1.4006 Star Washer Dealer In Dubai UAE, ASTM A193 SS 410 Grub Screw Manufacturer And Supplier In Dubai UAE.

Stainless Steel 410 Fasteners Mechanical Properties

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) max
Hardness
Brinell (HB) max
41065 (450)30 (205)2021796
4204802751695201
4304502052289183

Top Stainless Steel 410 Fasteners Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Contact us to get a quick quote for your requirement.

We offer Stainless Steel 410 Fasteners as per DIN, ISO, JIS or ANSI Standard.

410 SS 12 Point Nut Exporter In Dubai UAE, SS 410 Roofing Screws, UNS S43020 Drywall Screw manufacturer And Supplier In Dubai UAE.

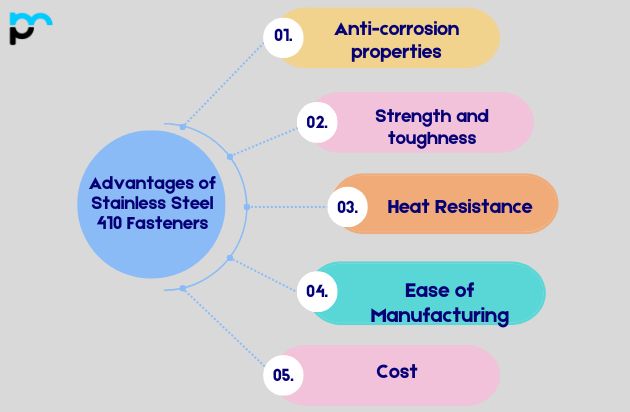

Advantages of Stainless Steel 410 Fasteners

  • Anti-corrosion properties: Stainless steel 410 contains chromium, which forms a protective oxide on its surface when exposed to oxygen, preventing rust and corrosion. This makes it suitable for use in a variety of environments with great coldness or chemical composition.
  • Strength and toughness: Stainless Steel 410 is a martensitic stainless steel known for its high strength, durability and corrosion resistance. This makes it ideal for applications requiring heavy-duty packaging or durability.
  • Heat Resistance: Stainless steel 410 maintains high mechanical temperature, making it suitable for applications where the packaging may be exposed to high temperatures or thermal cycles
  • Ease of Manufacturing: Stainless steel 410 can be easily manufactured in various shapes and sizes using conventional manufacturing processes such as machining, welding, cold forming, etc. This versatility allows customized packaging to meet specific requirements.
  • Cost: Stainless steel 410 is much more economical than other high-performance stainless steels but still offers good mechanical properties and corrosion resistance. This makes it worthwhile to choose for many applications; performance must be balanced against cost considerations

Types of Stainless Steel 410 Fasteners

Duplex Steel Fasteners

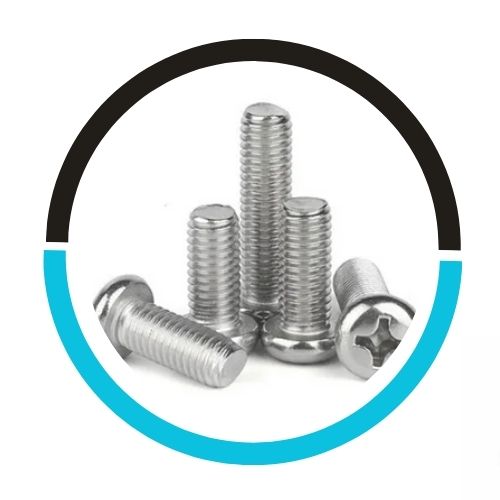

410 SS HEX HEAD BOLTS

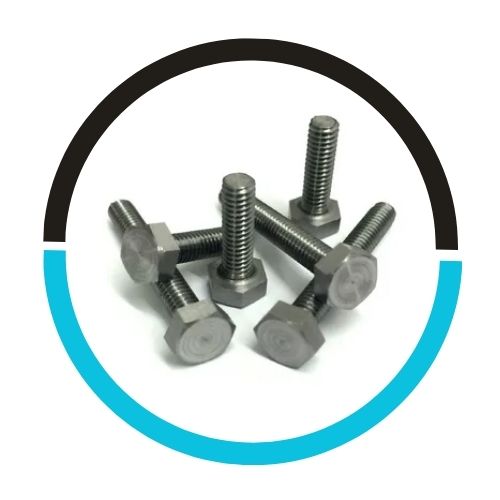

DIN 1.4104 SELF-TAPPING-SCREW
Duplex Steel Fasteners

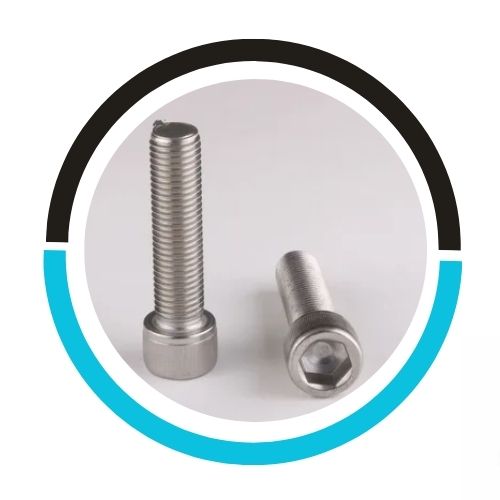

410 SS COUNTERSUNK BOLTS
SS 410 SPRING WASHER
Duplex Steel Fasteners

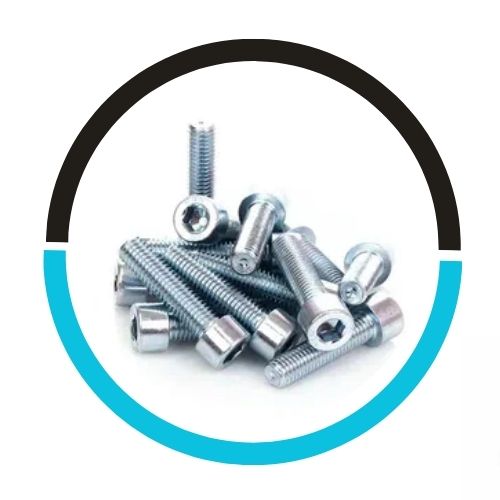

SS 410 STUD BOLTS
Duplex Steel Fasteners

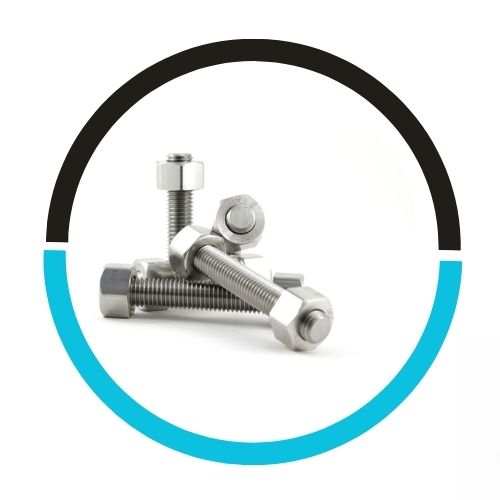

UNS S41000 CAPTIVE-NUTS

ASTM A193 SS 410 Grub Screw, 430 SS 12 Point Nut Manufacturer And Supplier in Dubai, UAE.

Stainless Steel 410 Fasteners Uses

Application Industry

Due to their exceptional properties Stainless Steel 410 Fasteners are essential components across many industrial sectors. Renowned for their corrosion resistance, they find widespread application in marine environments, enduring the rigours of saltwater exposure with longevity and reliability. In the construction industry, stainless steel fasteners play a pivotal role in structural assemblies, providing secure connections while maintaining structural integrity in outdoor and exposed settings.

Construction

Aviation Industry

Automotive Manufacturing

Power Generation Industry

  • Construction: Stainless steel 410 fasteners are commonly used in construction projects, including residential, commercial and industrial. They are also used for architectural connections, such as attachments to structures such as beams and columns.
  • Automotive Industry: 410 stainless steel fasteners are used to manufacture vehicles. They connect vehicle parts such as engines, chassis and internal components.
  • Marine applications: Due to their corrosion resistance properties, stainless steel 410 fasteners are used in the marine environment. They are used in boat building, ship repair, and other marine applications where exposure to salt water and extreme weather is common.
  • Oil and Gas Industry: Stainless steel 410 fasteners are used in the oil and gas industry for various applications, including offshore platforms, pipelines, and facilities. Their resistance to corrosion makes them suitable for corrosive environments.

How to Choose the Right Stainless Steel 410 Fasteners

  1. Application Requirements:

    • Determine the specific requirements of your application, including load capacity, environmental conditions (such as exposure to moisture, chemicals, or high temperatures), and desired longevity.
  2. Material Selection:

    • Stainless steel 410 is a martensitic stainless steel known for its corrosion resistance and strength. Ensure that stainless steel 410 is suitable for your application based on its resistance to corrosion, strength, and other mechanical properties.
  3. Fastener Type:

    • Choose the type of fastener (e.g., bolts, nuts, screws, washers) based on the application requirements and the specific joints or connections you need to secure.
  4. Size and Dimensions:

    • Determine the appropriate size, length, and thread dimensions of the fasteners based on the thickness of the materials being joined and the required clamping force. Ensure that the fasteners conform to relevant industry standards (e.g., ASTM, ANSI, DIN).

Are Stainless Steel 410 Fasteners magnetic?

Yes, Stainless Steel 410 Fasteners are generally magnetic due to their composition, which includes iron and a significant amount of chromium. While their magnetic properties may vary depending on factors like processing and heat treatment, they typically exhibit magnetic behavior.

SS 410 Spring Washer Stockist in Dubai UAE, 410 SS Hex Head Bolts Exporter in Dubai UAE , SS 410 T Nuts Supplier, DIN 1.4006 Torx Bolts Exporter in Dubai UAE

FAQ (Frequently Asked Questions)

Are Stainless Steel 410 Fasteners resistant to corrosion?

Yes, Stainless Steel 410 Fasteners offer good corrosion resistance, especially in mild environments. They contain chromium, which forms a passive oxide layer on the surface, providing protection against corrosion. However, they are not as corrosion-resistant as austenitic stainless steels and may experience corrosion in harsher conditions or when exposed to certain chemicals.

Can Stainless Steel 410 Fasteners be used in high-temperature applications?

Stainless Steel 410 Fasteners are suitable for moderate high-temperature applications, typically up to around 650°C (1200°F). While they offer good mechanical properties at elevated temperatures, prolonged exposure to higher temperatures can lead to reduced strength and potential embrittlement. For extreme high-temperature applications, other stainless steel grades may be more suitable.

Can Stainless Steel 410 Fasteners be recycled after use?

Yes, Stainless Steel 410 Fasteners are highly recyclable. Stainless steel is one of the most recycled materials globally, with a high scrap value. After use, Stainless Steel 410 Fasteners can be collected, sorted, and melted down for reuse in various applications, promoting sustainability and resource efficiency.
