Tongue and Groove Flanges

Home > Tongue and Groove Flanges

Tongue and Groove Flanges Manufacturer, Exporter and Supplier in Dubai, UAE

ANSI B16.5 Class 150 Tongue and Groove Flanges, ASME B16.5 Tongue and Groove Flanges , Groove and Tongue Flanges, Global Supplier of Tongue and Groove Flanges in Dubai, UAE.

Tongue and groove (T&G) flanges are important components of pipeline design, designed to optimize pressure control and ensure safe connections. Made from durable materials such as carbon steel, stainless steel and steel alloys, T&G flanges provide strength and reliable flexibility. Their unique tongue-groove design provides perfect alignment and a leak-proof seal, making them ideal for applications requiring tight seals. Widely used in electricity, oil, gas, and chemical applications, T&G flanges play an important role in system safety and operational efficiency. Known for their technical accuracy, durability, and long-term reliability, T&G flanges are currently essential in industrial pipeline installations.

Tongue and Groove Flanges Specifications

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Tongue And Groove Flange Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
ASME B16.5 Tongue And Groove Flange Size Chart	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Tongue And Groove Flange Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Tongue And Groove Flange
Tongue And Groove Flange Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Tongue And Groove Flange
UNI	6Bar 10Bar 16Bar 25Bar 40Bar Tongue And Groove Flange
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Tongue And Groove Flange
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Tongue And Groove Flange
EN	6Bar 10Bar 16Bar 25Bar 40Bar Tongue And Groove Flange
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most common types of Tongue And Groove Flange	Forged / Threaded / Screwed / Plate
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Production technique	Forged, Heat treated and machined
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations
Origin	Indian / West Europe / Japan / USA / Korean
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Tongue And Groove Flange Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Tongue And Groove Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Tongue And Groove Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Export to	Saudi Arabia, Peru, Egypt, Indonesia, Brazil, Spain, USA, Canada, Ukraine, Singapore, Thailand, Oman, Ireland, Korea, Iran, India, Dubai

Material & Grades of Tongue and Groove Flanges

Stainless Steel Tongue & Groove Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Tongue & Groove Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Tongue & Groove Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Tongue & Groove Flanges : ASTM A350, LF2, LF3

Alloy Steel Tongue & Groove Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Tongue & Groove Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Tongue & Groove Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Stockist of Stainless Steel Tongue and Groove Flanges in Abu Dhabi, ANSI B16.5 Tongue and Groove Flanges, Groove Type Flange, Large Groove Flange in Dubai, UAE.

Tongue and Groove Flanges Available Types

Tongue & Groove Flange	Groove & Tongue Flanges
ANSI B16.5 Tongue & Groove Flanges	Tongue & Groove Flange Dimensions
ASME B16.5 Tongue & Groove Flanges	ANSI B16.5 Class 150 Tongue & Groove Flanges
Stainless Steel Tongue & Groove Flanges Suppliers	SS Groove & Tongue Flange
Tongue & Groove Flanges Dealer	ASME B16.47 Series A and B Tongue & Groove Flanges Exporter
ANSI B16.5 class 150 Tongue & Groove Flange Stockholder	ANSI 150 Tongue & Groove Flange Distributors
Carbon Steel Groove & Tongue Flange	High Quality Tongue & Groove Flanges Manufacturer
ASTM A182 Stainless Steel Tongue & Groove Flange	Duplex Steel Tongue & Groove Flange
Super Duplex Steel Tongue & Groove Flange	Copper Nickel Tongue & Groove Pipe Flanges
High Nickel Alloy Groove & Tongue Flanges	Hastelloy Tongue & Groove Flanges Stockist
Titanium ASME B16.47 Series A and B Tongue & Groove Flanges	Inconel Tongue & Groove Flanges

Top Tongue and Groove Flanges Manufacturing Company in Dubai

At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These Tongue and Groove Flanges as per DIN, ISO, JIS or ANSI Standard.

Nickel Alloy 200 Tongue and Groove Flange in UAE, ASTM A182 Ss Tongue and Groove Flange, Alloy Steel Tongue and Groove Flanges in Dubai, UAE.

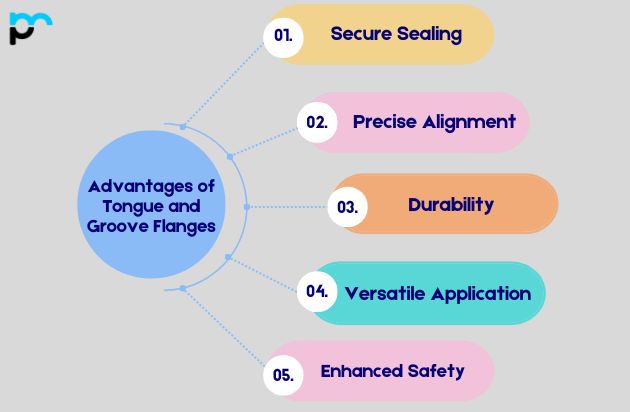

Advantages of Tongue and Groove Flanges

Secure Sealing: The unique tongue and groove design ensures a tight and leak-proof seal, making T&G flanges ideal for high-pressure and high-temperature applications where maintaining a secure connection is crucial.
Precise Alignment: The interlocking nature of the tongue and groove mechanism provides precise alignment during installation, reducing the risk of misalignment and enhancing the overall stability of the piping system.
Durability: Constructed from robust materials such as carbon steel, stainless steel, and steel alloys, T&G flanges offer exceptional strength and durability, ensuring long-term reliability even under challenging conditions.
Versatile Application: T&G flanges are suitable for a wide range of industries, including power generation, oil, gas, and chemical sectors, due to their ability to handle varying pressure and temperature conditions effectively.
Enhanced Safety: The secure and reliable connection provided by T&G flanges contributes significantly to the safety of the pipeline system, minimizing the risk of leaks and ensuring efficient operation even in demanding environments.

Types of Tongue and Groove Flanges

ASME B16.47 Series A And B Tongue and Groove Flanges in UAE, Manufacturer of Tongue and Groove Tongue and Groove Flanges in Dubai, UAE.

Application Industry

Since Tongue and Groove Flanges have excellent mechanical qualities and are resistant to wear corrosion, and high temperatures, they are widely used in various industries. These flanges are widely used in the oil and gas, petrochemical, power generation, and aerospace industries. They play an important part in joining equipment, valves, and pipe systems. They are perfect for applications exposed to severe operating conditions, such as high temperatures, high pressures, and corrosive environments, because of their exceptional strength, toughness, and wear resistance.

Oil & Gas Industry

Aerospace Industry

Petro Chemical Industry

Power Generation Industry

Can Tongue and Groove Flanges be Recycled after use?

Yes, Tongue and Groove (T&G) flanges can be recycled after use. Made from recyclable materials like carbon steel, stainless steel, and steel alloys, these flanges can be melted down and reused in new manufacturing processes. Recycling T&G flanges helps conserve natural resources, reduce environmental impact, and promote sustainable practices in the industry. By recycling these materials, the need for new raw materials is minimized, contributing to a more eco-friendly and efficient production cycle.
