| Specifications | ASTM B166 / ASME SB166 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Inconel 718 Fasteners as per DIN, ISO, JIS or ANSI Standard.

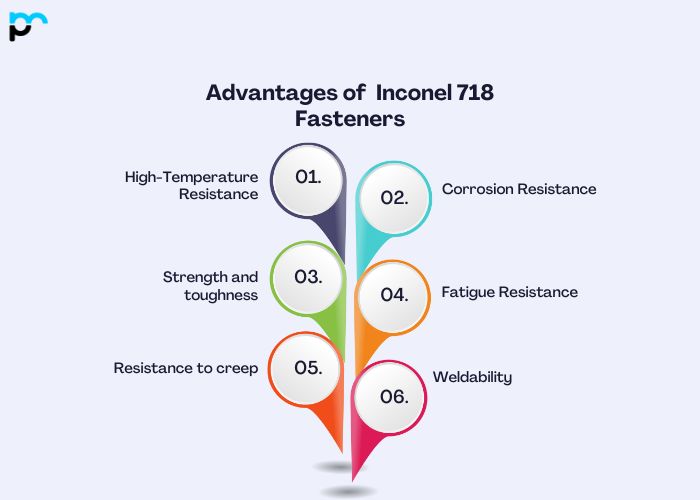

High-Temperature Resistance: Inconel 718 has a high mechanical temperature, making it suitable for applications where fasteners are placed in high-temperature environments, such as aerospace and gas turbine engines.
Corrosion Resistance: This alloy provides excellent resistance to corrosion and oxidation even in harsh environments like salt water, chemical reactions, acidic environments, etc. This corrosion resistance ensures fasteners’ longevity and reliability in corrosive environments.
Strength and toughness: Inconel 718 exhibits superior strength and toughness over a wide temperature range. This allows fasteners to withstand heavy loads, vibration and shock without damage or failure, ensuring structural integrity and safety during critical applications.
Fatigue Resistance: The fatigue resistance of Inconel 718 is exceptional, making it suitable for applications where fasteners are subjected to prolonged cyclic loads or stresses. This property ensures long service life and reliability under harsh conditions.
Resistance to creep: Inconel 718 exhibits resistance to creep deformation under high stress and temperature conditions, which is important for fasteners in applications with prolonged sustained loads, such as in power generation and aerospace.
Inconel 718 Fasteners manufactured by reputable companies find widespread industrial use across various sectors. These fasteners, crafted from Inconel Fasteners , are prized for their exceptional corrosion resistance, making them a preferred choice for applications exposed to harsh environments, especially marine and offshore settings. Industries such as shipbuilding, offshore oil and gas, chemical processing, power generation, and desalination plants rely on Inconel fasteners for their reliability and longevity.
Aerospace Applications: Inconel 718 fasteners are widely used in aerospace applications due to their high strength, corrosion resistance and ability to withstand extreme temperatures. They are used in aircraft engines, gas turbine components and structural assemblies.
Gas Turbine Engines: Inconel 718 fasteners are commonly used in gas turbine engines, including aircraft and industrial gas turbines. It is used in critical areas such as turbine blades, wheels, and compressor parts where high strength and hot air resistance are required.
Oil and Gas Industry: Inconel 718 fasteners find applications in the oil and gas sector, especially in equipment subjected to high temperature, pressure and atmospheric corrosion and used in downhole drilling equipment, wellhead components and valves.
Power performance: Inconel 718 fasteners are used in electrical equipment such as steam turbines, where they provide excellent strength and corrosion resistance at high temperatures and pressures
Chemical applications: Inconel 718 fasteners are suitable for chemical applications requiring resistance to acids, bases, and other harsh chemicals. They are used in reactors, vessels, and piping systems.
Automotive Industry: Inconel 718 fasteners are used in high-performance automotive engines where strength, heat resistance and durability are important, such as turbochargers, exhaust systems and engine components in racing and sports cars.
Application Requirements: Understand the application’s environmental conditions, including temperature, pressure, corrosion, and stress levels. Inconel 718 is known for its superior thermal stability and corrosion resistance, making it suitable for harsh environmental conditions.
Variety: Inconel 718 is available in various grades, each with different technical characteristics. Be sure to choose the grade that best suits your application needs regarding strength, toughness, and environmental resistance.
Fastener Type: Specify the type of fastener required for your application, such as bolts, nuts, screws, or studs. When choosing the type of fastener, consider factors such as load potential, joint configuration, and accessibility.
Size and Dimensions: Select the appropriate fastener size and dimensions based on your application needs, including thread size, length, thickness and head style
Corrosion Resistance: Inconel 718 is highly resistant to corrosion and oxidation, making it suitable for use in harsh environments such as marine, aerospace, chemical processing, etc. Checking if the fasteners have corrosion resistance is important for your particular application.
Thermal resistance: Consider the thermal properties of packaging materials and ensure they can withstand heat treatment without compromising their mechanical properties.
