Home > Copper Nickel > Copper Ball Valves

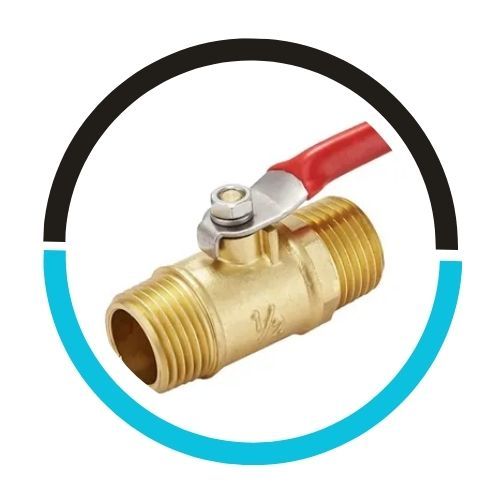

Copper Ball Valves are essential components in various plumbing, HVAC, and industrial systems, known for their durability, reliability, and resistance to corrosion. These valves provide precise flow control and are easy to operate, making them ideal for both residential and commercial applications. Available in various sizes and configurations, copper ball valves ensure efficient and leak-free performance, making them a preferred choice for professionals and DIY enthusiasts alike.
| Material | Copper | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seal Material | PTFE/ RPTFE | ||||||||||||||||||||||||||
| Working Pressure | 1.6 – 6.4Mpa | ||||||||||||||||||||||||||
| Working Temperature | -29°C — +180°C | ||||||||||||||||||||||||||
| Availabe Size | 1/2″-4″,(DN15-DN100) | ||||||||||||||||||||||||||
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded | ||||||||||||||||||||||||||
| Nominal Pressure | P10/PN16 | ||||||||||||||||||||||||||
| Operation | Manual,Pneumatic, Electric | ||||||||||||||||||||||||||
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc | ||||||||||||||||||||||||||
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 | ||||||||||||||||||||||||||
| Applications | Water, Oil, Gas, | ||||||||||||||||||||||||||
| Nominal Diameter | DN40-DN300 handle lever DN350-DN1200 gear box | ||||||||||||||||||||||||||
| Operation Temperature | -10°C~150°C
|
| Material designation | COMPOSITION % | |||||||||
| Element | Cu | Ag | Bi | O | P | Pb | Other elements (see note) | |||
| Symbol | Number | Total | Excluding | |||||||
| Cu-ETP | CW004A | min. max. | 99,90(1), – | -, – | – 0,0005 | – 0,040(2) | -, – | – 0,005 | – 0,03 | Ag. O |
| Cu-FRHC | CW005A | min. max. | 99,90(1), – | -, – | -, – | – 0,040(2) | -, – | -, – | – 0,04 | Ag. O |
| Cu-OF | CW008A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | -, – | – 0,005 | – 0,03 | Ag. |
| CuAg 0,04 | CW0011A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,07 | CW0012A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,10 | CW0013A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,04P | CW0014A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – , -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,07P | CW0015A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | -, -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,10P | CW0016A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | – , -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,04(OF) | CW0017A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – , -(3) | -, – | -, – | – 0,0065 | Ag. O |
| CuAg 0,07(OF) | CW0018A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | – , -(3) | -, – | -, – | – 0,0065 | Ag. O |
| CuAg 0,10(OF) | CW0019A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | -, -(3) | -, – | -, – | – 0,0065 | Ag. O |
| Cu-PHC | CW0020A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | 0,001 0,006 | – 0,005 | – 0,03 | Ag. P |
| Cu-HCP | CW0021A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | 0,002 0,007 | – 0,005 | – 0,03 | Ag. P |
At PipingMart, we take pride in being the largest supplier and manufacturer in the UAE, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UAE, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.
Contact us to get a quick quote for your requirement.
We offer These Copper Ball Valves as per DIN, ISO, JIS or ANSI Standard.
Copper Ball Valves applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, copper ball valves are suitable for high-temperature applications. Copper has excellent thermal conductivity and can withstand high temperatures without losing strength or integrity. This makes copper ball valves ideal for use in systems that involve hot water, steam, or other high-temperature fluids, such as in HVAC, industrial, and plumbing applications. However, it’s essential to check the specific temperature ratings provided by the manufacturer to ensure compatibility with your application.
